MCB 1P+N 6kA C-16A 1M MLN716A

Name: MLN716A
Brand: Hager
SKU: MLN716A

EAN

3250614320996

Packaging

12 Pieces

Accessories
Technical properties
Environmental value
Documentations
More products

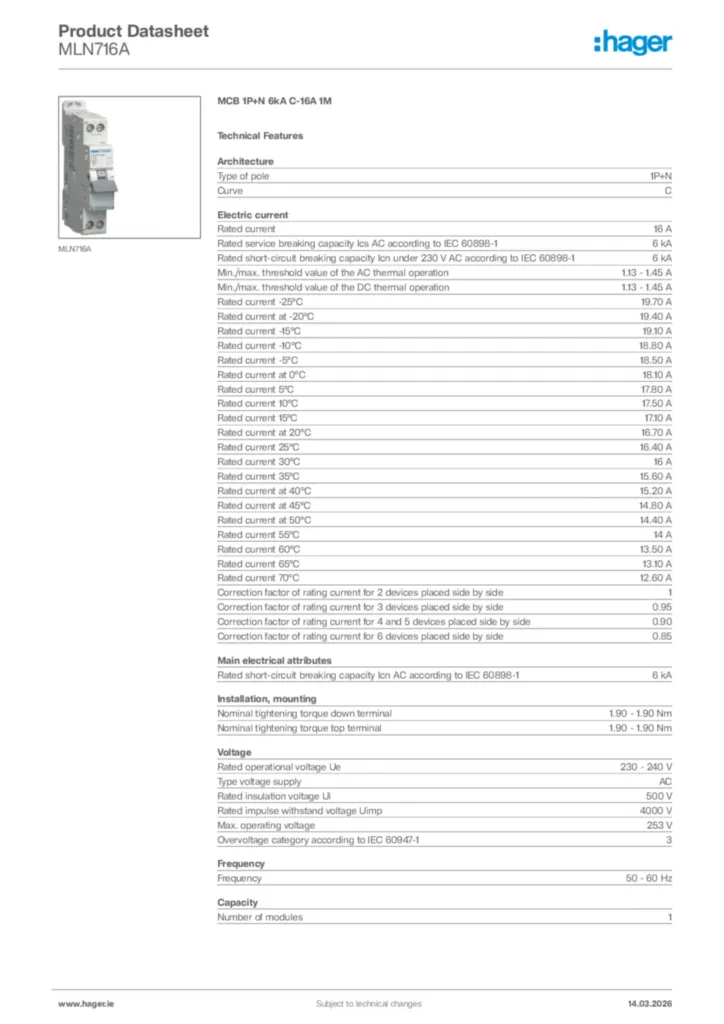

Download the data sheet

Complete your system

Optional accessories

Mechanic accessories for low-voltage components 1 products available
Auxiliaries contact block 2 products available
Shunt release 1 products available
Under voltage coil 1 products available
Locking interlocking functions 1 products available
See more 2 other products available

Technical properties

Type of pole

1P+N
Curve

C

Rated current

16 A
Rated service breaking capacity Ics AC according to IEC 60898-1

6 kA
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

6 kA
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Min./max. threshold value of the DC thermal operation

1.13 - 1.45 A
Rated current -25°C

19.70 A
Rated current at -20°C

19.40 A
Rated current -15°C

19.10 A
Rated current -10°C

18.80 A
Rated current -5°C

18.50 A
Rated current at 0°C

18.10 A
Rated current 5°C

17.80 A
Rated current 10°C

17.50 A
Rated current 15°C

17.10 A
Rated current at 20°C

16.70 A
Rated current 25°C

16.40 A
Rated current 30°C

16 A
Rated current 35°C

15.60 A
Rated current at 40°C

15.20 A
Rated current at 45°C

14.80 A
Rated current at 50°C

14.40 A
Rated current 55°C

14 A
Rated current 60°C

13.50 A
Rated current 65°C

13.10 A
Rated current 70°C

12.60 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0.95
Correction factor of rating current for 4 and 5 devices placed side by side

0.90
Correction factor of rating current for 6 devices placed side by side

0.85

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA
Nominal tightening torque down terminal

1.90 - 1.90 Nm
Nominal tightening torque top terminal

1.90 - 1.90 Nm

Rated operational voltage Ue

230 - 240 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

253 V
Overvoltage category according to IEC 60947-1

3

Frequency

50 - 60 Hz

Number of modules

1

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal
Nominal tightening torque

1.90 - 1.90 Nm

Total power loss under IN

4.40 W

Operating temperature

-25 - 70 °C
Max. Altitude

2,000 m

Electric endurance in number of cycles

1,000
Number of mechanical operations

20,000

Ingress Protection (IP) class

IP20

Type of connection

Screw terminal
Top connection alignment for modular devices

Shifted terminal
Down connection alignment for modular devices

Shifted terminal

Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²

Height

84.70 mm
Width

17.50 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
