MCB 1P+N 6kA C-6A 1M MLN706A

EAN
3250614320965
Packaging
12 Pieces

You have to log in with your myHager profile to see prices and to order.

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.

MCB 1P+N 6kA C-6A 1M

MLN706A

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
Download the data sheet

Complete your system

Optional accessories

  • Locking inter­locking func­tions 1 products available
  • Mech­anic accessories for low-voltage compon­ents 1 products available
  • Shunt release 1 products available
  • Auxil­i­aries contact block 2 products available
  • Modular phase busbar 2 products available

Complete your system

  • Locking inter­locking func­tions
  • Mech­anic accessories for low-voltage compon­ents
  • Shunt release
  • Auxil­i­aries contact block
  • Modular phase busbar
  • MZN175

    Padlockable locking kit for MCB, RCCB and RCBO
    0.00 €  / *
  • LZ060

    Heat dissipation insert
    0.00 €  / *
  • MZ203

    Shunt trip 230-415V AC 110-130V DC
    0.00 €  / *
  • MZ202

    Alarm contact 1C+1O 6A 240V AC
    0.00 €  / *
  • MZ201

    Auxiliary contact 1C+1O 6A 240V AC
    0.00 €  / *
  • KB163P

    Insulated busbar 1P 63A prong 10mm² brown 13M
    0.00 €  / *
  • KBN663C

    Insulated busbar3P+N 63A prong 10mm² 48C for MCB 1P+N 1 module
    0.00 €  / *

Technical properties

Archi­tec­ture
  • Type of pole
    1P+N
  • Curve
    C
Elec­tric current
  • Rated current
    6 A
  • Rated service breaking capa­city Ics AC according to IEC 60898-1
    6 kA
  • Rated short-­cir­cuit breaking capa­city Icn under 230 V AC according to IEC 60898-1
    6 kA
  • Min./max. threshold value of the AC thermal oper­a­tion
    1.13 - 1.45 A
  • Min./max. threshold value of the DC thermal oper­a­tion
    1.13 - 1.45 A
  • Rated current -25°C
    7.80 A
  • Rated current at -20°C
    7.60 A
  • Rated current -15°C
    7.50 A
  • Rated current -10°C
    7.30 A
  • Rated current -5°C
    7.20 A
  • Rated current at 0°C
    7 A
  • Rated current 5°C
    6.90 A
  • Rated current 10°C
    6.70 A
  • Rated current 15°C
    6.50 A
  • Rated current at 20°C
    6.40 A
  • Rated current 25°C
    6.20 A
  • Rated current 30°C
    6 A
  • Rated current 35°C
    5.80 A
  • Rated current at 40°C
    5.60 A
  • Rated current at 45°C
    5.40 A
  • Rated current at 50°C
    5.20 A
  • Rated current 55°C
    5 A
  • Rated current 60°C
    4.80 A
  • Rated current 65°C
    4.50 A
  • Rated current 70°C
    4.30 A
  • Correc­tion factor of rating current for 2 devices placed side by side
    1
  • Correc­tion factor of rating current for 3 devices placed side by side
    0.95
  • Correc­tion factor of rating current for 4 and 5 devices placed side by side
    0.90
  • Correc­tion factor of rating current for 6 devices placed side by side
    0.85
Install­a­tion, mounting
  • Nominal tight­ening torque down terminal
    1.90 - 1.90 Nm
  • Nominal tight­ening torque top terminal
    1.90 - 1.90 Nm
  • Type of top connec­tion for modular devices
    Screw terminal
  • Type of bottom connec­tion for modular devices
    Screw terminal
  • Nominal tight­ening torque
    1.90 - 1.90 Nm
Main elec­trical attrib­utes
  • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
    6 kA
Voltage
  • Rated oper­a­tional voltage Ue
    230 - 240 V
  • Type voltage supply
    AC
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    4,000 V
  • Max. oper­ating voltage
    253 V
  • Overvoltage category according to IEC 60947-1
    3
Frequency
  • Frequency
    50 - 60 Hz
Capa­city
  • Number of modules
    1
Power
  • Total power loss under IN
    1.30 W
Use condi­tions
  • Oper­ating temper­ature
    -25 - 70 °C
  • Max. Alti­tude
    2,000 m
Endur­ance
  • Elec­tric endur­ance in number of cycles
    1,000
  • Number of mech­an­ical oper­a­tions
    20,000
Safety
  • Ingress Protec­tion (IP) class
    IP20
Connectivity
  • Type of connec­tion
    Screw terminal
  • Top connec­tion align­ment for modular devices
    Shifted terminal
  • Down connec­tion align­ment for modular devices
    Shifted terminal
Connec­tion
  • Cross-sec­tion of input with screws, for massive conductors
    1 - 25 mm²
  • Cross-sec­tion of input with screws, for flex­ible conductors
    1 - 16 mm²
Dimen­sions
  • Height
    84.70 mm
  • Width
    17.50 mm
  • Depth
    70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes

Certifications and documents

MCB 1P 6kA B-16A, 1 module
PDF
67,85 MB
Hager REACH declaration MLN706A
PDF
Hager RoHS report MLN706A
PDF

Downloads

  • Product image

    Image MLN706A | Hager

    Product Image MLN706A

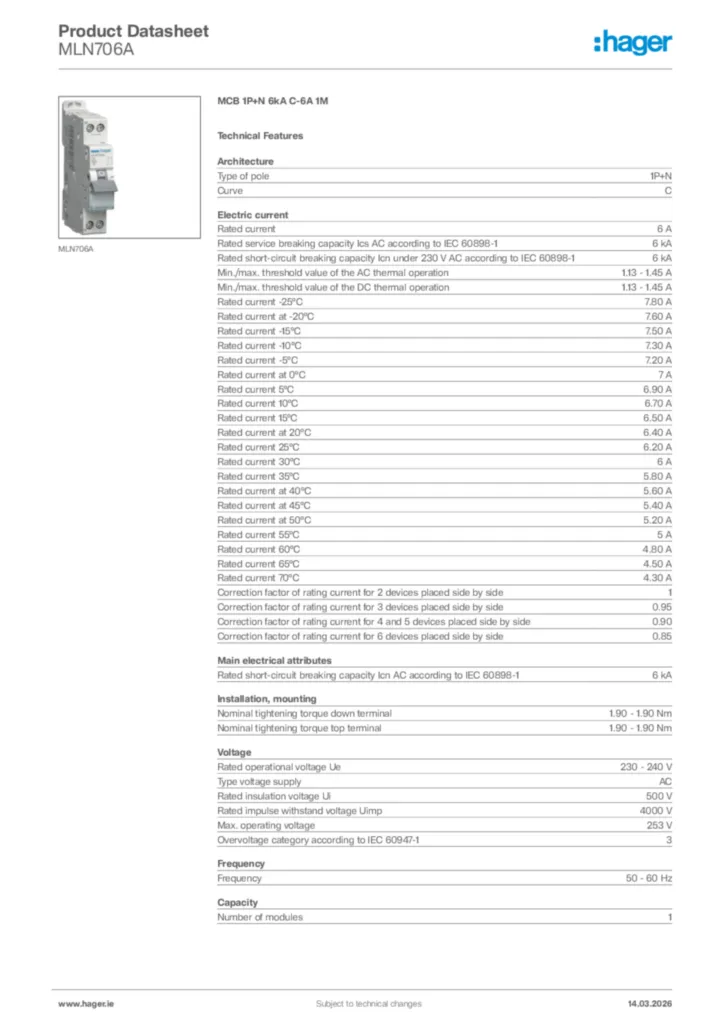

  • Product datasheet
