    EAN
    3250613741006
    Packaging
    50 Pieces
    • LS, FI, FI-LS, AFDD accessories
    • Busbar
    • See more

    Insulated busbar 3P 80A fork 16mm² 12M KDN380A

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Insulated busbar 3P 80A fork 16mm² 12M

    KDN380A

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Protective cap/strip for phase busbar 1 products available

    Compatible products

    • Referenced by 43 products available

    Complete your system

    • Protective cap/strip for phase busbar
    • KZ059

      Protective cover fork KDN & KDS
      0.00 €  / *

    Referenced by

    • NDN363A

      MCB 3P 10kA/15kA D-63A 3M
      0.00 €  / *
    • NBN363A

      MCB 3P 10kA/15kA B-63A 3M
      0.00 €  / *
    • NBN310A

      MCB 3P 10kA/15kA B-10A 3M
      0.00 €  / *
    • NDN310A

      MCB 3P 10kA/15kA D-10A 3M
      0.00 €  / *
    • NDN350A

      MCB 3P 10kA/15kA D-50A 3M
      0.00 €  / *
    • NCN304A

      MCB 3P 10kA/15kA C-4A 3M
      0.00 €  / *
    • NDN302A

      MCB 3P 10kA/15kA D-2A 3M
      0.00 €  / *
    • NDN304A

      MCB 3P 10kA/15kA D-4A 3M
      0.00 €  / *
    • MBN363A

      MCB 3P 6kA B-63A 3M
      0.00 €  / *
    • NBN350A

      MCB 3P 10kA/15kA B-50A 3M
      0.00 €  / *
    • NBN325A

      MCB 3P 10kA/15kA B-25A 3M
      0.00 €  / *
    • NDN340A

      MCB 3P 10kA/15kA D-40A 3M
      0.00 €  / *
    • NDN320A

      MCB 3P 10kA/15kA D-20A 3M
      0.00 €  / *
    • NCN350A

      MCB 3P 10kA/15kA C-50A 3M
      0.00 €  / *
    • NBN306A

      MCB 3P 10kA/15kA B-6A 3M
      0.00 €  / *
    • NCN363A

      MCB 3P 10kA/15kA C-63A 3M
      0.00 €  / *
    • NCN306A

      MCB 3P 10kA/15kA C-6A 3M
      0.00 €  / *
    • NCN302A

      MCB 3P 10kA/15kA C-2A 3M
      0.00 €  / *
    • NDN306A

      MCB 3P 10kA/15kA D-6A 3M
      0.00 €  / *
    • NCN340A

      MCB 3P 10kA/15kA C-40A 3M
      0.00 €  / *

    Technical properties

    Elec­tric current
    • Rated current
      80 A
    Archi­tec­ture
    • Number of poles
      3
    Dimen­sions
    • Length
      210 mm
    Voltage
    • Rated impulse with­stand voltage Uimp
      4,500 V
    • Rated oper­a­tional voltage Ue
      230 - 400 V
    Connec­tion
    • Cross-sec­tion rigid conductor
      16 mm²
    • Connect­or/plug type
      Phase busbar with fork
    Capa­city
    • Number of modules
      12

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    Insulated busbar 3P 63A fork 10mm² 12M
    PDF
    470,84 kB
    Hager REACH declaration KDN380A
    PDF
    Hager RoHS report KDN380A
    PDF

    Downloads

    • Product image

      Image KDN380A | Hager

      Product Image KDN380A

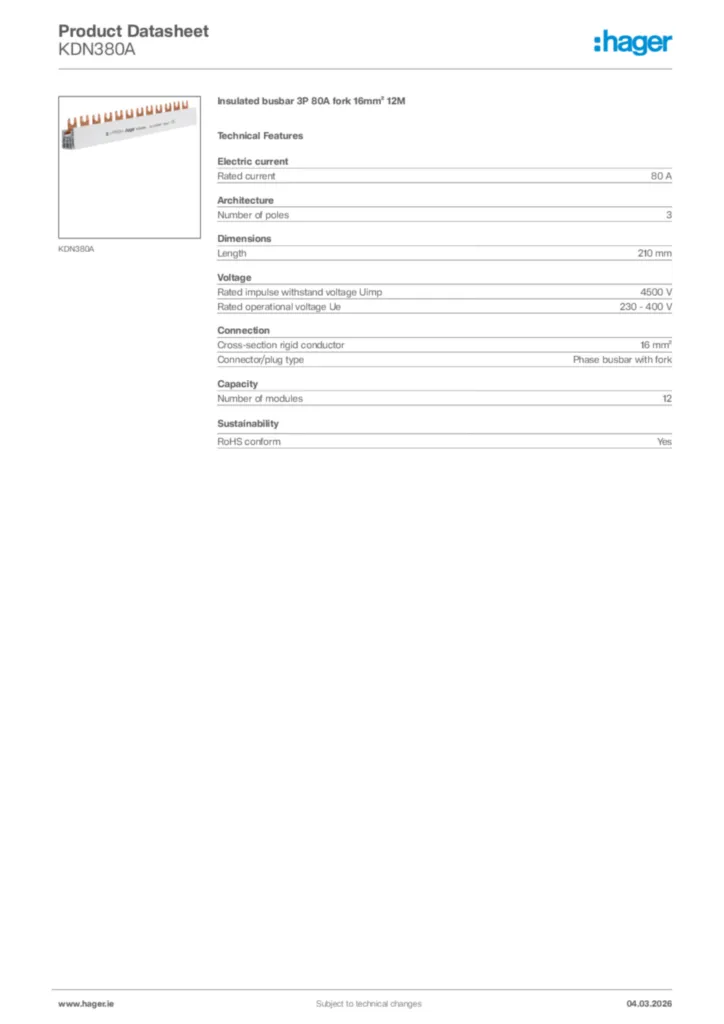

    • Product datasheet

      Image Hager Product data sheet KDN380A | Hager

      Hager Product data sheet KDN380A

      Insulated busbar 3P 80A fork 16mm² 12M

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2026-01-12 | Hager

      Declaration of conformity en-GB 2026-01-12

      PDF
      364,15 kB
      Image Declaration of conformity en-GB 2026-01-12 | Hager

      Declaration of conformity en-GB 2026-01-12

      PDF
      386,96 kB
    More documentation

    Discover more of this product range

      5
    • 1
      KB463A - Insulated busbar 3P+N 63A prong 10mm² 12M
      KB463A
      Insulated busbar 3P+N 63A prong 10mm² 12M
    • 2
      KZN024 - Endcap for busbar KDN 4 poles
      KZN024
      Endcap for busbar KDN 4 poles
    • 3
      KDN263AZS - 10mod Busbar 2P with 1mod space with auxiliary (Aux1/2mod- LN-space)
      KDN263AZS
      10mod Busbar 2P with 1mod space with auxiliary (Aux1/2mod- LN-space)
    • 4
      KDN463BZ - 24mod Busbar 3P+N with 1mod space (L1N+L2N+L3N+1modspace)
      KDN463BZ
      24mod Busbar 3P+N with 1mod space (L1N+L2N+L3N+1modspace)
    • 5
      KBN663C - Insulated busbar3P+N 63A prong 10mm² 48C for MCB 1P+N 1 module
      KBN663C
      Insulated busbar3P+N 63A prong 10mm² 48C for MCB 1P+N 1 module
