    EAN
    5015654754983
    Packaging
    1 Piece
    • Invicta Panel­boards

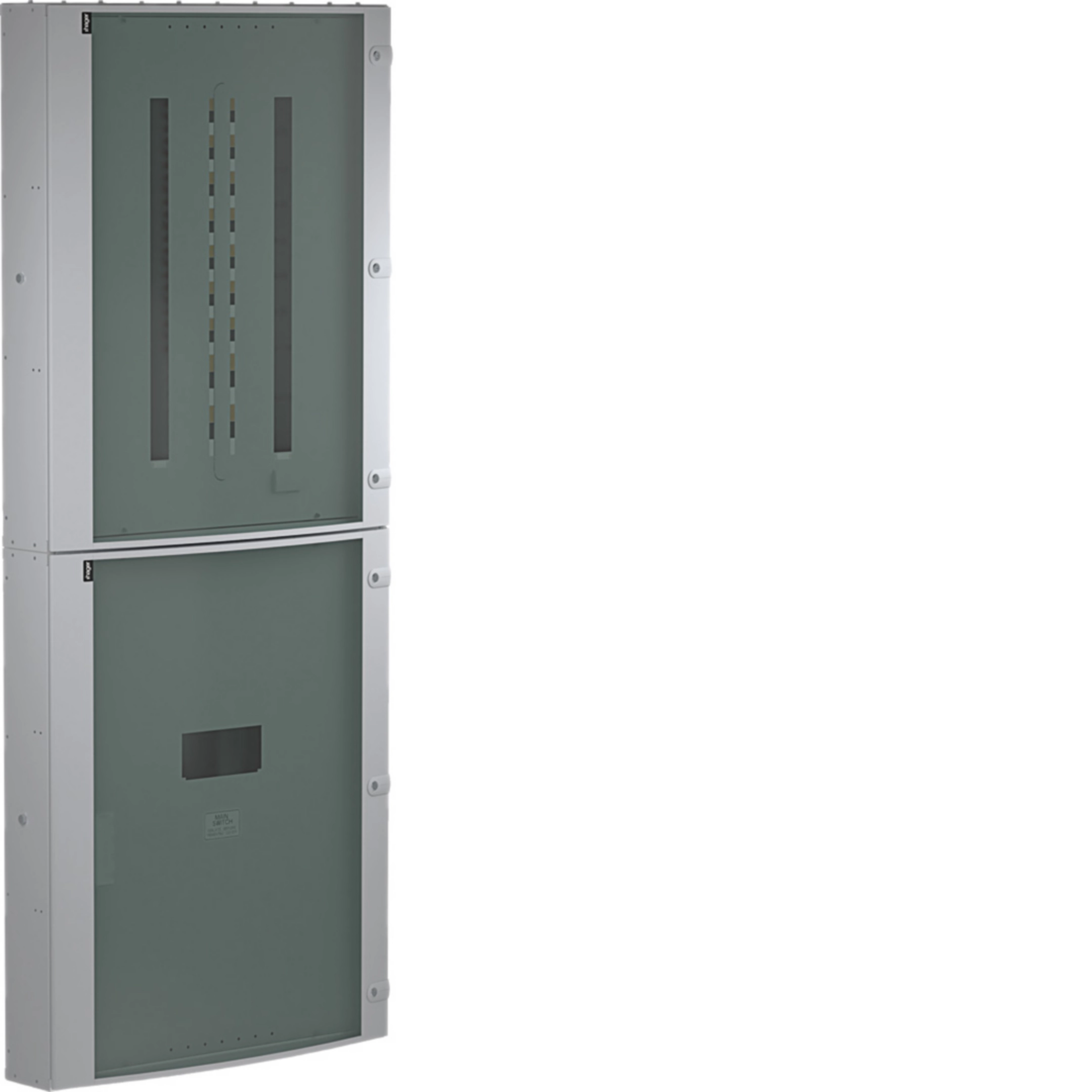

    800A 18 Way Panelboard 4*250A + 14*125A Glazed Door JHF80414BG

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    800A 18 Way Panelboard 4*250A + 14*125A Glazed Door

    JHF80414BG

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Distrib­utor assembly with main switch 1 products available
    • Blanking plate for enclosure 1 products available
    • Insert for lock system 1 products available
    • Switch discon­nector AC 1 products available
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy 1 products available
    • Gland plate for enclosure 1 products available

    Complete your system

    • Distrib­utor assembly with main switch
    • Blanking plate for enclosure
    • Insert for lock system
    • Switch discon­nector AC
    • Accessor­ies/s­pare parts for low-voltage switch tech­no­logy
    • Gland plate for enclosure

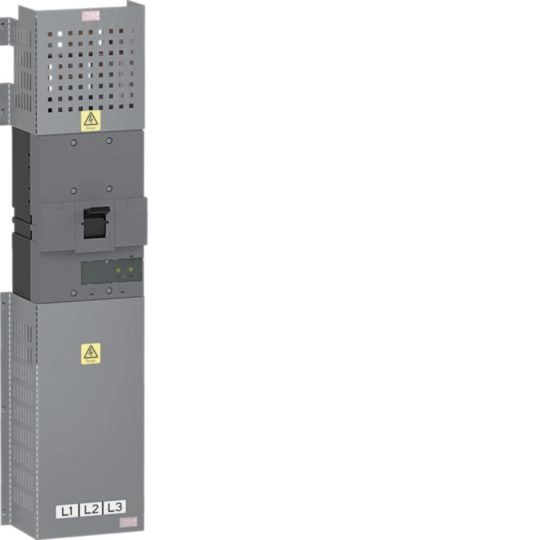

    • JHF883BM

      800A 3 Pole MCCB Incomer Kit
      0.00 €  / *
    • JF003BP

      3 Pole Blanking Plate 250A Frame
      0.00 €  / *
    • JK222PK

      JK1/JK2 Door Lock Kit
      0.00 €  / *
    • JAB410B

      Enclosed Switch Disconnector TPSN 100A
      0.00 €  / *
    • JN001BP

      Single Pole Blank 125A Frame
      0.00 €  / *
    • JFPLATE

      Spare Endplate for JF boards
      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of access­ible phases
      3
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      800 A
    Equip­ment
    • With lock
      Yes
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    Capa­city
    • Number of modules
      18
    Dimen­sions
    • Height
      2,200 mm
    • Width
      900 mm
    • Depth
      220 mm
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      Yes
    Mater­ials
    • Material
      Steel
    • RAL code
      7035
    • Colour
      Light grey
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Ingress Protec­tion (IP) class
      IP2XC
    • Locking type
      Quarter turn lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - JK1 32 Module DIN Rail Box Glazed (English)
    PDF
    5,81 MB
    Hager REACH declaration JHF80414BG
    PDF
    Hager RoHS report JHF80414BG
    PDF

    Downloads

    • Product image

      Image JHF80414BG | Hager

      Product Image JHF80414BG

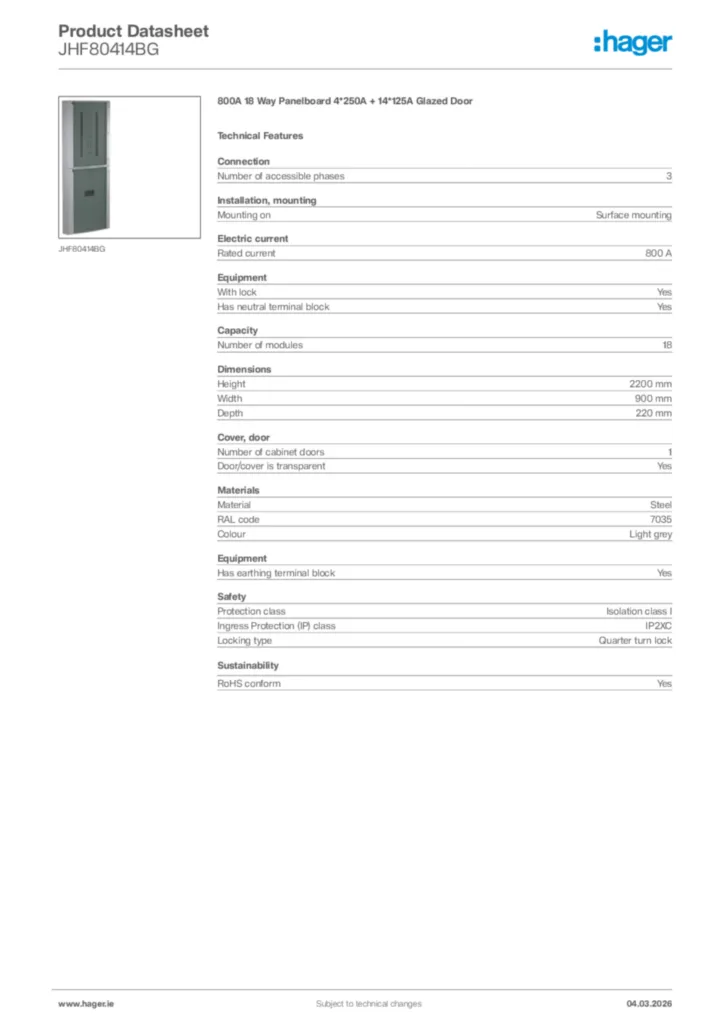

    • Product datasheet

      Image Hager Product data sheet JHF80414BG | Hager

      Hager Product data sheet JHF80414BG

      800A 18 Way Panelboard 4*250A + 14*125A Glazed Door

      PDF

    • BIM Revit objects

      Image Panelboard Invicta 3 (800A Inc 125A - 250 Out) -Revit Family 2020 hosted-V2021 | Hager

      Panelboard Invicta 3 (800A Inc 125A - 250 Out) -Revit Family 2020 hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,11 MB
      Image Panelboard Invicta 3 (800A Inc 125A - 250 Out) -Revit Family 2020 no hosted-V2021 | Hager

      Panelboard Invicta 3 (800A Inc 125A - 250 Out) -Revit Family 2020 no hosted-V2021

      BIM Revit objects en-GB 2020-01-01

      RFA
      1,10 MB
      Image Range:Panelboards-Enclosures_Surface_mounted-IP3X-With_Cover-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:Panelboards-Enclosures_Surface_mounted-IP3X-With_Cover-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,19 MB
      Image Range:Panelboards-Enclosures_Surface_mounted-IP3X-With_Cover-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:Panelboards-Enclosures_Surface_mounted-IP3X-With_Cover-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,18 MB
      Image Range : Panelboards. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Panelboards. Switchboard IP2XC. English - Hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,12 MB
      Image Range : Panelboards. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022 | Hager

      Range : Panelboards. Switchboard IP2XC. English - Non hosted family - REVIT Family 2020 - V2022

      BIM Revit objects en-GB 2024-03-22

      RFA
      1,11 MB

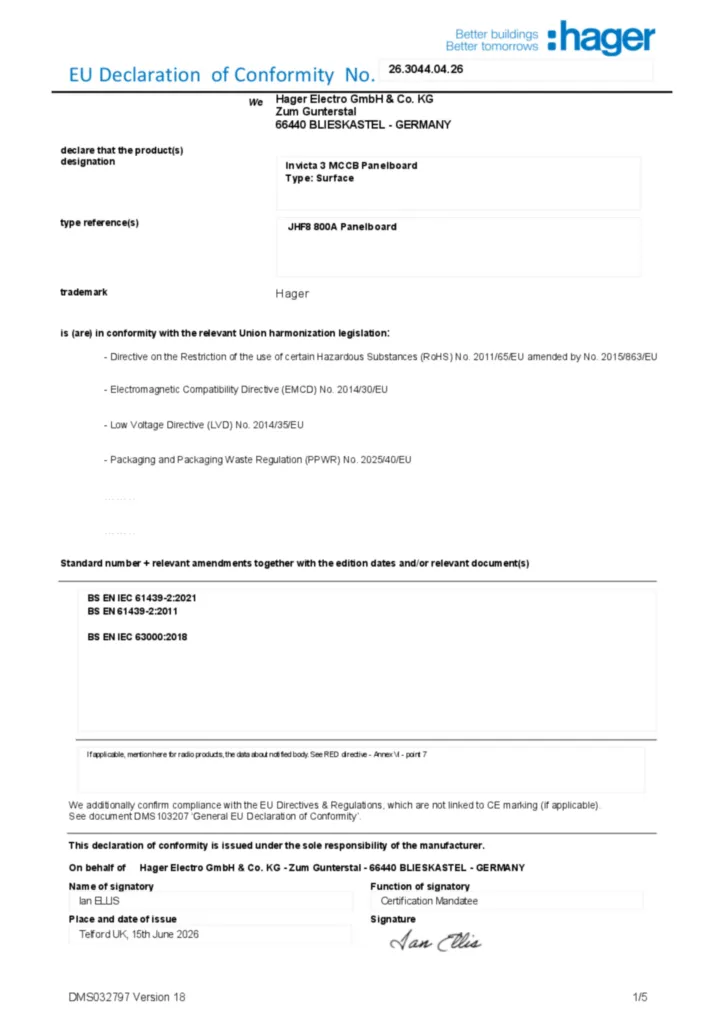

    • Declaration of conformity

      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      167,62 kB
      Image Declaration of conformity en-GB 2025-07-07 | Hager

      Declaration of conformity en-GB 2025-07-07

      PDF
      167,21 kB
