Obsolete

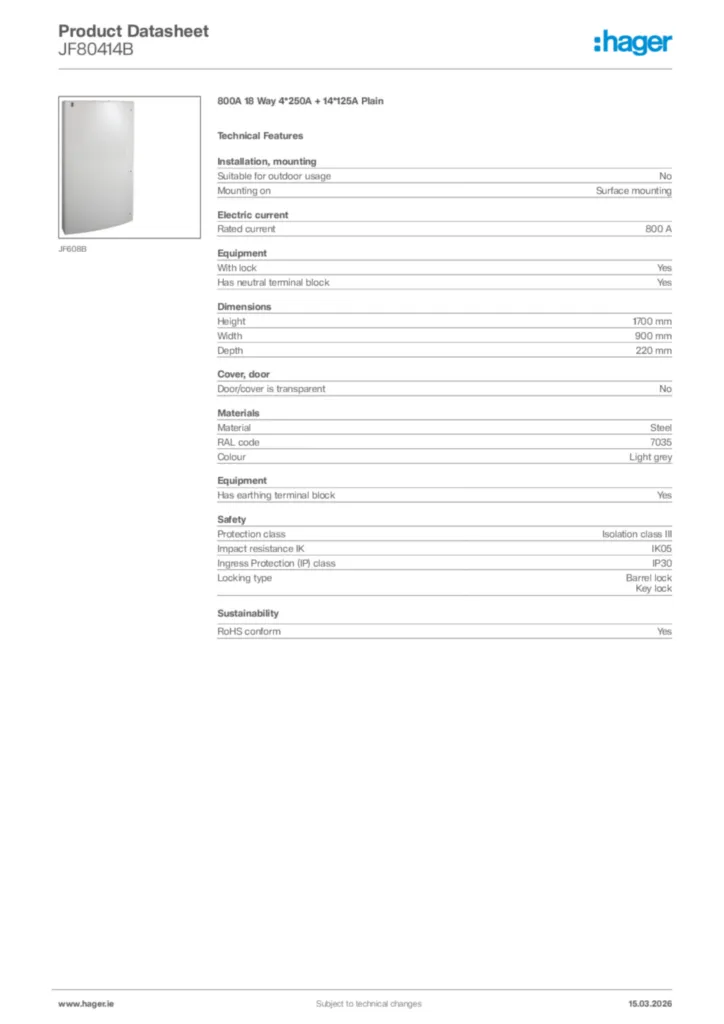

800A 18 Way 4*250A + 14*125A Plain JF80414B
EAN
5015652264019
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is now obsolete. However, this page remains available for information purposes. If you require any further information please contact the Technical Service Centre by email or on 01952 675689.
Complete your system
Optional accessories
-
Distributor assembly for device surface mounting 1 products available -
Gland plate for enclosure 1 products available -
Door/operating panel 2 products available -
Switch disconnector 1 products available -
Blanking plate for enclosure 1 products available -
See more 3 other products available
Complete your system
Technical properties
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onSurface mounting
Electric current
-
Rated current800 A
Equipment
-
With lockYes
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
Dimensions
-
Height1,700 mm
-
Width900 mm
-
Depth220 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class III
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP30
-
Locking typeBarrel lock, Key lock
Environmental value
