    EAN
    3250612735938
    Packaging
    1 Piece
    • FW/FWB surface enclos­ures

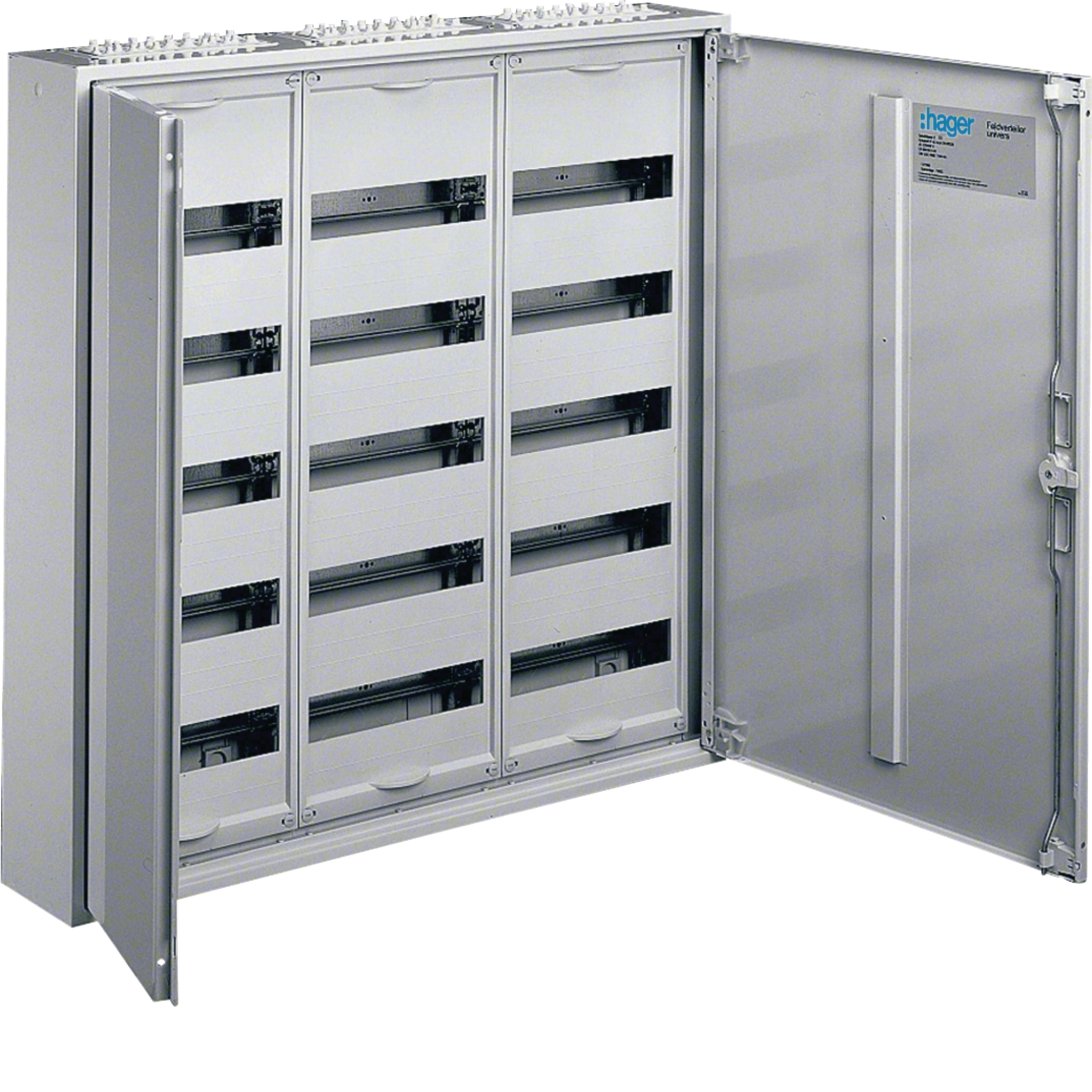

    FWB encl.,univers,5rows 180 mod cl.II IP44,plain door,800x800x161mm,brass term. FWB53

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    FWB encl.,univers,5rows 180 mod cl.II IP44,plain door,800x800x161mm,brass term.

    FWB53

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Lock system 4 products available
    • DIN rail 1 products available
    • Accessor­ies/s­pare parts for terminals 2 products available
    • Docu­ment holder 1 products available
    • Mounting accessories 1 products available
    • Cover strip 1 products available

    Complete your system

    • Lock system
    • DIN rail
    • Accessor­ies/s­pare parts for terminals
    • Docu­ment holder
    • Mounting accessories
    • Cover strip
    • FZ450N

      Lock, univers, triangular 7mm, with 1 key, for enclosure IP44/54
      €0.00  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54
      €0.00  / *
    • FZ835N

      Locking rods, univers, for IP54 closing, for use in enclosures height 800mm
      €0.00  / *
    • FZ534N

      Swing lever, univers, for profile cylinder 40mm, for enclosure IP44/54
      €0.00  / *
    • UN05A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 750mm, 2 pieces
      €0.00  / *
    • KN00A

      Terminal carrier, QC, universal adapter
      €0.00  / *
    • UZ00K1

      Connection support, univers, for DIN rail mounting of QuickConnect modules
      €0.00  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive
      €0.00  / *
    • FZ803B

      Mounting brackets, univers, for enclosure IP44/IP54, outside
      €0.00  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm
      €0.00  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      12
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      125 A
    Equip­ment
    • Number of rails
      15
    • Number of rows
      5
    • Number of section in width
      3
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      180
    Func­tions
    • Has protec­tion main switch
      No
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      800 mm
    • Width
      800 mm
    • Depth
      165 mm
    • Built-in height
      800 mm
    • Built-in width
      800 mm
    • Built-in depth
      161 mm
    • Number of width units
      36
    Cover, door
    • Number of cabinet doors
      2
    • Number of locks
      0
    • Type of handle
      Hinged pattern handle
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Double door, asymmetric
    Connectivity
    • Mounting type
      Surface mounting
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK09
    • Ingress Protec­tion (IP) class
      IP44
    • Locking type
      Bar lock, Without lock

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - FWB enclosure,UNIVERS range, 5-rows 180 modules (English)
    PDF
    3,70 MB
    REACH declaration FWB53
    PDF
    RoHS report FWB53
    PDF

    Downloads

    • Product image

      Image FWB53 | Hager

      Product Image FWB53

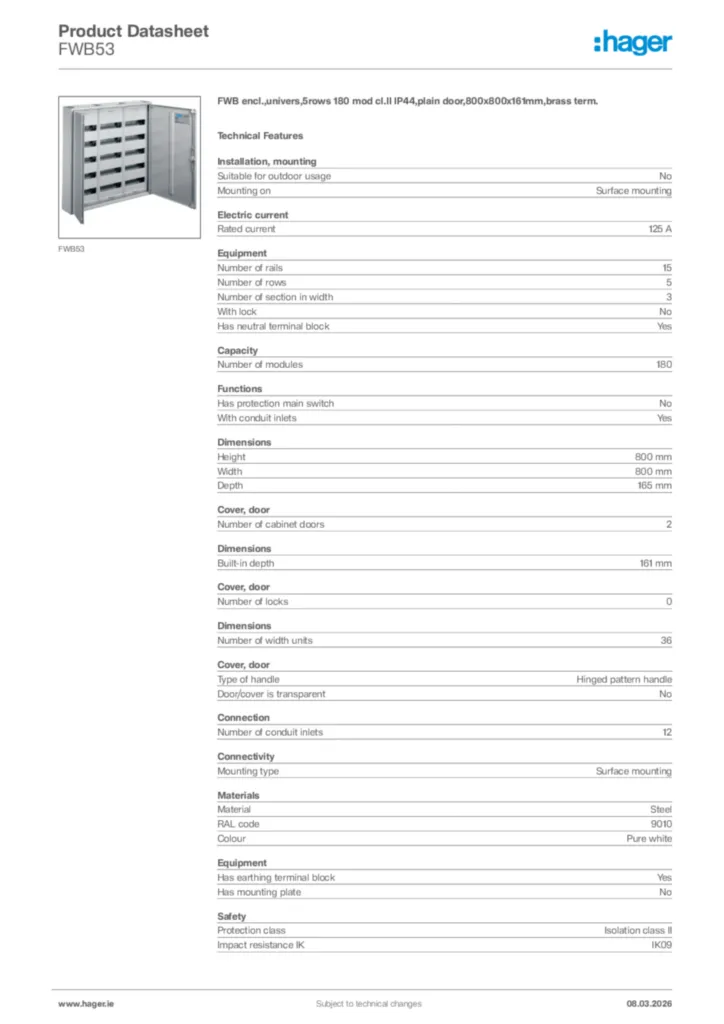

    • Product datasheet

      Image Hager Product data sheet FWB53 | Hager

      Hager Product data sheet FWB53

      FWB encl.,univers,5rows 180 mod cl.II IP44,plain door,800x800x161mm,brass term.

      PDF

    • Installation manual

      Image Installation manual International 2026-03-25 | Hager

      Installation manual International 2026-03-25

      PDF
      1,88 MB

    • BIM Revit objects

      Image Range:UNIVERS-Enclosures_Surface_mounted-IP44-With_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:UNIVERS-Enclosures_Surface_mounted-IP44-With_Cover-With_DIN-IE-EnglishFamily_Hosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,32 MB
      Image Range:UNIVERS-Enclosures_Surface_mounted-IP44-With_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025 | Hager

      Range:UNIVERS-Enclosures_Surface_mounted-IP44-With_Cover-With_DIN-IE-EnglishFamily_NoHosted-REVIT_Family_2023-Hager_Version_2025

      RFA
      1,33 MB

    • Handbook

      Image 6LE007924C_EN | Hager


      6LE007924C_EN

      Handbook en-GB 2026-05-13

      PDF
      34,45 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2023-05-12

      PDF
      332,34 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-08-29

      PDF
      143,25 kB
      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2022-03-09

      PDF
      1,44 MB
