FWB encl.,univers,4rows 48 mod cl.II IP44,plain door,650x300x161mm,brass term. FWB41

EAN
3250612735877
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

FWB encl.,univers,4rows 48 mod cl.II IP44,plain door,650x300x161mm,brass term.

FWB41

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • See more (44)
    • Built-in field for tele­commu­nic­a­tions 4 products available
    • Lock system 2 products available
    • Cover strip 1 products available
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards 2 products available
    • Compon­ents for wiring, cable entry and cable fixing 1 products available
    • Gland plate for enclosure 2 products available

    Complete your system

    • Built-in field for tele­commu­nic­a­tions
    • Lock system
    • Cover strip
    • Separ­a­tion plate for meter/dis­tri­bu­tion boards
    • Compon­ents for wiring, cable entry and cable fixing
    • Gland plate for enclosure
    • Accessor­ies/s­pare parts for terminals
    • Mounting accessories
    • Compon­ents for arrange­ment/baying system
    • Rail terminal bar
    • Mounting plate for distri­bu­tion board
    • Trans­ition cover section for install­a­tion duct
    • Labelling material
    • DIN rail
    • Docu­ment holder
    • Cover for distri­bu­tion board
    • Feed-­through terminal block
    • UN31TN

      Kit, univers FW, media with perforated mounting plate, 450x250mm

      0.00 €  / *
    • UN41TN

      Kit, univers FW, media with perforated mounting plate, 600x250mm

      0.00 €  / *
    • UN42TN

      Kit, univers FW, media with perforated mounting plate, 600x500mm

      0.00 €  / *
    • UN62TN

      Kit, univers FW, media with perforated mounting plate, 900x500mm

      0.00 €  / *
    • FZ597N

      Lock, univers, cylinder Nr.1242E, with 2 keys, for enclosure IP44/54

      0.00 €  / *
    • FZ824N

      Lock, univers, cylinder Nr.1242E with seal cover and 2 keys

      0.00 €  / *
    • S35S

      Cover strips, RAL 9010, breakable, 219 mm

      0.00 €  / *
    • UZ01F1

      Partition horizontal for FWB/FWQ surface encl., 1 section, screwable

      0.00 €  / *
    • UZ40F1

      Partition vertical for FWB/FWQ surface encl. 650mm high, screwable

      0.00 €  / *
    • FZ850S

      Cable strain relief rail, univers, 1 section, C-profile 30x15x100mm, slot 16mm

      0.00 €  / *
    • FZ428

      Cable entry plate, univers, for enclosure IP44 / IP54, back side, D160 / 205 mm

      0.00 €  / *
    • FZ425

      Cable entry plate, univers, for sealed area, with cut-outs, IP44/54

      0.00 €  / *
    • KN00A

      Terminal carrier, QC, universal adapter

      0.00 €  / *
    • UZ00K1

      Connection support, univers, for DIN rail mounting of QuickConnect modules

      0.00 €  / *
    • UZ25V2

      Cable bracket, universN, small section, 20 pieces

      0.00 €  / *
    • UZ25V1

      Cable bracket, universN, big section, 20 pieces

      0.00 €  / *
    • UZ01A2

      Tower upper part, universZ, low level

      0.00 €  / *
    • UZ03A1

      Tower underpart, universZ, with snap-in spring

      0.00 €  / *
    • FZ803B

      Mounting brackets, univers, for enclosure IP44/IP54, outside

      0.00 €  / *
    • UZ04A1

      Double tower, universZ, low level, with screws

      0.00 €  / *
    • FZ799N

      Fixation lug for pre-handing on wall rail FZ890N

      0.00 €  / *
    • FZ890N

      Wall fixation rail, univers, 2m, for enclosure IP44 / IP54

      0.00 €  / *
    • FZ441B

      Associaton kit univers, vertical, for enclosures 1-section D:160/205mm

      0.00 €  / *
    • KM13A

      PE/N Terminal, universZ, 2x13 clamping points, 6x16/7x10 mm²

      0.00 €  / *
    • KM25A

      PE/N Terminal, univers Z, 2x25 clamping points, 11x16/14x10 mm²

      0.00 €  / *
    • KM05B

      PE/N Terminal, universZ, 4x5 clamping points, 2x6/2x10/1x25mm², with clamp for 25mm²

      0.00 €  / *
    • UZ31M1

      Mounting plate, universN, for enclosure 500x300mm, 1 section

      0.00 €  / *
    • UZ41M1

      Mounting plate, universN, for enclosure 650mm, 1 field

      0.00 €  / *
    • UZ31M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 500mm

      0.00 €  / *
    • UZ41M5

      Mounting plate univers, for telcommunication, 1field, for enclosure height 650mm

      0.00 €  / *
    • UZ21M6

      Mounting plate, univers, 240x247mm, perforated, with mounting screws

      0.00 €  / *
    • UZ31M6

      Mounting plate, univers, 390x247mm, perforated, with mounting screws

      0.00 €  / *
    • UZ41M6

      Mounting plate, univers, 570x247mm, perforated, with mounting screws

      0.00 €  / *
    • FZ441N

      cable cover, 1-section, box fixation, Hx W x D176 x 300 x 135mm, RAL9010,

      0.00 €  / *
    • UZ005

      Identifer stripe, universN, for device slot, 12 pieces

      0.00 €  / *
    • UN04A

      Carrier rails, univers, for enclosures ex depth = 160mm, L = 600mm, 2 pieces

      0.00 €  / *
    • U82A

      DIN rail, univers, 7, 5 mm, depth-adjustable until 32, 5mm, 11 modules wide (200mm)

      0.00 €  / *
    • FZ794

      Document holder, transparent, DIN A4, adhesive

      0.00 €  / *
    • US11A1

      Cover plate, universN, 150x250mm, plain

      0.00 €  / *
    • US11A2

      Cover plate, universN, 150x250mm, 1x12M

      0.00 €  / *
    • US31A3

      Cover plate, universN, 450x250mm, 3x12M, slot distance 125mm

      0.00 €  / *
    • US31A1

      Cover plate, universN, 450x250mm, plain

      0.00 €  / *
    • US41A1

      Cover plate, universN, 600x250mm, plain

      0.00 €  / *
    • KXA04LH

      Feed-through terminal-phase , 4mm² , 800V/32A, screw connection

      0.00 €  / *

    Technical properties

    Connec­tion
    • Number of conduit inlets
      4
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      125 A
    Equip­ment
    • Number of rails
      4
    • Number of rows
      4
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      48
    Func­tions
    • Has protec­tion main switch
      No
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      650 mm
    • Width
      300 mm
    • Depth
      165 mm
    • Built-in depth
      161 mm
    • Number of width units
      12
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Type of handle
      Hinged pattern handle
    • Door/­cover is trans­parent
      No
    Connectivity
    • Mounting type
      Surface mounting
    Mater­ials
    • Material
      Steel
    • RAL code
      9010
    • Colour
      Pure white
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK09
    • Ingress Protec­tion (IP) class
      IP44
    • Locking type
      Without lock
    • Glow wire test
      750 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

    RoHS conform Yes

    Certifications and documents

    FWB enclosure,UNIVERS range, 5-rows 180 modules
    PDF
    49,47 MB
    Hager REACH declaration FWB41
    PDF
    Hager RoHS report FWB41
    PDF

    Downloads

    • Product image

      Image FWB41  | Hager

      Product Image FWB41

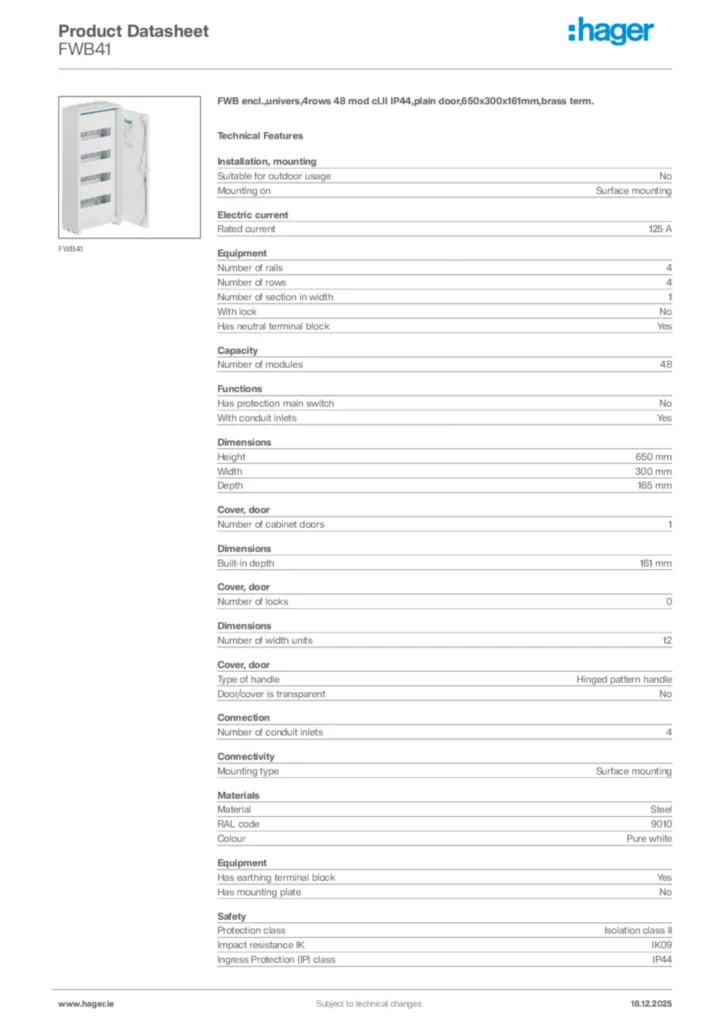

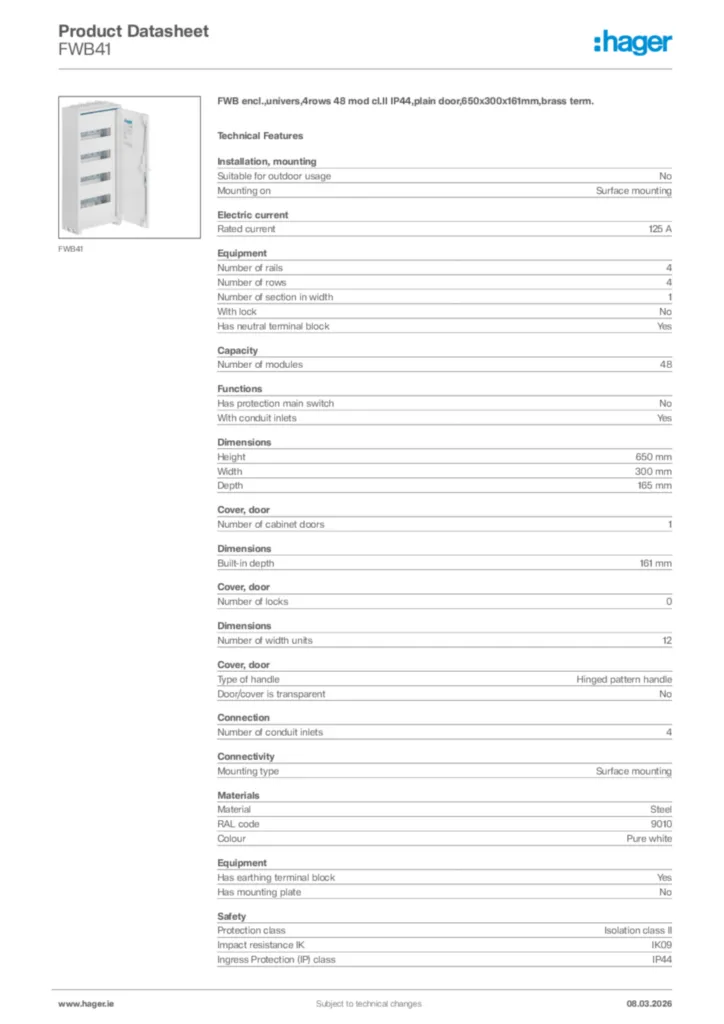

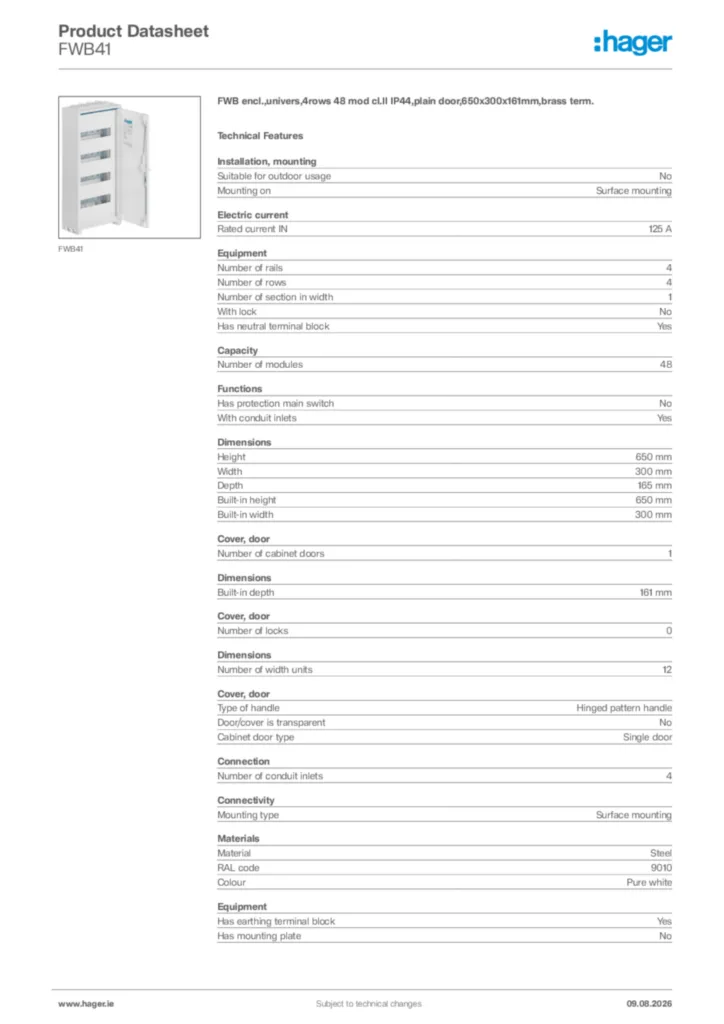

    • Product datasheet
