Multi-function time switch 1 channel bluetooth EGN100
catalog.lists.product_addition.login_popup.title
catalog.lists.product_addition.login_popup.descriptive_text
product.page.accessories.title
product.page.accessories.associated-products
-
Brightness sensor 2 product.page.accessories.products-available
product.page.accessories.title-modal
catalog.pageproduct.tab_additional_title.link
Voltage
-
Nominal voltage230 - 240 V
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Electric current
-
Rated current IN10 A
Power
-
230 V incandescent and halogen lamp2,300 W
Lighting
-
Max. load fluorescent lamp in series1,000 W
-
Max. load fluorescent lamp parallel compensated400 VA
Functions
-
Power reserve in years10 y
-
With network synchronisationcatalog.pageproduct.attribute_boolean.yes
-
With quartz synchronisationcatalog.pageproduct.attribute_boolean.yes
-
Number of function channels1
Equipment
-
Accuracy per day0.25 s
-
With impulse programmecatalog.pageproduct.attribute_boolean.yes
-
Number of channels1
Connection
-
Type of contacts1x changeover
-
Cross-section flexible conductor0.2 - 2.5 mm²
-
Cross-section rigid conductor0.2 - 4 mm²
Settings
-
Daily programmecatalog.pageproduct.attribute_boolean.yes
-
Weekly programmecatalog.pageproduct.attribute_boolean.yes
-
Annual programmecatalog.pageproduct.attribute_boolean.yes
Use conditions
-
Operating temperature-5 - +45 °C
Texts
-
Type of connectionWith screw terminals
Dimensions
-
Height90 mm
-
Width17.80 mm
-
Depth62.50 mm
Capacity
-
Number of modules1
Main electrical attributes
-
Minimum interval between 2 switching times1 min
Materials
-
RAL code7035
Use
-
Type of cycleYearly
catalog.pageproduct.title_sustainability.h2
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers catalog.pageproduct.product_description_learn_more.link
catalog.pageproduct.sustainability_block.downloads_h3
catalog.pageproduct.title_asset.h2
-
Product image
-
GeneratedProductDatasheet

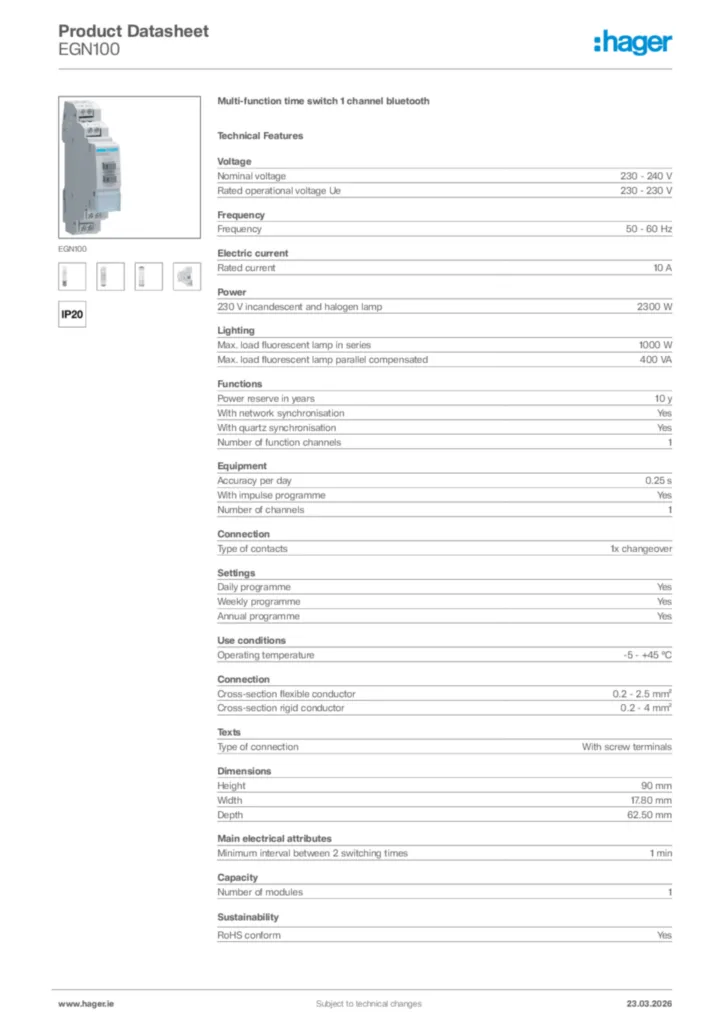

Hager Product data sheet EGN100
