Multi-function time switch 2 channels bluetooth EGN200
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Brightness sensor 2 products available
Technical properties
Voltage
-
Nominal voltage230 - 240 V
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Power
-
230 V incandescent and halogen lamp2,300 W
Lighting
-
Max. load fluorescent lamp in series1,000 W
-
Max. load fluorescent lamp parallel compensated400 VA
Functions
-
Power reserve in years10 y
-
With network synchronisationNo
-
With quartz synchronisationYes
-
Number of function channels2
Equipment
-
Accuracy per day0.25 s
-
With impulse programmeYes
-
Number of channels2
Connection
-
Type of contacts1x changeover
-
Cross-section flexible conductor0.2 - 2.5 mm²
-
Cross-section rigid conductor0.2 - 4 mm²
Settings
-
Daily programmeYes
-
Weekly programmeYes
-
Annual programmeYes
Use conditions
-
Operating temperature-5 - +45 °C
Texts
-
Type of connectionWith screw terminal
Dimensions
-
Height90 mm
-
Width35.80 mm
-
Depth61.60 mm
Capacity
-
Number of modules2
Main electrical attributes
-
Minimum interval between 2 switching times1 min
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

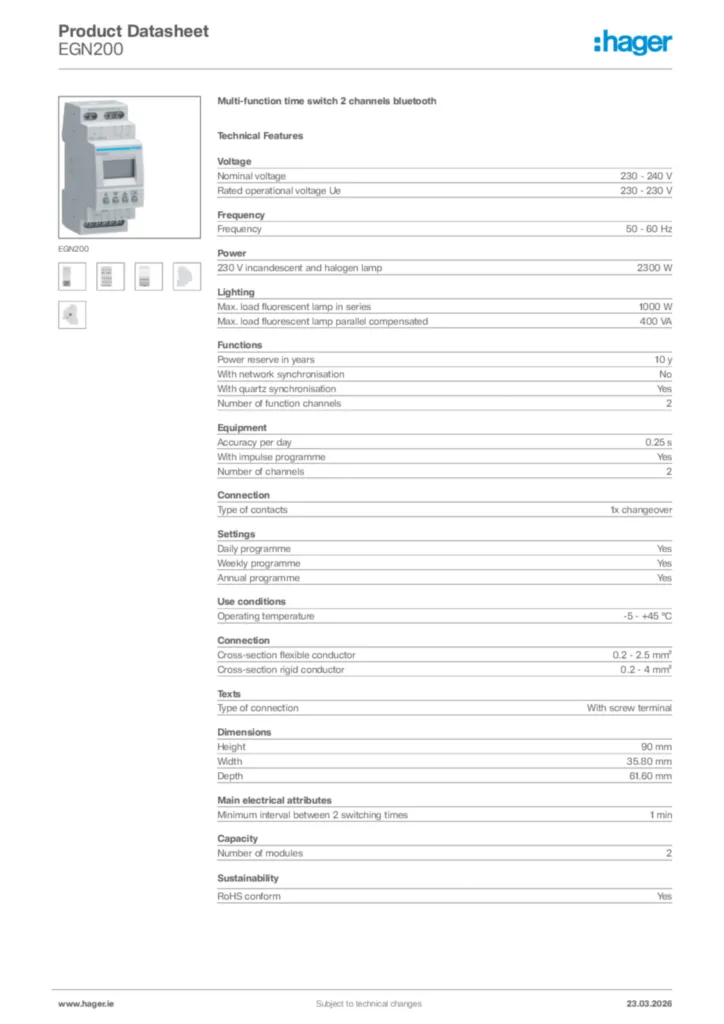

Hager Product data sheet EGN200
Multi-function time switch 2 channels bluetooth
PDF -
Application Guide
6LE007391C_QUICKGUIDE_EGN100_200_400_L_A4_Q_FR_WEB.pdf
guide de démarrage rapide 2022-06-28
PDF7,52 MB
6LE007392C_QUICKGUIDE_EGN100-200-400_L_A4_Q_EN_WEB.pdf
quick start guide 2020-06-24
PDF7,29 MB
6LE007393C_QUICKGUIDE_EGN100-200-400_L_A4_Q_DE_WEB.pdf
Schnellstart Anleitung 2022-06-28
PDF7,48 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-05-11
PDF124,59 kB
Declaration of conformity International 2023-04-20
PDF269,42 kB
Declaration of conformity International 2023-04-20
PDF316,29 kB
More documentation
