            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve

            Weekly time switch 1 channel, 3 modules with reserve

            EHN171

            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            EHN171 - Weekly time switch 1 channel, 3 modules with reserve
            • Modular devices

            Weekly time switch 1 channel, 3 modules with reserve EHN171

            EAN
            3250617201094
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Technical properties
            • Environmental value
            • Documentations
            • More products

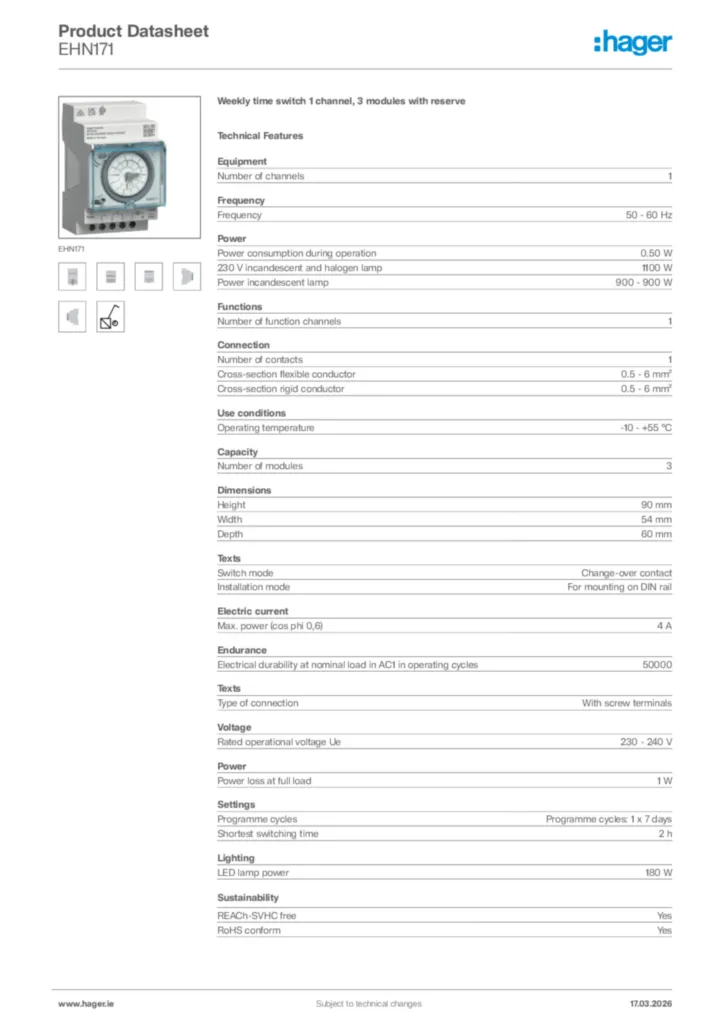

            Download the data sheet

            Technical properties

            Equip­ment
            • Number of chan­nels
              1
            Frequency
            • Frequency
              50 - 60 Hz
            Power
            • Power consump­tion during oper­a­tion
              0.50 W
            • 230 V incan­des­cent and halogen lamp
              1,100 W
            • Power incan­des­cent lamp
              900 - 900 W
            • Power loss at full load
              1 W
            Func­tions
            • Number of func­tion chan­nels
              1
            Connec­tion
            • Number of contacts
              1
            • Cross-sec­tion flex­ible conductor
              0.5 - 6 mm²
            • Cross-sec­tion rigid conductor
              0.5 - 6 mm²
            Use condi­tions
            • Oper­ating temper­ature
              -10 - +55 °C
            Capa­city
            • Number of modules
              3
            Dimen­sions
            • Height
              90 mm
            • Width
              54 mm
            • Depth
              60 mm
            Texts
            • Switch mode
              Change-over contact
            • Install­a­tion mode
              For mounting on DIN rail
            • Type of connec­tion
              With screw terminals
            Elec­tric current
            • Max. power (cos phi 0,6)
              4 A
            Endur­ance
            • Elec­trical durab­ility at nominal load in AC1 in oper­ating cycles
              50,000
            Voltage
            • Rated oper­a­tional voltage Ue
              230 - 240 V
            Settings
            • Programme cycles
              Programme cycles: 1 x 7 days
            • Shortest switching time
              2 h
            Lighting
            • LED lamp power
              180 W

            Environmental value

            We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

            RoHS conform Yes
            REACH conform Yes

            Certifications and documents

            PEP document en-AU 2023-12-20
            PDF
            417,11 kB
            REACH declaration EHN171 (english)
            PDF
            103,10 kB
            RoHS declaration EHN171 (english)
            PDF
            103,59 kB

            Downloads

            • Product image

              Image EHN171  | Hager

              Product Image EHN171

            • Manual

              Image Manual it-IT, it-CH 2023-10-17  | Hager

              Manual it-IT, it-CH 2023-10-17

              PDF
              2,62 MB
            • Declaration of conformity

              Image Declaration of conformity International 2023-04-27  | Hager

              Declaration of conformity International 2023-04-27

              PDF
              270,56 kB
              Image Declaration of conformity International 2023-04-27  | Hager

              Declaration of conformity International 2023-04-27

              PDF
              314,21 kB
