RCBO with dangerous arc detection 20A B curve 6kA Type A 30mA ARF920D

EAN

3250611034773

Packaging

1 Piece

Accessories
Technical properties
Documentations
More products

Download the data sheet

Complete your system

Mechanic accessories for low-voltage components 1 products available
Shunt release 1 products available
Auxiliaries contact block 2 products available
Modular phase busbar 3 products available

Technical properties

Rated current

20 A
Rated current -25°C

24.80 A
Rated current at -20°C

24.36 A
Rated current -15°C

23.92 A
Rated current -10°C

23.47 A
Rated current -5°C

23.04 A
Rated current at 0°C

22.60 A
Rated current 5°C

22.16 A
Rated current 10°C

21.73 A
Rated current 15°C

21.29 A
Rated current at 20°C

20.85 A
Rated current 25°C

20.41 A
Rated current 30°C

20 A
Rated current 35°C

19.53 A
Rated current at 40°C

19.10 A
Rated current at 45°C

18.66 A
Rated current at 50°C

18.20 A
Rated current 55°C

17.78 A
Rated current 60°C

17.34 A
Rated current 65°C

16.90 A
Rated current 70°C

16.46 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 61009-1

6 kA
Breaking and opening capacity Idm

6 kA
Rated residual operating current Idn

30 mA

Curve

B
Type of pole

1P+N

Nominal tightening torque down terminal

2 - 2 Nm
Nominal tightening torque

2.10 - 2.10 Nm
Type of bottom connection for modular devices

biconnect, quickbusbar
Type of top connection for modular devices

quickconnect

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Residual current type

A

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Rated operational voltage Ue

230 - 230 V

Total power loss under IN

6.08 W

Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C

Number of mechanical operations

4,000
Electric endurance in number of cycles

2,000

Number of modules

3

Height

83 mm
Width

53.20 mm
Depth

70 mm

Frequency

50 - 50 Hz

Downloads

Product image

Product Image ARF920D
Product datasheet

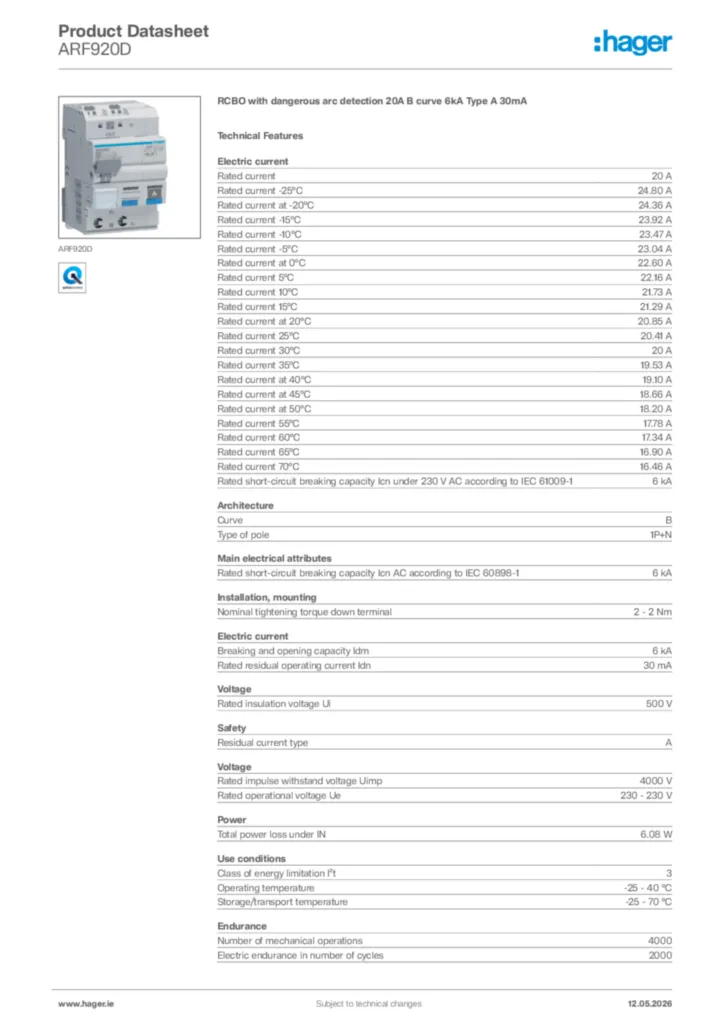

Hager Product data sheet ARF920D
