RCBO 1P+N 6kA C-32A 100mA A AEA932T

Accessories
Technical properties
Environmental value
Documentations
More products

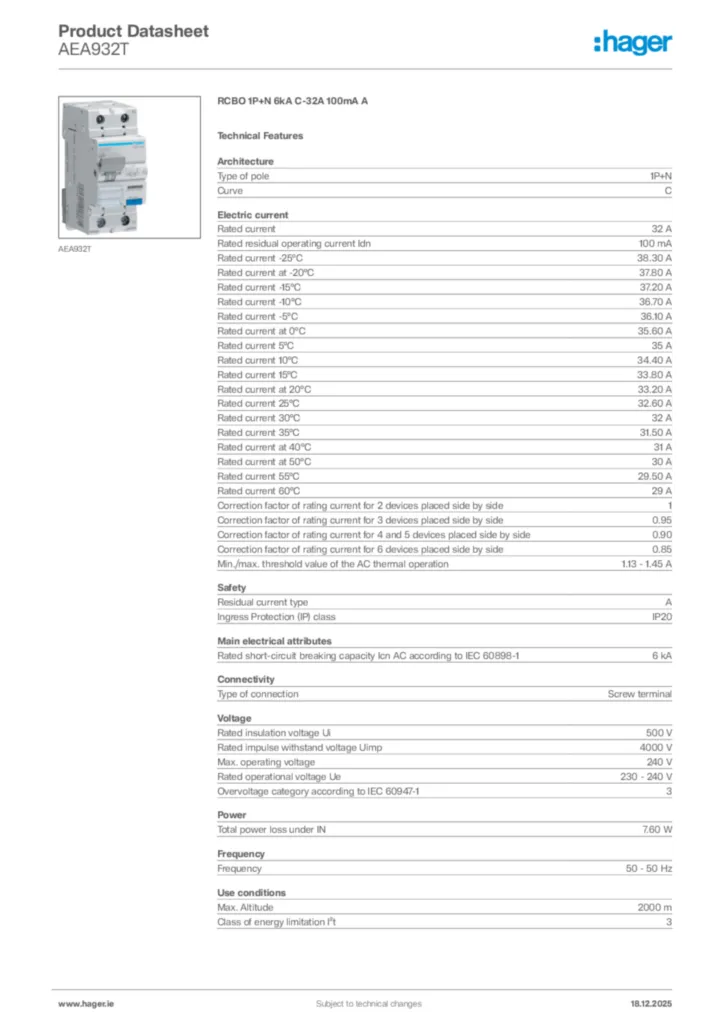

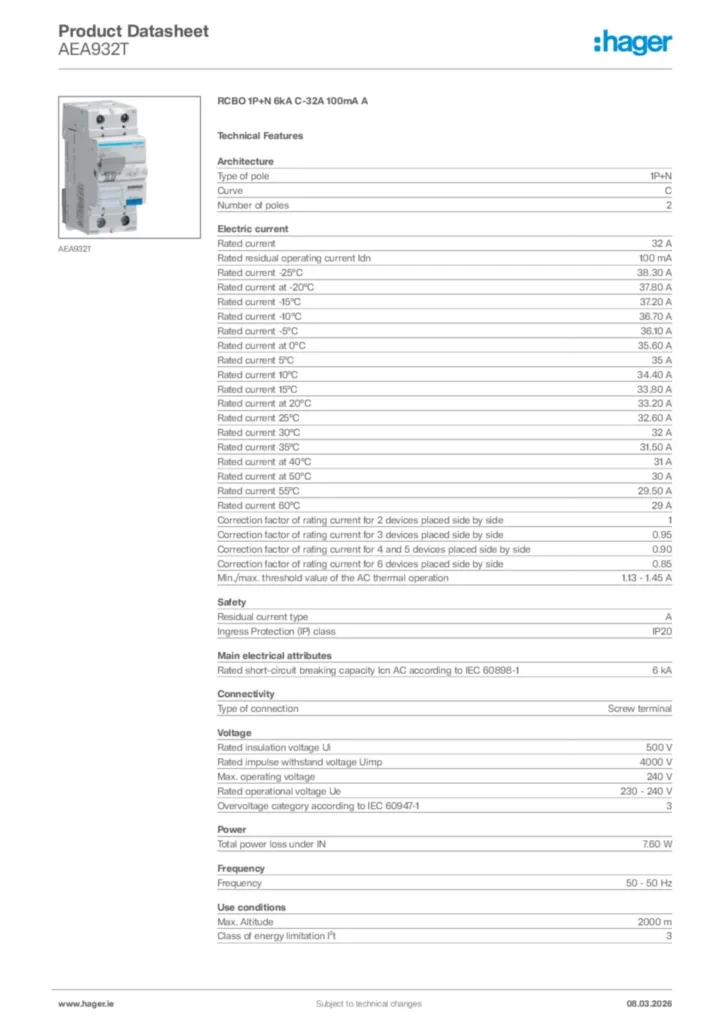

Download the data sheet

Complete your system

Locking interlocking functions 1 products available
Cable terminal connection 3 products available
Modular phase busbar 2 products available

Technical properties

Type of pole

1P+N

Rated current

32 A
Rated residual operating current Idn

100 mA
Rated current -25°C

38.30 A
Rated current at -20°C

37.80 A
Rated current -15°C

37.20 A
Rated current -10°C

36.70 A
Rated current -5°C

36.10 A
Rated current at 0°C

35.60 A
Rated current 5°C

35 A
Rated current 10°C

34.40 A
Rated current 15°C

33.80 A
Rated current at 20°C

33.20 A
Rated current 25°C

32.60 A
Rated current 30°C

32 A
Rated current 35°C

31.50 A
Rated current at 40°C

31 A
Rated current at 50°C

30 A
Rated current 55°C

29.50 A
Rated current 60°C

29 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0.95
Correction factor of rating current for 4 and 5 devices placed side by side

0.90
Correction factor of rating current for 6 devices placed side by side

0.85
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A

Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Type of connection

Screw terminal

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Max. operating voltage

240 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

7.60 W

Frequency

50 - 50 Hz

Max. Altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-25 - 70 °C

Electric endurance in number of cycles

2,000
Number of mechanical operations

4,000

Cross-section flexible conductor

1 - 16 mm²
Cross-section rigid conductor

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Nominal tightening torque

2.10 - 2.10 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

2

Height

83 mm
Width

35 mm
Depth

68 mm

Suitable for DIN Rail

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
