RCBO 4P 6kA C-6A 30mA A Class ADM456C

Name: ADM456C
Brand: Hager
SKU: ADM456C

Phase out product: please contact your electrical wholesaler for availability

Follow-up products :

ADM460C

Accessories
Technical properties
Environmental value
Documentations

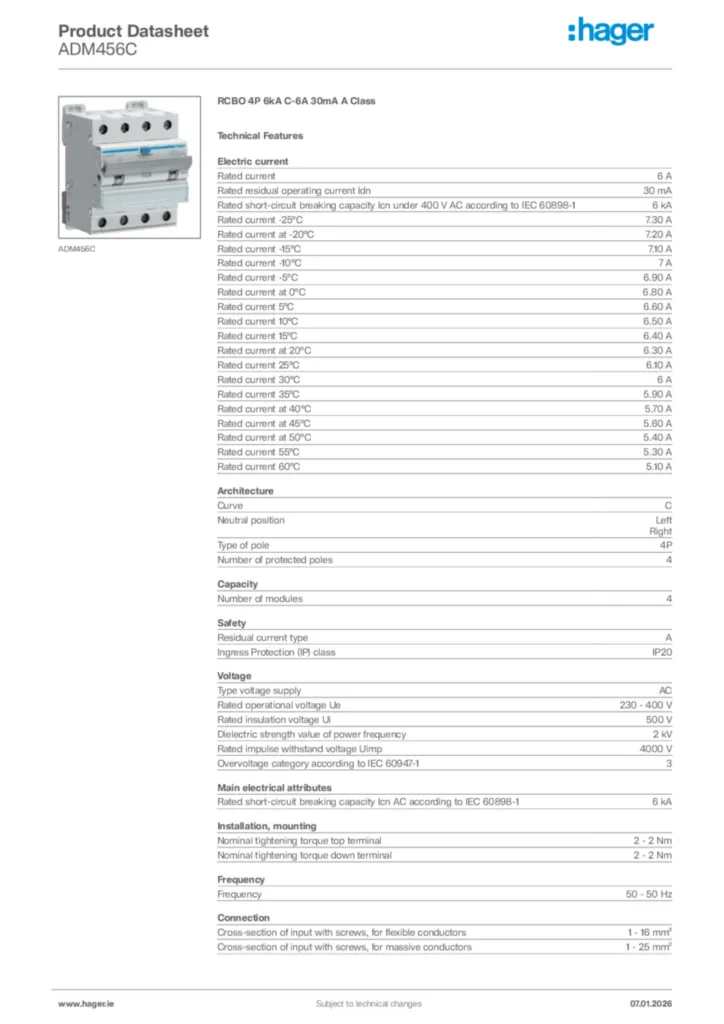

Download the data sheet

Complete your system

Modular phase busbar 4 products available
Locking interlocking functions 1 products available
Mechanic accessories for low-voltage components 1 products available
Shunt release 1 products available
Auxiliaries contact block 2 products available

Technical properties

Type of pole

4P
Number of protected poles

4
Curve

C

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4,000 V
Rated operational voltage Ue

230 - 400 V
Overvoltage category according to IEC 60947-1

3
Type voltage supply

AC
Dielectric strength value of power frequency

2 kV

Rated current

6 A
Rated residual operating current Idn

30 mA
Rated current -25°C

7.30 A
Rated current at -20°C

7.20 A
Rated current -15°C

7.10 A
Rated current -10°C

7 A
Rated current -5°C

6.90 A
Rated current at 0°C

6.80 A
Rated current 5°C

6.60 A
Rated current 10°C

6.50 A
Rated current 15°C

6.40 A
Rated current at 20°C

6.30 A
Rated current 25°C

6.10 A
Rated current 30°C

6 A
Rated current 35°C

5.90 A
Rated current at 40°C

5.70 A
Rated current at 45°C

5.60 A
Rated current at 50°C

5.40 A
Rated current 55°C

5.30 A
Rated current 60°C

5.10 A
Correction factor of rating current for 2 devices placed side by side

0.80
Min./max. threshold value of the AC thermal operation

1.13 - 1.45 A
Rated service breaking capacity Ics AC according to IEC 60898-1

6 kA

Total power loss under IN

6.80 W

Frequency

50 - 50 Hz

Nominal tightening torque down terminal

2 - 2 Nm
Nominal tightening torque top terminal

2 - 2 Nm
Type of bottom connection for modular devices

biconnect

Max. altitude

2,000 m
Class of energy limitation I²t

3
Operating temperature

-25 - 40 °C
Storage/transport temperature

-55 - 70 °C
Degree of pollution according to IEC 60664 / IEC 60947-2

2

Electric endurance in number of cycles

2,000
Number of mechanical operations

4,000

Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Number of modules

4

Height

84 mm
Width

71 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers Learn More

RoHS conform Yes
