    • WGCS116EA
    EAN-Nr.
    3250617507660
    Packaging
    10 Pieces
    • inspire - sockets

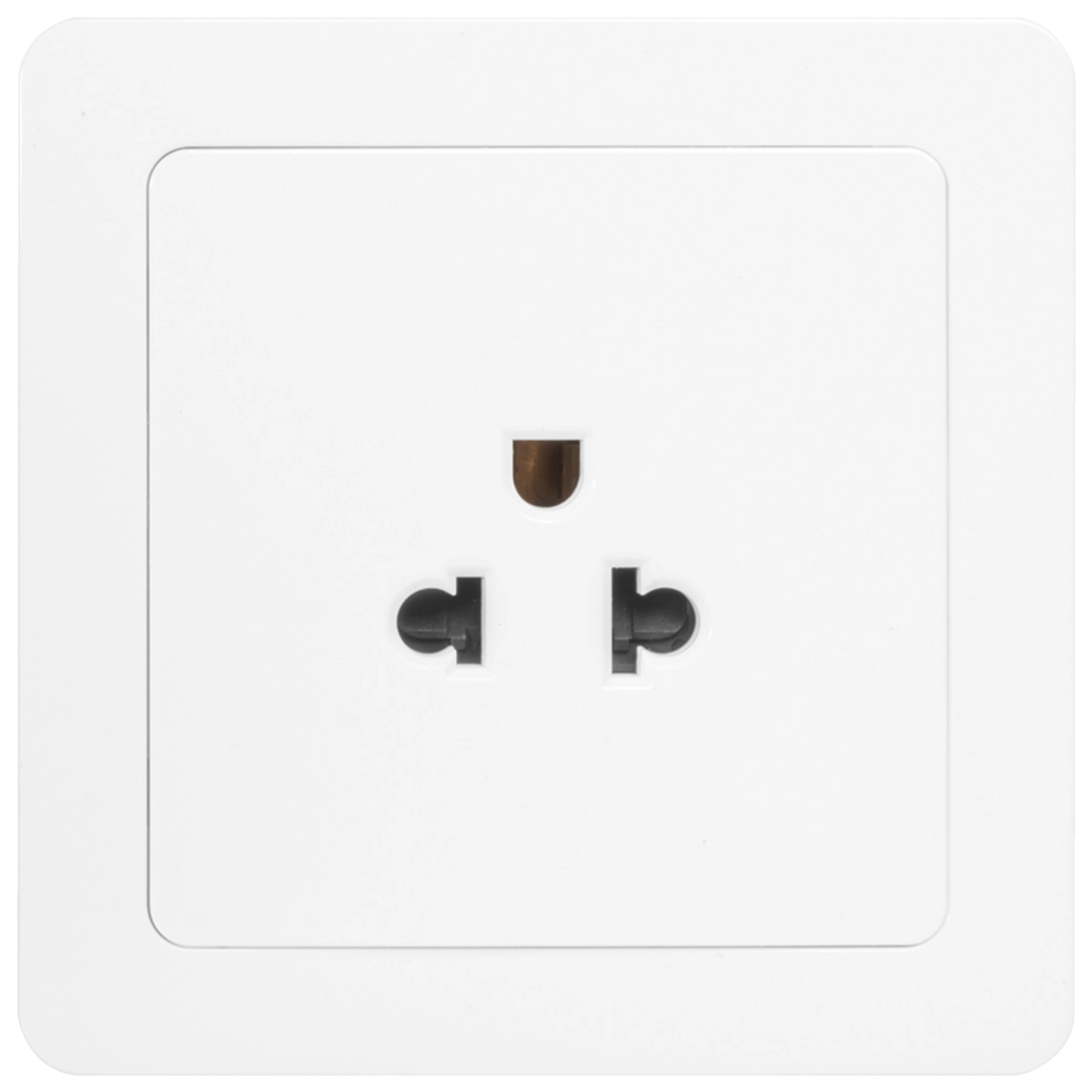

    16A SINGLE EURO-AMERICAN SOCKET WGCS116EA

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Also available in

    On/off switch
    No
    No
    Yes
    Yes

    16A SINGLE EURO-AMERICAN SOCKET

    WGCS116EA

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 6 products available

    Referenced by

    • WGCCH2

      2G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCCH3

      3G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCCH4

      4G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCCH5

      5G multi-gang frame (horizontal)
      0.00 €  / *
    • WGCCV2

      2G frame (vertical)
      0.00 €  / *
    • WGCCV3

      3G frame (vertical)
      0.00 €  / *

    Technical characteristics

    Voltage
    • Rated voltage
      250 V
    • Output voltage
      0-0 V
    Elec­tric current
    • Output current
      0
    • Rated current
      16 A
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      0
    • Power consump­tion standby
      0
    Mater­ials
    • Colour
      White
    • Surface finish
      Glossy
    • Material
      Polycar­bonate (PC)
    • Treat­ment
      Untreated
    • Contains recycled material (% of total plastic weight)
      0
    Dimen­sions
    • Height
      30 mm
    • Width
      86 mm
    • Depth
      20 mm
    • Built-in depth flush-­mounted boxes
      35 mm
    • Built-in depth
      20 mm
    Cable
    • Cable length
      0
    Connec­tion
    • Connect­or/plug type
      NEMA
    • Cross-sec­tion flex­ible conductor without wire end sleeve
      0,08 - 4 mm²
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Back
    Connectivity
    • Type of connec­tion
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    • Connect­or/plug type USB
      NEMA
    Equip­ment
    • Connect­or/plug type socket outlet
      British Standard
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    • Pre-equipped with
      None
    Capa­city
    • Number of modules
      0
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK02
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No
    • Related Systems
      shark

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white
    PDF
    48,73 MB
    Hager REACH declaration WGCS116EA
    PDF
    Hager RoHS report WGCS116EA
    PDF

    Downloads

    • Image WGCS116EA | Hager

      Product Image WGCS116EA

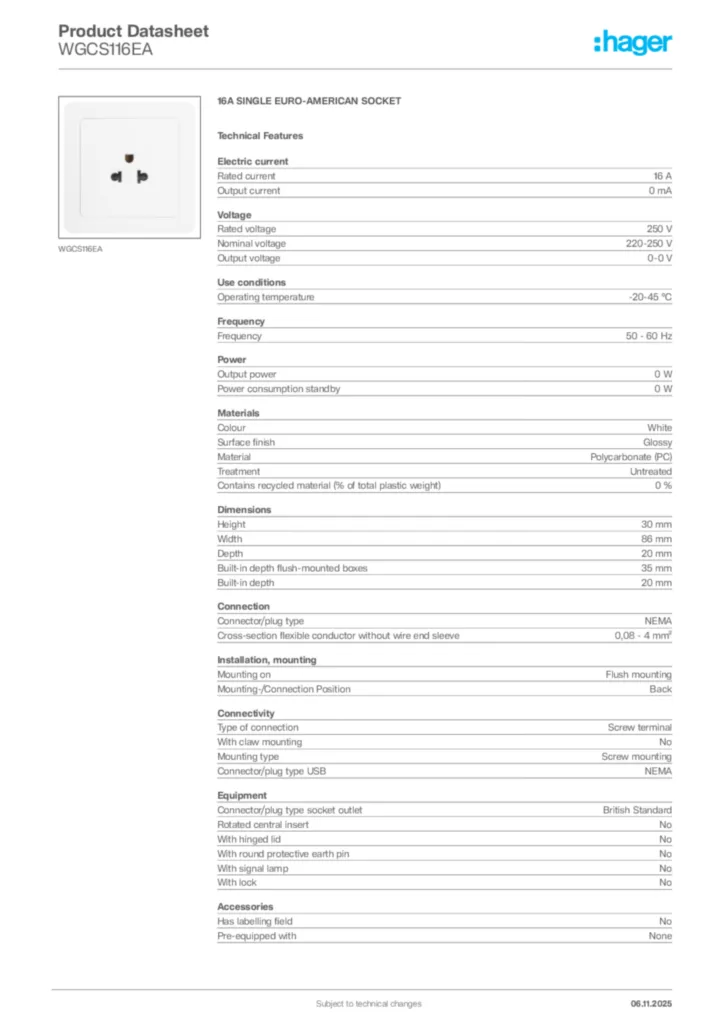

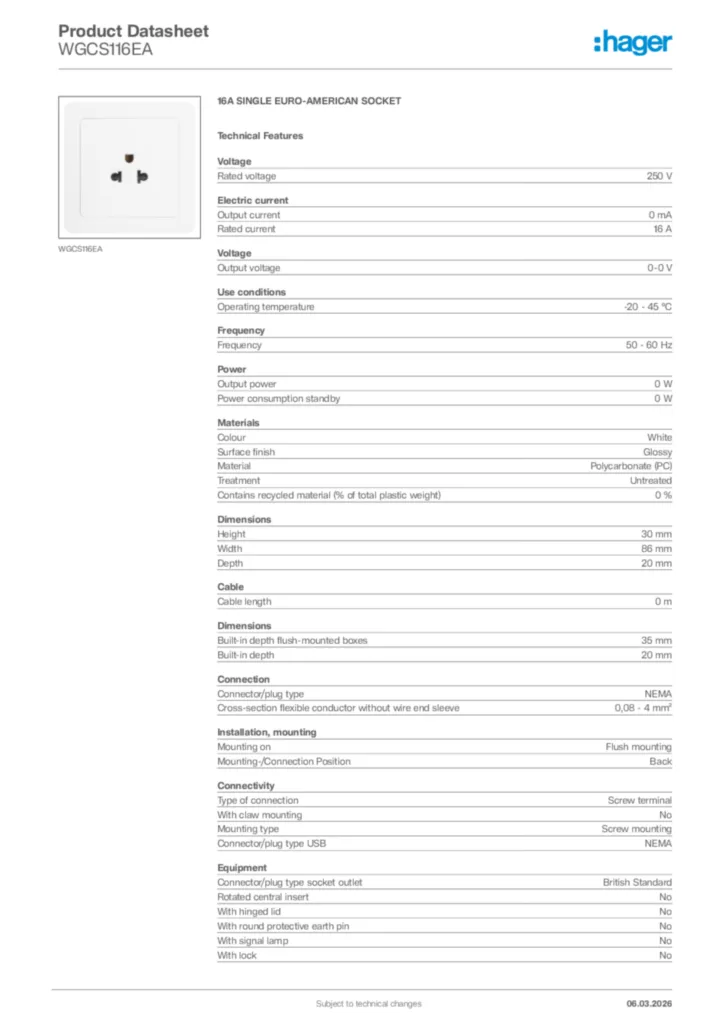

    • Product datasheet

      Image Hager Product data sheet WGCS116EA | Hager

      Hager Product data sheet WGCS116EA

      16A SINGLE EURO-AMERICAN SOCKET

      PDF

    • Declaration of conformity

      Image BOC_CE_CERT_GSI_GSIG_GHF_IT_EN_28072021 | Hager

      BOC_CE_CERT_GSI_GSIG_GHF_IT_EN_28072021

      Declaration of conformity en-GB 2022-12-29

      PDF
      96,44 kB
