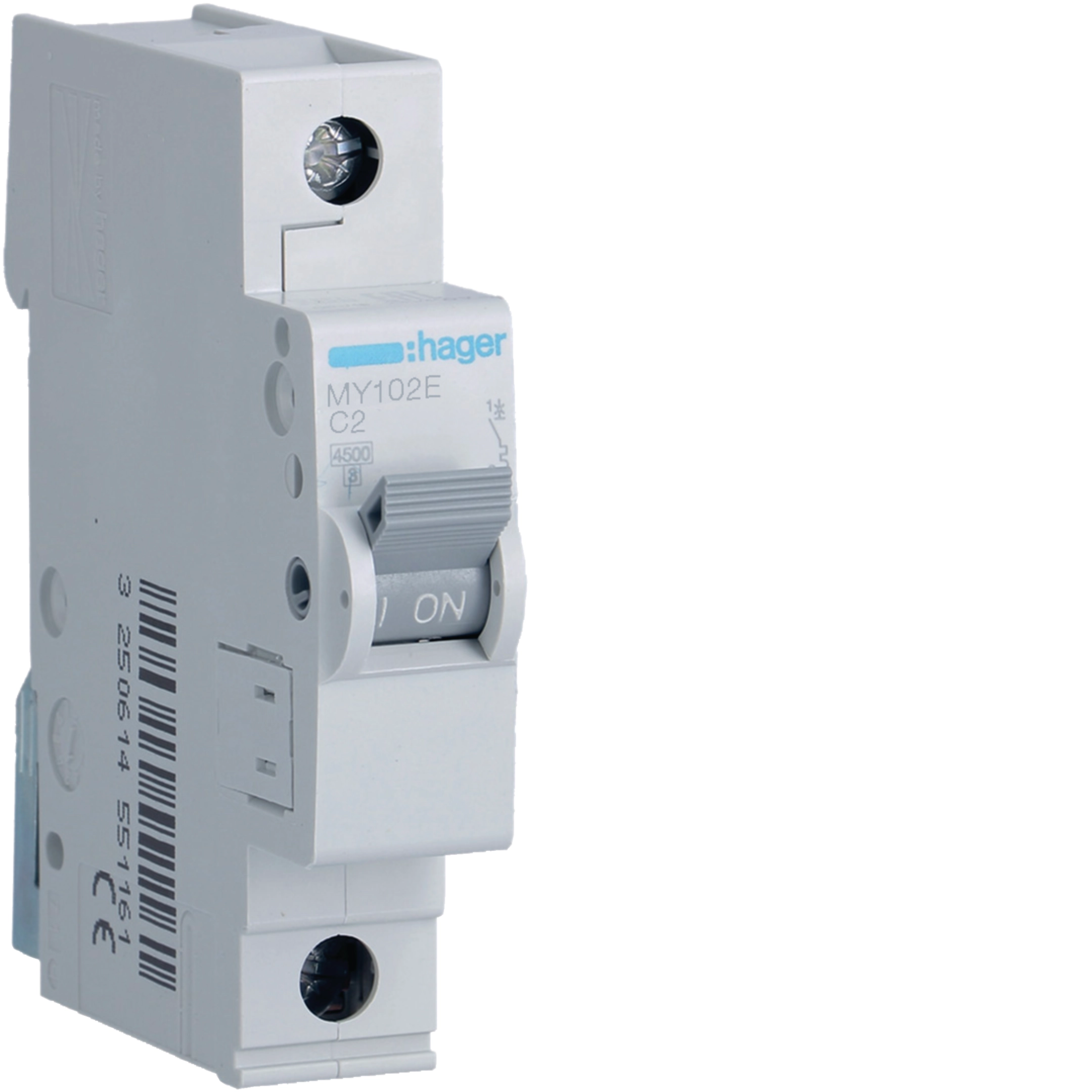

MCB 1P 4.5kA C-2A 1M MY102E

Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Technical characteristics

Rated current IN

2 A
Rated short-circuit breaking capacity Icn under 230 V AC according to IEC 60898-1

4,5 kA
Rated current at -15°C

2,23 A
Rated current at -10°C

2,2 A
Rated current at -5°C

2,18 A
Rated current at 0°C

2,15 A
Rated current at 5°C

2,13 A
Rated current at 10°C

2,1 A
Rated current at 15°C

2,08 A
Rated current at 20°C

2,05 A
Rated current at 25°C

2,03 A
Rated current at 30°C

2 A
Rated current at 35°C

1,97 A
Rated current at 40°C

1,95 A
Rated current at 45°C

1,92 A
Rated current at 50°C

1,89 A
Rated current at 55°C

1,86 A
Rated current at 60°C

1,84 A
Rated current at 65°C

1,81 A
Rated current at 70°C

1,78 A

Type of pole

1P
Curve

C

Number of modules

1

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

4,5 kA

Nominal tightening torque top terminal

2,80 - 2,80 Nm
Nominal tightening torque down terminal

2,80 - 2,80 Nm
Nominal tightening torque

2,80 - 2,80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1 - 35 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for flexible conductors

1 - 25 mm²
Cross-section of input with screws, for massive conductors

1 - 35 mm²
Cross-section flexible conductor

1 - 25 mm²
Cross-section rigid conductor

1 - 35 mm²

Ingress Protection (IP) class

IP20
Grid distance

35 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Class of energy limitation I²t

3
Air humidity protection

For all climates
Operating temperature

-25 - 70 °C

Power dissipation at IN

1,30 W

Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal
Type of connection

Screw terminal

Height

83 mm
Width

17,50 mm
Depth

70 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
