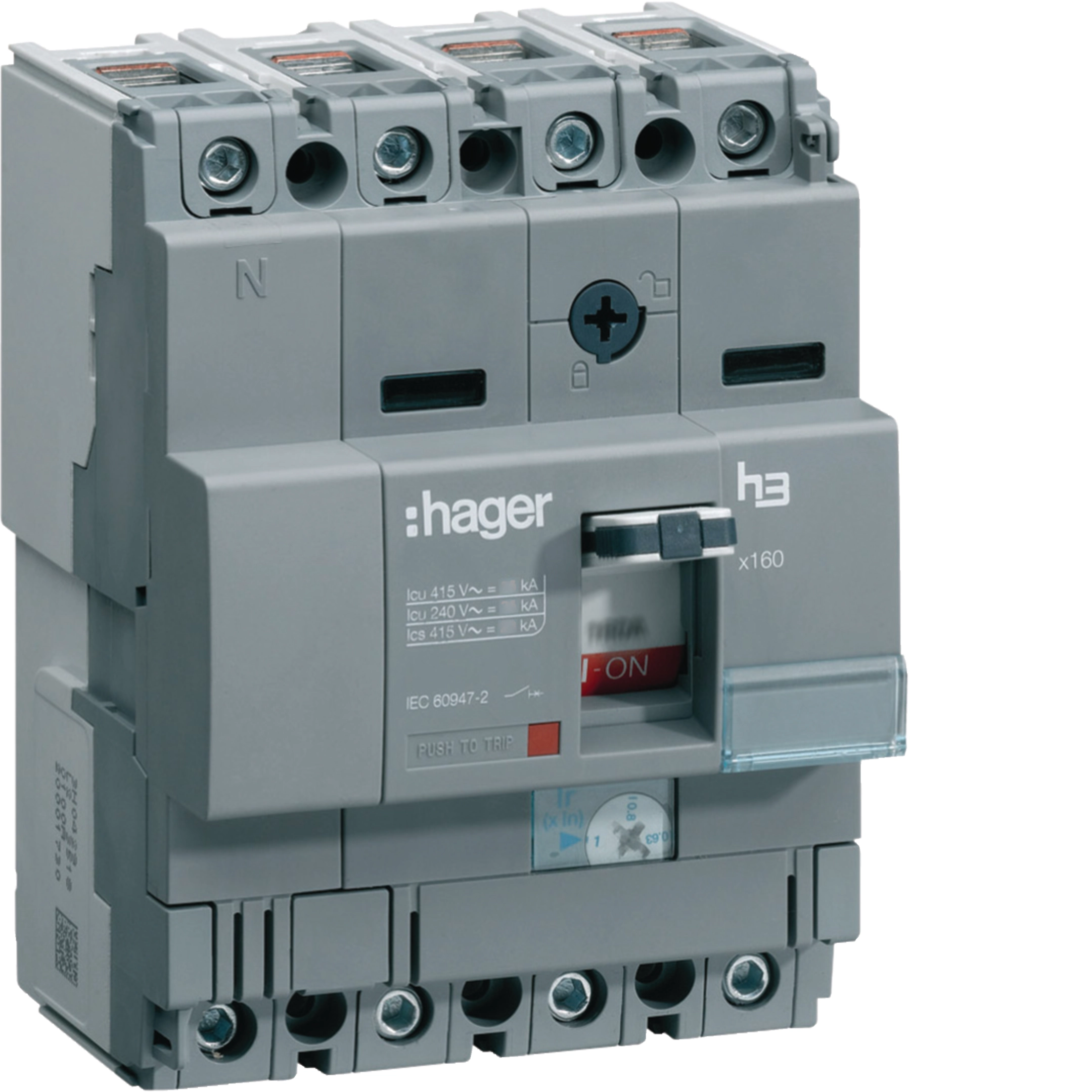

Moulded Case Circuit Breaker h3 x160 TM ADJ 4P4D N0-100% 63A 40kA CTC HNA064U

Technical characteristics
Environmental value
Documentations
More products

Download the sheet

Technical characteristics

Rated current

63 A
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-2

40 kA
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-2

85 kA
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-2

40 kA
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-2

20 kA

Number of poles

4

Frequency

50 - 60 Hz

Rated impulse withstand voltage Uimp

8000 V
Rated insulation voltage Ui

690 V
Rated operational voltage Ue

220 - 415 V

Trip unit

TM A/F

Total power loss under IN

30 W

Electric endurance in number of cycles

10000
Number of mechanical operations

20000

Ingress Protection (IP) class

IP4X

Cross-section flexible conductor

4 - 70 mm²
Cross-section rigid conductor

4 - 95 mm²

Type of connection

Screw terminal

Thermal protection knob setting xIN

0,63, 0,8, 1

Height

130 mm
Width

100 mm
Depth

68 mm

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
