Moulded Case Circuit Breaker h3 x160 TM FIX 4P4D 100A 18kA FTC HDA101P
EAN-Nr.
3250613132521
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists

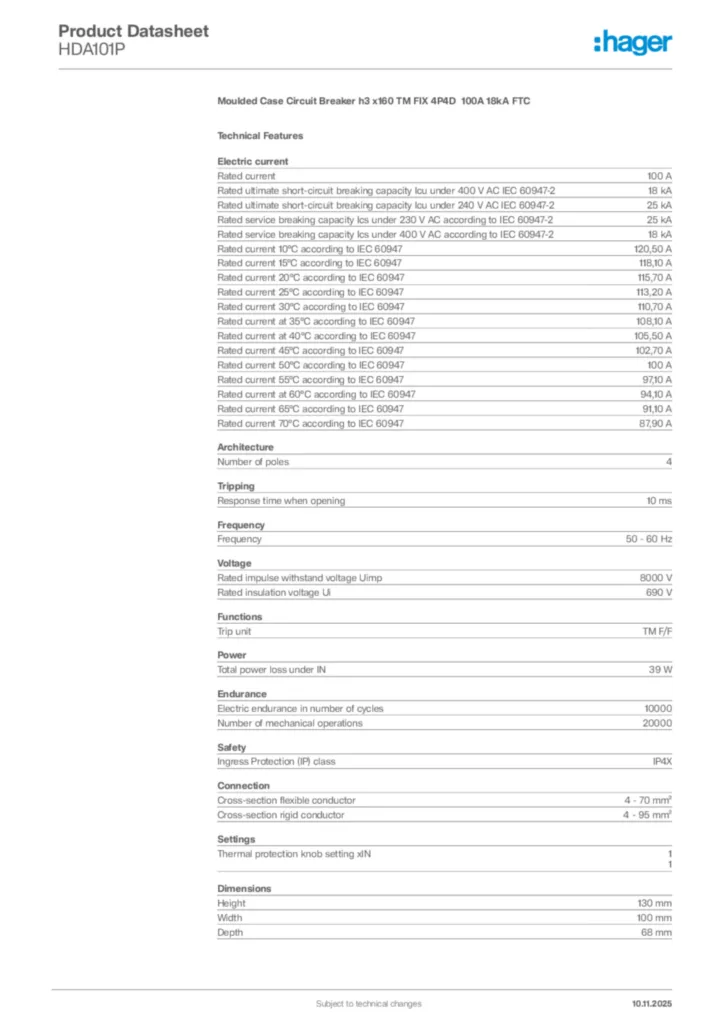

Technical characteristics
Electric current
-
Rated current100 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-218 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-225 kA
-
Rated service breaking capacity Ics under 230 V AC according to IEC 60947-225 kA
-
Rated service breaking capacity Ics under 400 V AC according to IEC 60947-218 kA
-
Rated current 10°C according to IEC 60947120,50 A
-
Rated current 15°C according to IEC 60947118,10 A
-
Rated current 20°C according to IEC 60947115,70 A
-
Rated current 25°C according to IEC 60947113,20 A
-
Rated current 30°C according to IEC 60947110,70 A
-
Rated current at 35°C according to IEC 60947108,10 A
-
Rated current at 40°C according to IEC 60947105,50 A
-
Rated current 45°C according to IEC 60947102,70 A
-
Rated current 50°C according to IEC 60947100 A
-
Rated current 55°C according to IEC 6094797,10 A
-
Rated current at 60°C according to IEC 6094794,10 A
-
Rated current 65°C according to IEC 6094791,10 A
-
Rated current 70°C according to IEC 6094787,90 A
Architecture
-
Number of poles4
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui690 V
Functions
-
Trip unitTM F/F
Power
-
Total power loss under IN39 W
Endurance
-
Electric endurance in number of cycles10000
-
Number of mechanical operations20000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor4 - 70 mm²
-
Cross-section rigid conductor4 - 95 mm²
Settings
-
Thermal protection knob setting xIN1, 1
Dimensions
-
Height130 mm
-
Width100 mm
-
Depth68 mm
Compatibility
-
Suitable for DIN RailNo
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
