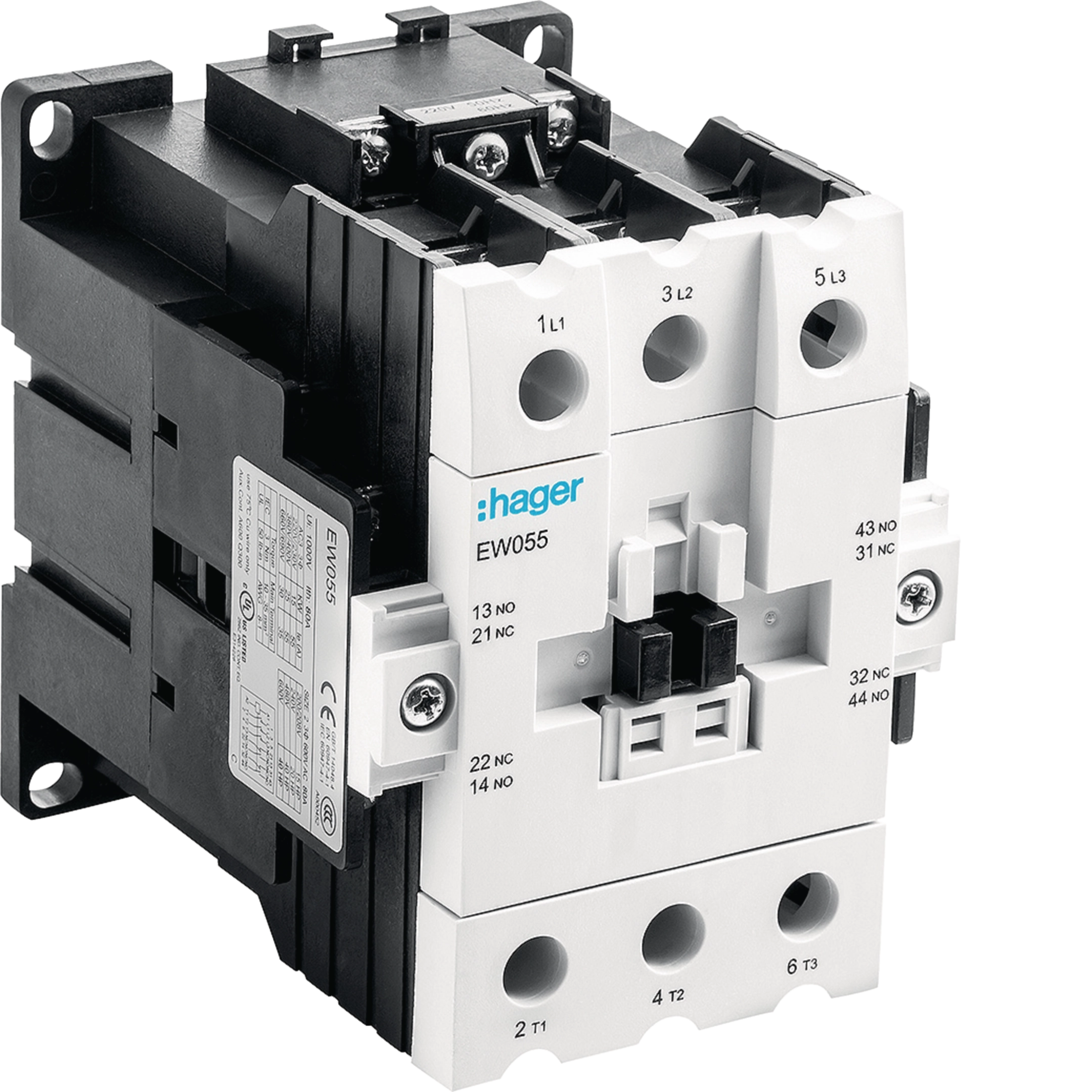

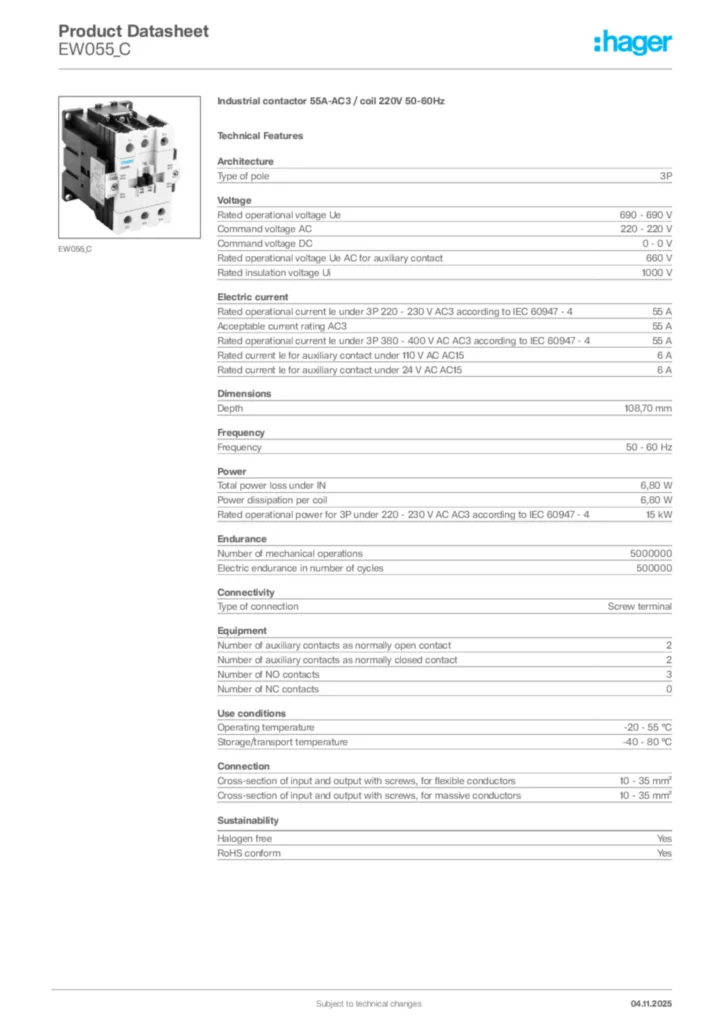

    Industrial contactor 55A-AC3 / coil 220V 50-60Hz EW055_C

    Technical characteristics

    Archi­tec­ture
    • Type of pole
      3P
    Voltage
    • Rated oper­a­tional voltage Ue
      690 - 690 V
    • Command voltage AC
      220 - 220 V
    • Command voltage DC
      0 - 0 V
    • Rated oper­a­tional voltage Ue AC for auxil­iary contact
      660 V
    • Rated insu­la­tion voltage Ui
      1000 V
    Elec­tric current
    • Rated oper­a­tional current Ie under 3P 220 - 230 V AC3 according to IEC 60947 - 4
      55 A
    • Accept­able current rating AC3
      55 A
    • Rated oper­a­tional current Ie under 3P 380 - 400 V AC AC3 according to IEC 60947 - 4
      55 A
    • Rated current Ie for auxil­iary contact under 110 V AC AC15
      6 A
    • Rated current Ie for auxil­iary contact under 24 V AC AC15
      6 A
    Dimen­sions
    • Depth
      108,70 mm
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Total power loss under IN
      6,80 W
    • Power dissip­a­tion per coil
      6,80 W
    • Oper­ating consump­tion
      30 VA
    • Inrush power absorbed
      280 VA
    • Rated oper­a­tional power for 3P under 220 - 230 V AC AC3 according to IEC 60947 - 4
      15 kW
    Endur­ance
    • Number of mech­an­ical oper­a­tions
      5000000
    • Elec­tric endur­ance in number of cycles
      500000
    Connectivity
    • Type of connec­tion
      Screw terminal
    Connec­tion
    • Cross-sec­tion of input and output with screws, for flex­ible conductors
      10 - 35 mm²
    • Cross-sec­tion of input and output with screws, for massive conductors
      10 - 35 mm²
    Equip­ment
    • Number of auxil­iary contacts as normally open contact
      2
    • Number of auxil­iary contacts as normally closed contact
      2
    • Number of NO contacts
      3
    • Number of NC contacts
      0
    Use condi­tions
    • Oper­ating temper­ature
      -20 - 55 °C
    • Stor­age/trans­port temper­ature
      -40 - 80 °C

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    Halogen free Yes
