KNX pb 4g fm, lab flds, RGB LED, int temp sens, KNX - Q.x, alu velv, lacq 80144321
Phase out product: please contact your electrical wholesaler for availability
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
80040011
Bus coupling unit flush-mtd, ext. temp. sensor, KNX
Technical characteristics
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer20 mA
Functions
-
With room temperature controllerYes
Dimensions
-
Height58,70 mm
-
Width58,70 mm
-
Depth33,70 mm
Equipment
-
Number of actuation points8
Controls and indicators
-
With LED indicationYes
Materials
-
ColourAluminium
-
RAL code9006
-
MaterialThermoplastic
-
Surface finishVelvety
Accessories
-
Has labelling fieldYes
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
Scope of delivery
-
Bus connection includedNo
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

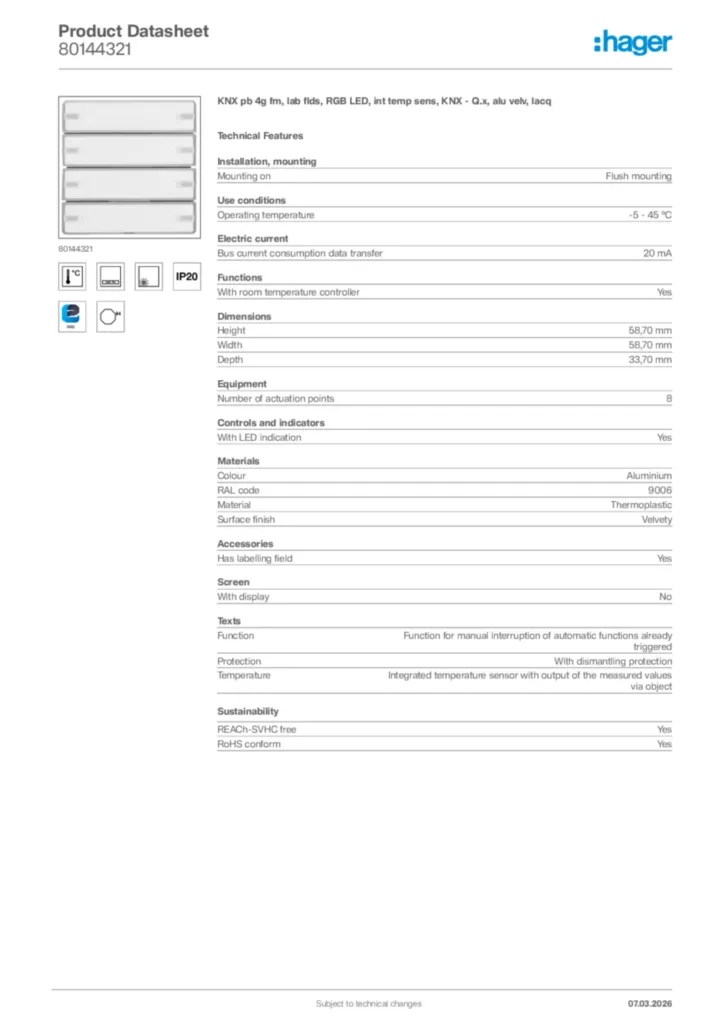

Product datasheet
