Small distributor,golf,flush,1row,4M,IP40,MS-terminal,PE,white door VF104PF

EAN
3250616465374
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

Small distributor,golf,flush,1row,4M,IP40,MS-terminal,PE,white door

VF104PF

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Common Accessories 1 products available
  • Cover­/in­fill panel/iden­ti­fic­a­tion strip 1 products available
  • Lock system 1 products available

Complete your system

  • Common Accessories
  • Cover­/in­fill panel/iden­ti­fic­a­tion strip
  • Lock system
  • VZ699N

    Cable guide clamp, golf, accessory, VF/VS, 10 pieces
    0.00 €  / *
  • VZ787N

    Labeling flap, golf, surface, flush mounting distributor, 450mm, accessory
    0.00 €  / *
  • VZ794N

    Key lock, golf, flush, surface mounting disributor, 2keys, accessory
    0.00 €  / *

Technical properties

Voltage
  • Nominal voltage
    400 - 400 V
Install­a­tion, mounting
  • Suit­able for outdoor usage
    No
  • Mounting on
    Flush mounting
Elec­tric current
  • Rated current
    63 A
Equip­ment
  • Number of rails
    1
  • Number of rows
    1
  • Number of section in width
    1
  • With lock
    No
  • Has neutral terminal block
    No
  • Has earthing terminal block
    Yes
  • Has mounting plate
    No
Capa­city
  • Number of modules
    4
Func­tions
  • With conduit inlets
    Yes
Dimen­sions
  • Height
    225 mm
  • Width
    204 mm
  • Depth
    97.50 mm
  • Built-in height
    189 mm
  • Built-in width
    170 mm
  • Built-in depth
    72 mm
  • Number of width units
    4
Cover, door
  • Number of cabinet doors
    1
  • Number of locks
    0
  • Door/­cover is trans­parent
    No
Mater­ials
  • Material
    Plastic
  • RAL code
    9010
  • Colour
    Pure white
  • Ultra­vi­olet-res­istant
    No
Safety
  • Protec­tion class
    Isol­a­tion class II
  • Impact resist­ance IK
    IK07
  • Locking type
    Snap on lock, Without lock
  • Glow wire test
    650 °C

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes
REACh-SVHC free Yes

Certifications and documents

Encl.,gamma,surface m.,26 M,version FR
PDF
1,48 MB
Hager REACH declaration VF104PF
PDF
Hager RoHS report VF104PF
PDF

Downloads

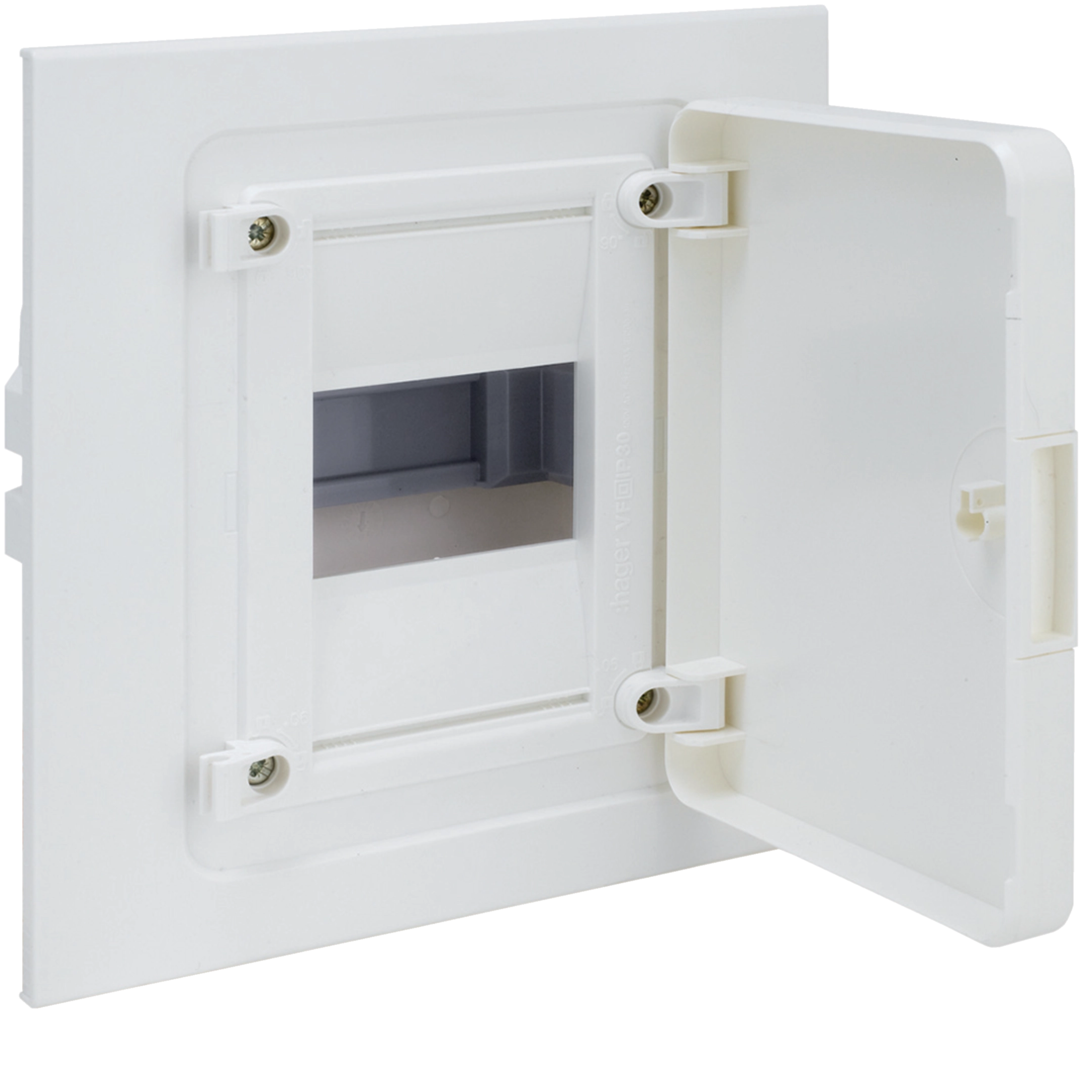

  • Image VF104PF | Hager

    Product Image VF104PF

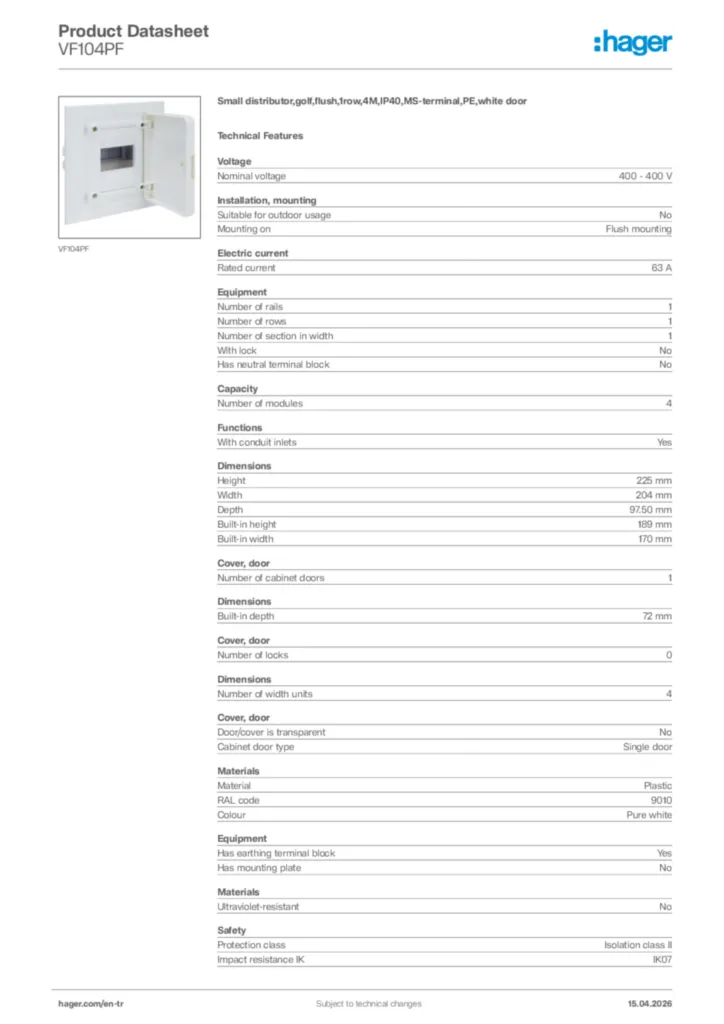

  • Product datasheet

    Image Hager Product data sheet VF104PF | Hager

    Hager Product data sheet VF104PF

    Small distributor,golf,flush,1row,4M,IP40,MS-terminal,PE,white door

    PDF

  • Installation manual

    Image Installation manual International 2015-07-13 | Hager

    Installation manual International 2015-07-13

    PDF
    4,16 MB

  • Declaration of conformity

    Image Declaration of conformity en-GB 2025-06-25 | Hager

    Declaration of conformity en-GB 2025-06-25

    PDF
    487,74 kB
