    Plug adaptator radio, ON/OFF, 10/16A, SCHUKO TRC270D

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Plug adaptator radio, ON/OFF, 10/16A, SCHUKO

    TRC270D

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Connectivity
    • Radio protocol
      KNX Radio
    • Receiver category
      2
    • With bus system KNX
      No
    • With bus system KNX radio
      Yes
    Settings
    • Supported config­ur­a­tion mode
      ETS, easy, quick­link
    Dimen­sions
    • Height
      54 mm
    • Width
      98 mm
    • Depth
      77 mm
    • Built-in depth
      40 mm
    Mater­ials
    • Colour
      White
    Equip­ment
    • Radio frequency bidirec­tional
      Yes
    • With switch for manual switch
      Yes
    Elec­tric current
    • Rated current
      16 A
    • Switching current
      16 A
    Frequency
    • Frequency
      50 - 50 Hz
    • Radio recep­tion frequency
      868.30 - 868.30 MHz
    Power
    • Output power
      3,680 W
    • 230 V incan­des­cent and halogen lamp
      2,300 W
    Voltage
    • Oper­ating voltage
      230 - 230 V
    • Oper­ating voltage over bus
      21 - 32 V
    Safety
    • Ingress Protec­tion (IP) class
      IP30
    Use condi­tions
    • Oper­ating temper­ature
      0 - 45 °C
    Texts
    • Func­tion
      Easy addi­tional func­tions: +6 scenes, Repeat func­tion can be activ­ated to increase the radio range, Reset func­tion (to factory setting)

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration TRC270D
    PDF
    RoHS report TRC270D
    PDF

    Downloads

    • Image TRC270D | Hager

      Product Image TRC270D

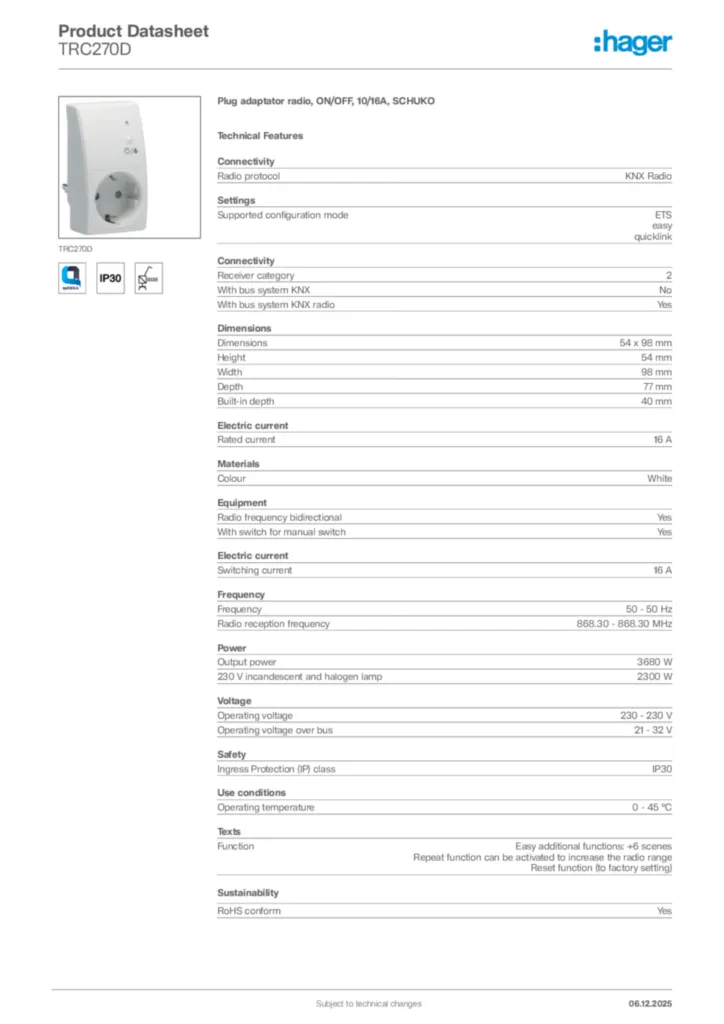

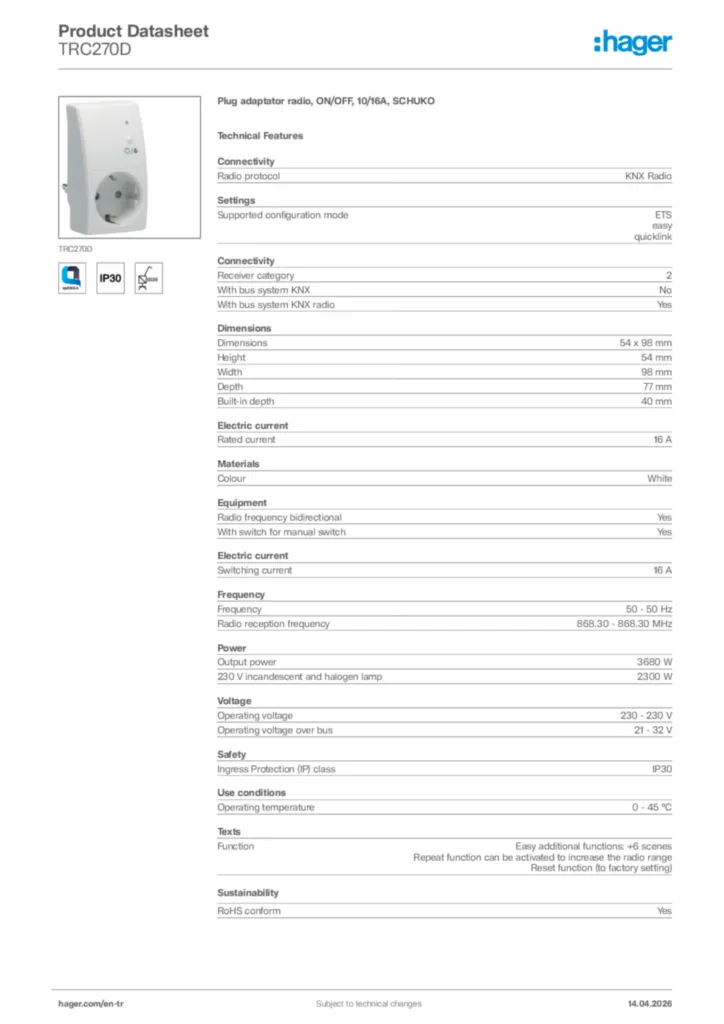

    • Product datasheet

      Image Hager Product data sheet TRC270D | Hager

      Hager Product data sheet TRC270D

      Plug adaptator radio, ON/OFF, 10/16A, SCHUKO

      PDF

    • Installation manual

      Image Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2022-11-25 | Hager

      Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2022-11-25

      PDF
      1,67 MB

    • Product attachment

      Image Notice de configuration quicklink pour produits radio | Hager

      Notice de configuration quicklink pour produits radio

      Product attachment en-GB, es-ES, nn-NO, pt-PT, sv-SE 2020-01-01

      PDF
      5,92 MB

    • KNX product database

      Image Logiciel d'application ETS du TRC270 | Hager

      Logiciel d'application ETS du TRC270

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      KNXPROD
      147,89 kB
      Image Logiciel d'application ETS du TRC270 | Hager

      Logiciel d'application ETS du TRC270

      KNX product database da-DK, en-GB, es-ES, fr-FR, de-DE, it-IT, nl-NL, pl-PL, pt-PT 2020-01-01

      VD5
      147,92 kB

    • Application Guide

      Image Description d'application ETS TRB201_TRE201_202_TRC270F_D_C | Hager

      Description d'application ETS TRB201_TRE201_202_TRC270F_D_C

      Application Guide en-GB, pl-PL 2020-01-01

      PDF
      1,37 MB

    • Declaration of conformity

      Image Declaration of conformity International 2023-05-03 | Hager

      Declaration of conformity International 2023-05-03

      PDF
      316,53 kB
