KNX radio timer quicklink, display, K.5, stainless steel matt, lacq. 85745273
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 42 products available
Referenced by
-
13337003Frame 3gang vert., K.5, al., al. anodised
-
13737006Frame 3gang hor., K.1, ant. matt, lacq.
-
13637004Frame 2gang hor., K.5, stainless steel, metal matt finish
-
13537003Frame 5gang vert., K.5, al., al. anodised
-
13737004Frame 3gang hor., K.5, stainless steel, metal matt finish
-
13337004Frame 3gang vert., K.5, stainless steel, metal matt finish
-
13437004Frame 4gang vert., K.5, stainless steel, metal matt finish
-
13537004Frame 5gang vert., K.5, stainless steel, metal matt finish
-
85020100Power supply for KNX radio application module, KNX Radio
-
13937004Frame 5gang hor., K.5, stainless steel, metal matt finish
-
13437003Frame 4gang vert., K.5, al., al. anodised
-
13937003Frame 5gang hor., K.5, al., al. anodised
-
13837003Frame 4gang hor., K.5, al., al. anodised
-
13737003Frame 3gang hor., K.5, al., al. anodised
-
13637003Frame 2gang hor., K.5, al., al. anodised
-
13537006Frame 5gang vert., K.1, ant. matt, lacq.
-
13437006Frame 4gang vert., K.1, ant. matt, lacq.
-
13337006Frame 3gang vert., K.1, ant. matt, lacq.
-
13937006Frame 5gang hor., K.1, ant. matt, lacq.
-
13837006Frame 4gang hor., K.1, ant. matt, lacq.
Technical properties
Settings
-
Supported configuration modequicklink
Connectivity
-
With bus system KNX radioYes
-
Radio protocolKNX Radio
Equipment
-
Number of channels1
-
Summer-/wintertime switchoverYes
Scope of delivery
-
Bus connection includedYes
Functions
-
Astro time shift2 h
-
Battery backup8 h
-
Power reserve in years0
Use conditions
-
Operating temperature-5 - 45 °C
Texts
-
FunctionEasy additional functions: +6 scenes, dimming, 1 up/down button control, priority, Configurable transmission and/or reception behaviour, With keylock, Party function, no execution of automatic, radio and extension unit commands (switch protection), Reset function (to factory setting)
-
ProtectionWith dismantling protection
Capacity
-
Number of modules0
Dimensions
-
Height55.10 mm
-
Width70.50 mm
-
Depth30.10 mm
-
Related SystemsK.x
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

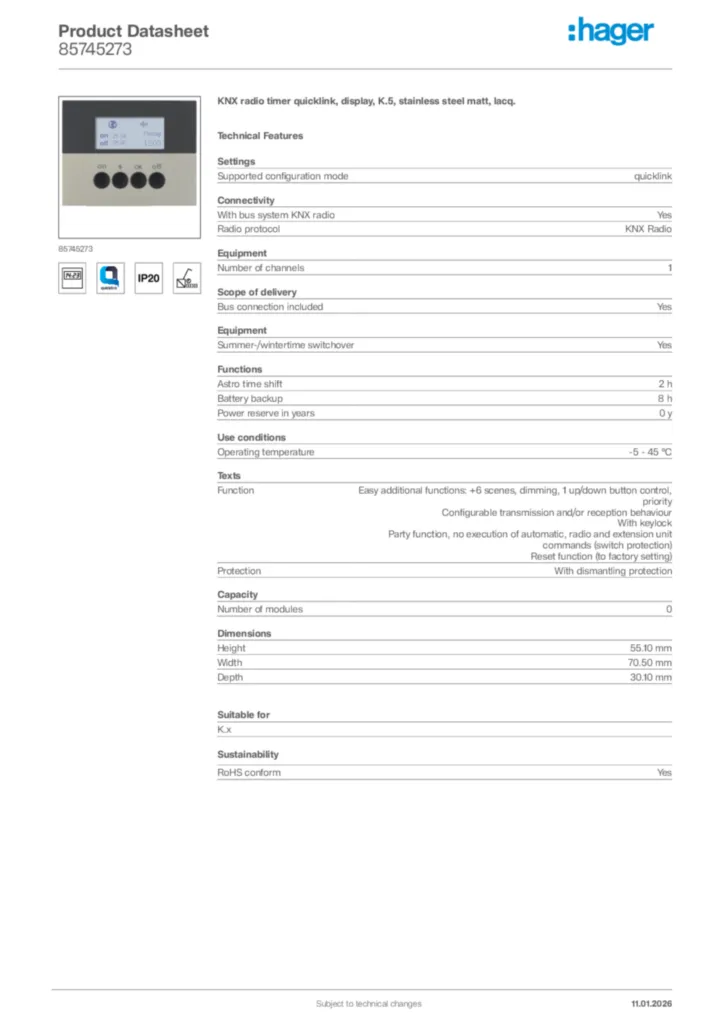

Product datasheet
Hager Product data sheet 85745273
KNX radio timer quicklink, display, K.5, stainless steel matt, lacq.
PDF -
Installation manual
Installation manual en-GB 2022-05-23
PDF1,30 MB -
KNX product database
KNX Database (from ETS3) for 856551xx-856552xx - KNX radio wall-transmitter 1gang flat quicklink (V101)
KNX product database International 2020-01-01
VD514,64 MB
KNX Database (from ETS3) for 857452xx - KNX radio timer quicklink (V100)
KNX product database International 2020-01-01
VD516,04 MB
KNX Database (from ETS4) for 856551xx-856552xx - KNX radio wall-transmitter 1gang flat quicklink (V101)
KNX product database International 2020-01-01
KNXPROD12,24 MB
KNX Database (from ETS4) for 857452xx - KNX radio timer quicklink (V100)
KNX product database International 2020-01-01
KNXPROD13,42 MB -
Application Guide
Application description ETS for 857452xx - KNX radio timer quicklink (EN, vers. 6T8014-52A)
Application Guide en-GB, pl-PL 2013-01-17
PDF1,57 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF285,63 kB
Declaration of Conformity
Declaration of conformity International 2021-05-04
PDF291,50 kB
