Blind insert comf, electronics 85221100
EAN
4011334375906
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (22)
Accessories mandatory
-
85741182Blind time switch, display, S.1, white glossy
-
85241183Shutter push-button, S.1/B.7, al., matt, lacq.
-
85241185Shutter push-button, S.1/B.3/B.7, ant., matt
-
85241188Shutter push-button, S.1/B.3/B.7, p. white, matt, plastic
-
85745175KNX radio blind time switch quicklink, display, K.1, ant. matt, lacq.
-
85241131Shutter push-button, R.1/R.3/1930/R.cl., black glossy
-
85241139Shutter push-button, R.1/R.3/1930/R.cl., p. white glossy
-
85741177Blind time switch, display, K.5, al., matt, lacq.
-
85741175Blind time switch, display, K.1, ant. matt, lacq.
-
85741179Blind time switch, display, K.1, p. white glossy
-
85741189Blind time switch, display, S.1/B.3/B.7, p. white glossy
-
85741188Blind time switch, display, S.1/B.3/B.7, p. white, matt, plastic
-
85241173Shutter push-button, K.5, stainless steel matt, lacq.
-
85241177Shutter push-button, K.5, al., matt, lacq.
-
85241175Shutter push-button, K.1, ant. matt, lacq.
-
85241179Shutter push-button, K.1, p. white glossy
-
85241126Shutter push-button, Q.x, ant. velvety, lacq.
-
85241129Shutter push-button, Q.x, p. white velvety
-
85241189Shutter push-button, S.1/B.3/B.7, p. white glossy
-
85241182Shutter push-button, S.1, white glossy
Technical properties
Voltage
-
Operating voltage230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-5 - 45 °C
Dimensions
-
Built-in depth32 mm
Texts
-
Switch modeWith 2 mechanically and electrically mutually-locked relay contacts
-
Extension unit inputWith 230 V extension unit inputs for up and down
-
JunctionCircuiting of extension units push-buttons for blinds, blind inserts, key push-buttons for blinds
-
Type of connectionWith screw terminals
Downloads
-

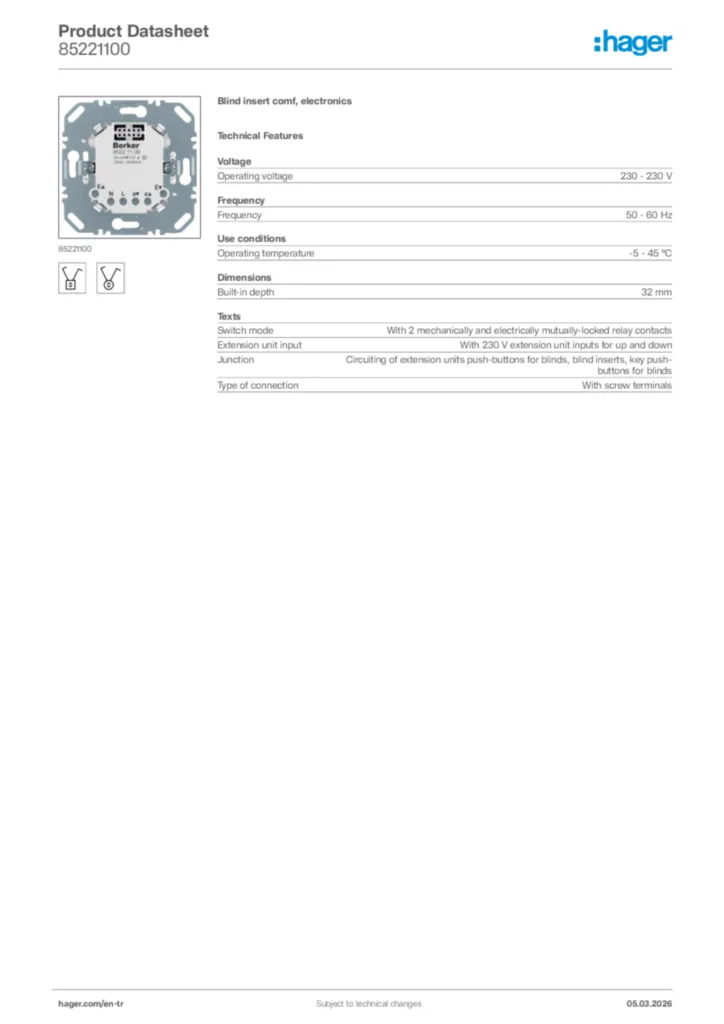

Product datasheet
