Push-button module 1gang, intg temp. sensor+bus coupl. unit,KNX-S.1/B.3/B.7 80141180
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
Compatible products
-
Referenced by 16 products available
Referenced by
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10228919Frame 2gang hor., lab. field, S.1, p. white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10149909Frame 4gang, S.1, p. white, matt, plastic
-
10148989Frame 4gang, S.1, p. white glossy
-
10148982Frame 4gang, S.1, white glossy
-
10139909Frame 3gang, S.1, p. white, matt, plastic
-
10129909Frame 2gang, S.1, p. white, matt, plastic
-
10128989Frame 2gang, S.1, p. white glossy
-
10128982Frame 2gang, S.1, white glossy
-
13098989Frame l. cut-out, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
10158989Frame 5gang, S.1, p. white glossy
-
10158982Frame 5gang, S.1, white glossy
-
80960289Cover for 1gang for push-button module, clearlens, S.1/B.3/B.7, p. white glossy
Technical properties
Installation, mounting
-
Mounting onFlush mounting
Use conditions
-
Operating temperature-5 - 45 °C
Electric current
-
Bus current consumption data transfer10 mA
Functions
-
With room temperature controllerNo
Dimensions
-
Built-in depth31 mm
-
Built-in depth flush-mounted boxes34 mm
-
Height71 mm
-
Width71 mm
-
Depth42 mm
Equipment
-
Number of actuation points2
Controls and indicators
-
With LED indicationYes
Materials
-
ColourLight grey
-
RAL code7035
-
MaterialMetal, Plastic
Accessories
-
Has labelling fieldNo
Screen
-
With displayNo
Texts
-
FunctionFunction for manual interruption of automatic functions already triggered
-
ProtectionWith dismantling protection
-
TemperatureIntegrated temperature sensor with output of the measured values via object
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

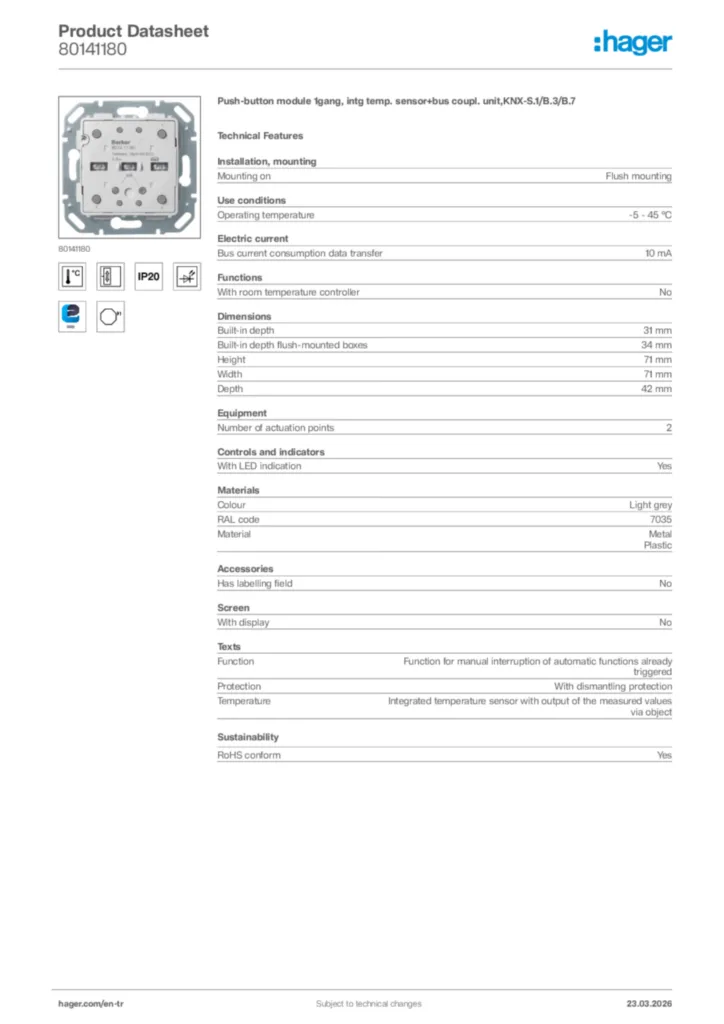

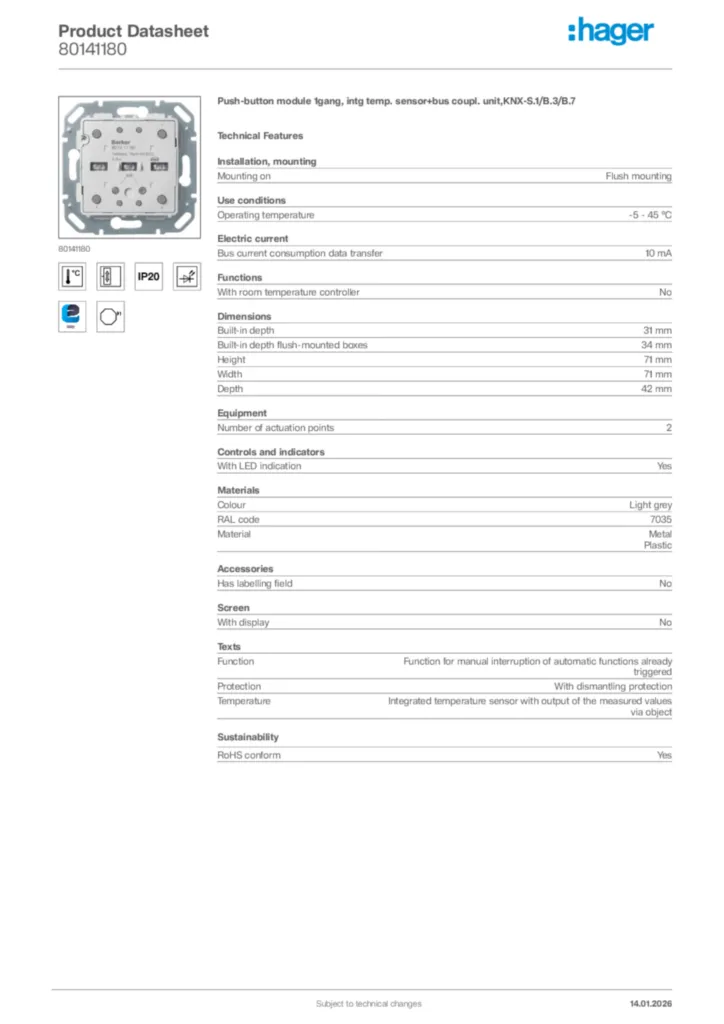

Product datasheet
Hager Product data sheet 80141180
Push-button module 1gang, intg temp. sensor+bus coupl. unit,KNX-S.1/B.3/B.7
PDF -
Installation manual
Installation manual en-GB 2021-09-30
PDF1,32 MB
Installation manual pl-PL, ru-RU, tr-TR 2021-09-30
PDF1,36 MB -
KNX product database
ETS4-ETS5 - KNX Database for KNX Push Button xgang
KNX product database International 2020-01-01
KNXPROD558,41 kB -
Application Guide
Application description EASY for 801411XX, 801421XX - Push button 1-/2gang with bcu (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF2,11 MB
Application description EASY for 801411XX, 801421XX - Push button 1-/2gang with bcu (EN, 2022-01), easy link
Application Guide en-GB 2022-01-17
PDF2,11 MB
Application description ETS for 801411XX-801421XX - KNX push button module with integrated bus application unit (EN, 2021-10)
Application Guide en-GB 2021-10-12
PDF2,13 MB
Application description ETS for 801411XX-801421XX - KNX push button module with integrated bus application unit (TR, 2021-11)
Application Guide tr-TR 2021-11-29
PDF2,18 MB -
Declaration of conformity
Declaration of Conformity
Declaration of conformity International 2021-07-30
PDF268,69 kB
Declaration of Conformity
Declaration of conformity International 2021-07-30
PDF255,22 kB
