Series push-button 2 NO contacts with common input terminal 5035
EAN
4011334030447
Packaging
10 Pieces
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Must-have accessories
See All (24)
Optional accessories
-
Illumination insert for domestic switching devices 1 products available
Compatible products
-
Referenced by 285 products available
Accessories mandatory
-
16271909Rocker 2gang, redlens , S.1/B.3/B.7, p. white, matt, plastic
-
14357006 -
14357004Rocker 2gang, K.5, stainless steel, metal matt finish
-
14357003Rocker 2gang, K.5, al., al. anodised
-
14357009Rocker 2gang, K.1, p. white glossy
-
16236084Rockers, Q.x, aluminium velvety, lacquered
-
16236086Rocker 2gang, Q.x, ant. velvety, lacq.
-
16236089Rocker 2gang, Q.x, p. white velvety
-
16232045Rocker 2gang, R.1/R.3, black glossy
-
16232089Rocker 2gang, R.1/R.3, p. white glossy
-
16271404Rocker 2gang, redlens , B.7, al., matt, lacq.
-
16271606Rocker 2gang, redlens , B.3/B.7, ant., matt
-
16276089Rocker 2gang, lens, Q.x, p. white velvety
-
16278982Rocker 2gang, redlens , S.1, white glossy
-
16278989Rocker 2gang, redlens , S.1/B.3/B.7, p. white glossy
-
16231404Rocker 2gang, B.7, al., matt, lacq.
-
16231606Rocker 2gang, B.3/B.7, ant., matt
-
16231909Rocker 2gang, S.1/B.3/B.7, p. white, matt, plastic
-
16238989Rocker 2gang, S.1/B.3/B.7, p. white glossy
-
16238982Rocker 2gang, S.1, white glossy
Referenced by
-
10128982Frame 2gang, S.1, white glossy
-
16238982
Rocker 2gang, S.1, white glossy
-
16272045Rocker 2gang, clearlens, R.1/R.3, black glossy
-
16272089Rocker 2gang, clearlens, R.1/R.3, p. white glossy
-
14377003Rocker 2gang, redlens , K.5, al., matt, lacq.
-
14377009Rocker 2gang, redlens , K.1, p. white glossy
-
16276089
Rocker 2gang, lens, Q.x, p. white velvety
-
10158982Frame 5gang, S.1, white glossy
-
10158989Frame 5gang, S.1, p. white glossy
-
10159909Frame 5gang, S.1, p. white, matt, plastic
-
13098989Frame l. cut-out, S.1, p. white glossy
-
10238919Frame 3gang hor., lab. field, S.1, p. white glossy
-
10128989Frame 2gang, S.1, p. white glossy
-
10129909Frame 2gang, S.1, p. white, matt, plastic
-
14357006
-
10148982Frame 4gang, S.1, white glossy
-
10148989Frame 4gang, S.1, p. white glossy
-
10149909Frame 4gang, S.1, p. white, matt, plastic
-
10128919Frame 2gang vert., lab. field, S.1, p. white glossy
-
10138919Frame 3gang vert., lab. field, S.1, p. white glossy
Technical properties
Electric current
-
Switching current10 A
-
Momentary contact current10 A
Voltage
-
Rated voltage250 V
Architecture
-
Control/operation elementDouble rocker
-
Number of poles1
Materials
-
MaterialMetal, Plastic
-
TreatmentUntreated
-
TransparentNo
Dimensions
-
Height70.80 mm
-
Width70.80 mm
-
Depth41.60 mm
-
Built-in depth32.30 mm
-
Built-in depth flush-mounted boxes35 mm
Installation, mounting
-
Mounting onFlush mounting
Controls and indicators
-
Number of buttons2
-
Type of push buttonSeries push button
-
With feedback signal contactNo
Connectivity
-
Type of connectionquickconnect
Safety
-
Ingress Protection (IP) classIP20
-
Impact resistance IKIK07
Accessories
-
Has labelling fieldNo
-
Related SystemsK.x, Q.x, R.x, S.x/B.x
Downloads
-

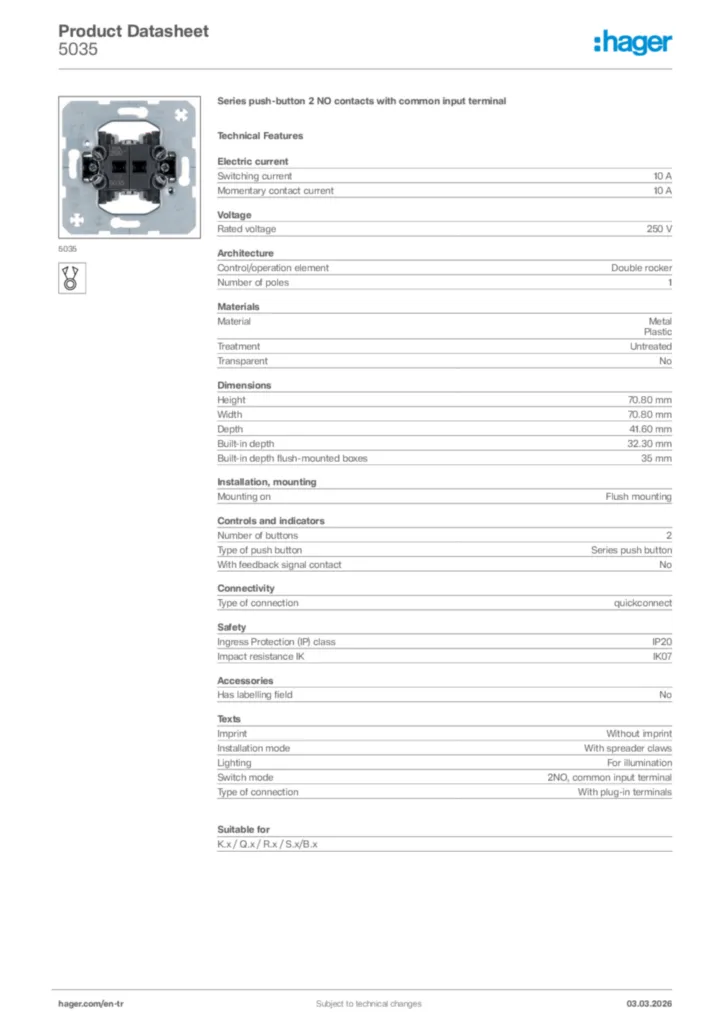

Product datasheet
Hager Product data sheet 5035
Series push-button 2 NO contacts with common input terminal
PDF -
Declaration of conformity
EU Declaration of Conformity
dc24-1015
PDF334,72 kB
More documentation
