invicta Panelboards
Your simple energy distribution solution.
As an industry leader in power distribution, we strive to create innovative products that make installations faster and more cost effective.

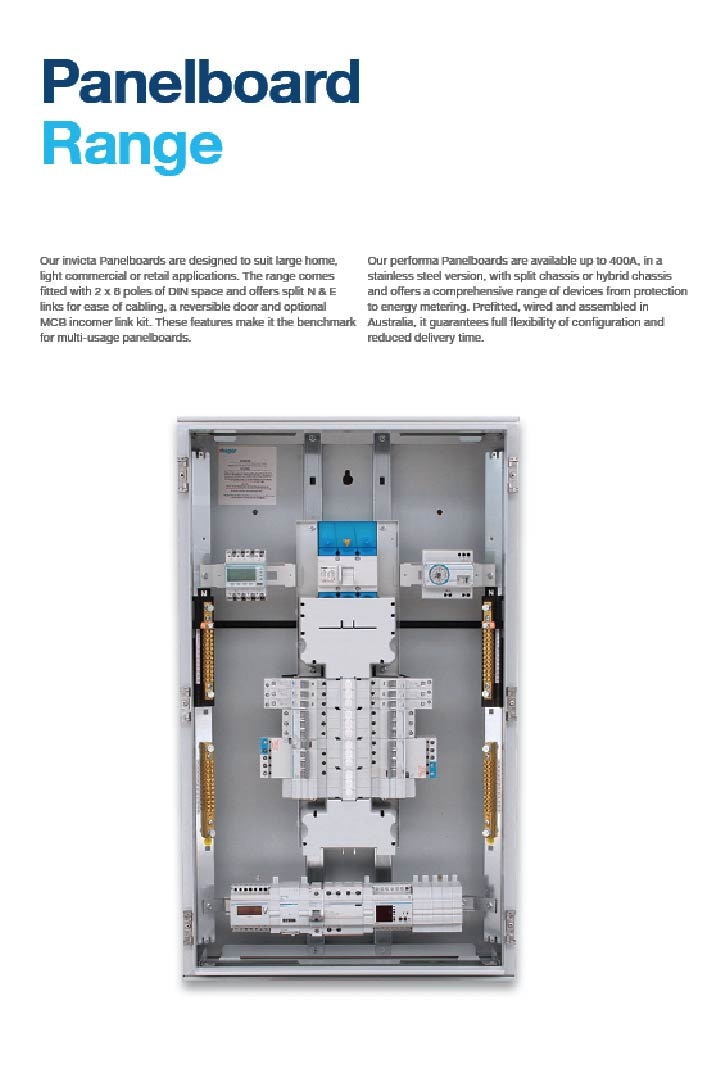

Developed as an optimised solution for small to medium commercial installations and large home projects; our range of invicta panelboards offer simple and efficient possibilities for energy distribution in your commercial projects.
Available in 24, 36, 48, 60 & 72 pole and compatible with the onekombo 6kA range of modular protection devices, our invicta panelboard range is ideal for the large home, light commercial or retail applications.
The invicta range comes fitted with 2 x 8 poles of DIN space for mounting additional modular devices such as emergency lighting test kits, contactors, surge protection or sub-metering devices.
Features and Benefits
Fitted with a strong, 160A or 250A main isolator, providing higher robustness in the connection terminals.
Incomer link kits provide options for the use of an MCB as the main incomer where the application requires protection of circuits against overloads and short circuits.
Additional neutral link provides greater flexibility and accessibility during installation. Neutral link covers provide additional IP2x protection.
Larger connection points for Neutral and Earth links makes the invicta board easily accessible during and after installation.
The chassis has been designed to take Hager’s onekombo range of 6kA single module RCBOs and 6kA MCBs.
The 16 poles of additional DIN space in the top of the board makes it easy to accomodate extra devices.
Cable tie access points allow easy cable management within the enclosure making it neat and tidy.
The additional 36 poles of DIN rail available within the optional extension box can be used for mounting modular energy control and indication devices.
Download
-
PDF4.5 Mb -
PDF7.3 Mb
-
PDF5.5 Mb
View our range
JVC2400S16TW
with 160A main switch
JVC3600S16TW
with 160A main switch
JVC4800S16TW
with 160A main switch
JVC7200S16TW
with 160A main switch
JVC2400S25TW
with 250A main switch
JVC6000S25TW
with 250A main switch
