    The Hager Silhouette 10A Twin Socket, horizontal with shutter, provides safe, elegant power access for residential and light commercial use. Rated 250 V/10 A to AS/NZS 3112, it includes child-safety shutters and enhanced contact protection. Robust IK08, IP20. Flush-mounted with screw terminals, glossy white thermoplastic finish blends seamlessly into interiors. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.
    EAN
    3250617580571
    Packaging
    10
    • Sockets

    Hager Silhouette twin socket outlet 10A 250V AS/NZS 3112 horizontal shuttered WBSP2S

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Hager Silhouette twin socket outlet 10A 250V AS/NZS 3112 horizontal shuttered

    WBSP2S

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Accessor­ies/s­pare parts for domestic switching devices 2 products available
    • Surface-­mounted housing for flush-­mounted switching device 1 products available

    Complete your system

    • Accessor­ies/s­pare parts for domestic switching devices
    • Surface-­mounted housing for flush-­mounted switching device
    • WBSCP2-AL

      Silhouette 2G socket cover AL
      EUR 0.00  / *
    • WBSCP2-SS

      Silhouette 2G socket cover SS
      EUR 0.00  / *
    • WBSBMI

      Silhouette Insulated Mounting Block White
      EUR 0.00  / *

    Technical properties

    Voltage
    • Rated voltage
      250 V
    Elec­tric current
    • Rated current
      10 A
    Frequency
    • Frequency
      50 - 50 Hz
    Mater­ials
    • Colour
      White
    • Surface finish
      Glossy
    • Material
      Polycar­bonate (PC), Ther­mo­plastic
    • Treat­ment
      Untreated
    Dimen­sions
    • Height
      77 mm
    • Width
      117 mm
    • Depth
      33 mm
    • Built-in depth flush-­mounted boxes
      23 mm
    • Built-in depth
      23 mm
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    Connectivity
    • Type of connec­tion
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    Equip­ment
    • Connect­or/plug type socket outlet
      Australian standard AS/NZS 3112
    • Rotated central insert
      No
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    Cover, door
    • Type of lid
      Without lid
    Capa­city
    • Number of modules
      2
    Safety
    • With enhanced contact protec­tion
      Yes
    • Impact resist­ance IK
      IK08
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No
    • Related Systems
      silhou­ette

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - Socket-outlet 2-gang Wago plug/clamp technique C-Profile in traffic white (English)
    PDF
    48,73 MB
    Hager RoHS report WBSP2S
    PDF

    Downloads

    • Product image

      Image WBSP2S | Hager Australia

      Product Image WBSP2S

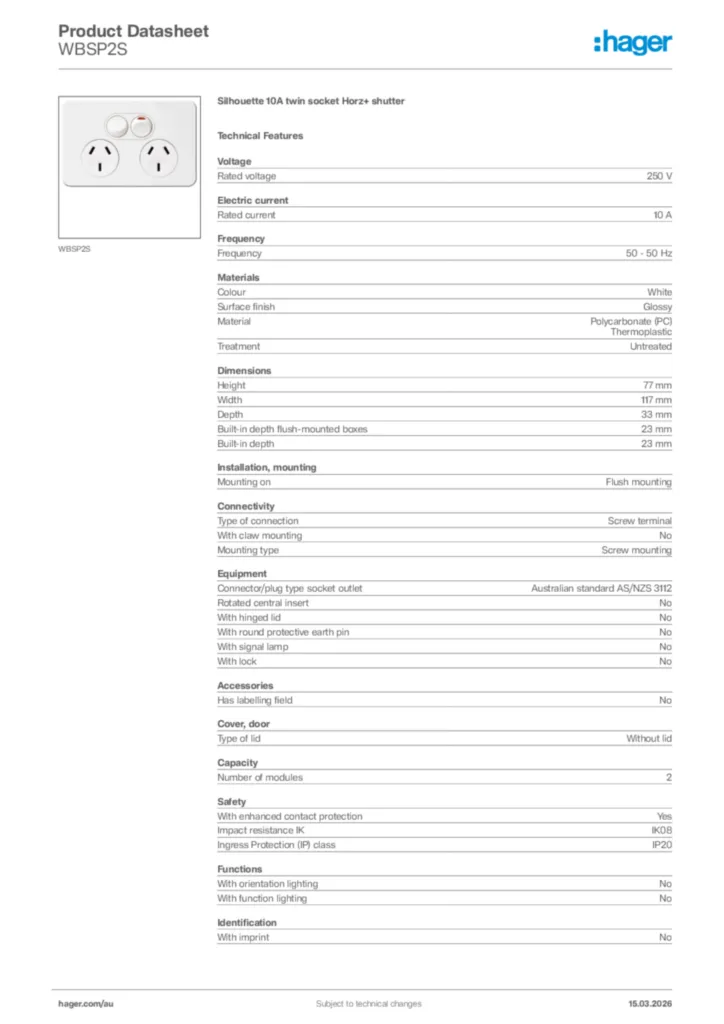

    • Product datasheet

      Image Hager Product data sheet WBSP2S | Hager Australia

      Hager Product data sheet WBSP2S

      Silhouette 10A twin socket Horz+ shutter

      PDF
