main New South Wales enclosure VYMBNSW
EAN
3250611005360
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Door/operating panel 1 products available -
Small distribution board 1 products available
Technical properties
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Breaking and opening capacity Idm0
Equipment
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisNo chassis
Capacity
-
Number of modules8
Dimensions
-
Height688 mm
-
Width488 mm
-
Depth278 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP23
-
Locking typeSnap on lock, Without lock
Architecture
-
Number of poles24
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

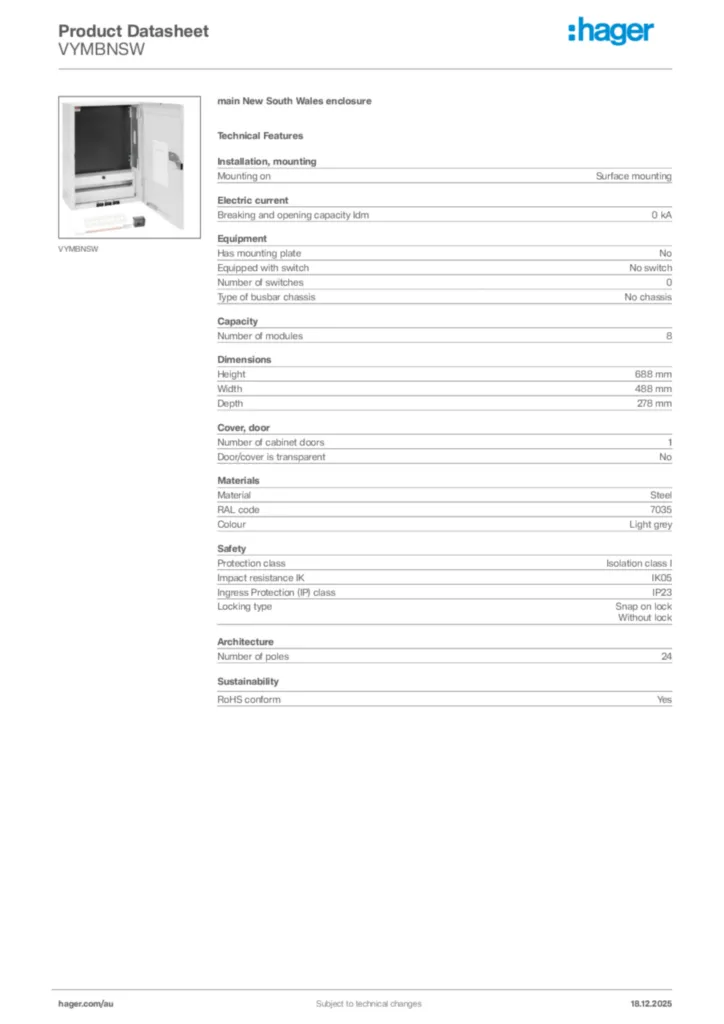

Hager Product data sheet VYMBNSW
main New South Wales enclosure
PDF -
Installation manual
Installation manual International 2020-10-14
PDF1,10 MB
