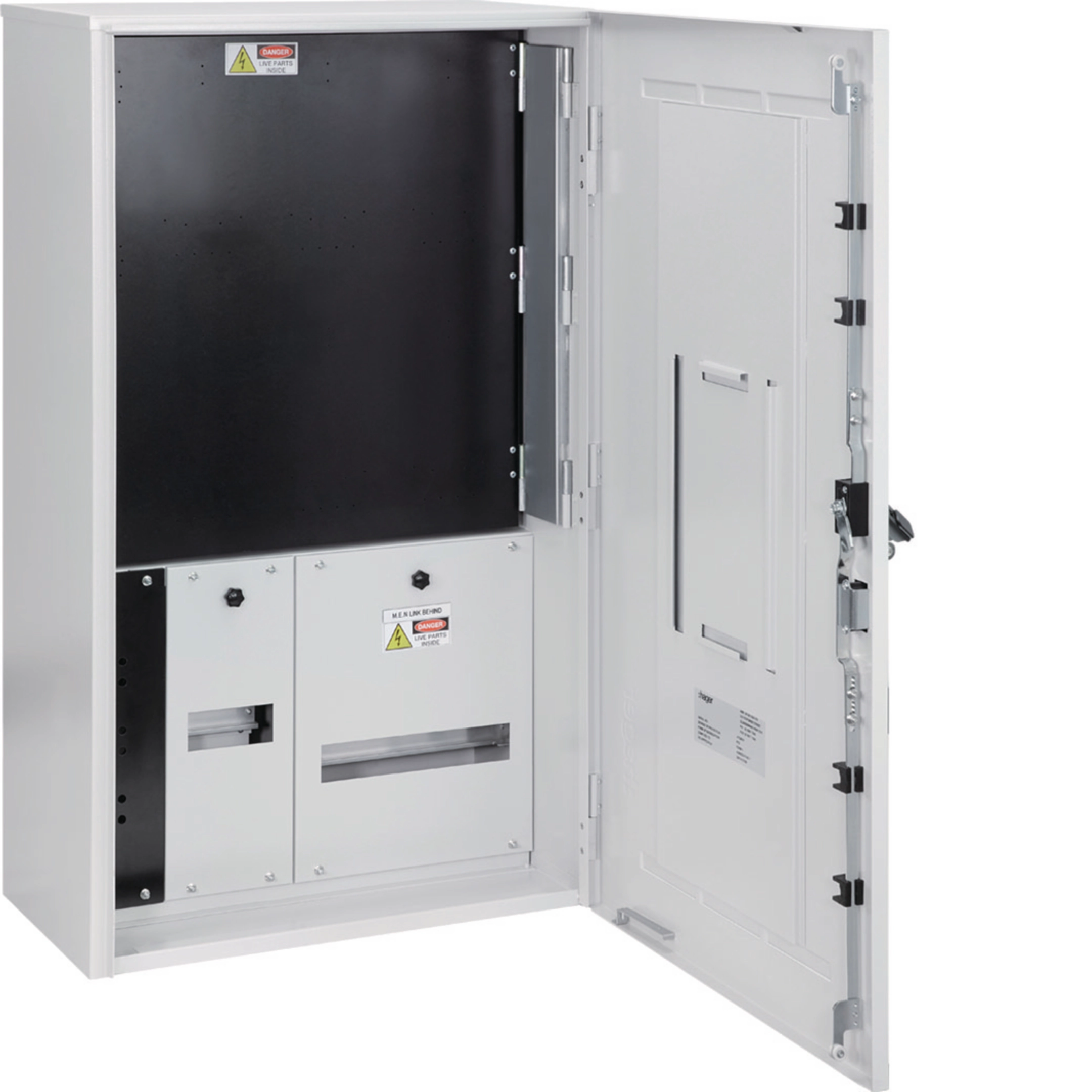

Hager The Hager Group Metering Encl VIC, 9 is a robust steel enclosure for multi-tenant metering in Victorian installations. Surface-mounted with DIN rail, it accommodates 7 modules and up to 22 poles, ideal for consolidating meters and protection devices. IP23 and IK05 ensure durability in sheltered areas, with Isolation Class I. A 3-point lever lock secures the single door. Size: 1350×625×360 mm, RAL7035 light grey.
EAN
3250611005629
Packaging
1 Piece
Group Metering Enclosure 9-way IP23 IK05 Steel Surface mount 3-point lock VYGMV9
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Base/base element 1 products available
Technical properties
Installation, mounting
-
Mounting onDIN rail, Surface mounting
Electric current
-
Breaking and opening capacity Idm0
Equipment
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisNo chassis
Capacity
-
Number of modules7
Dimensions
-
Height1350 mm
-
Width625 mm
-
Depth360 mm
Cover, door
-
Number of cabinet doors1
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP23
-
Locking type3-point lever
Architecture
-
Number of poles22
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

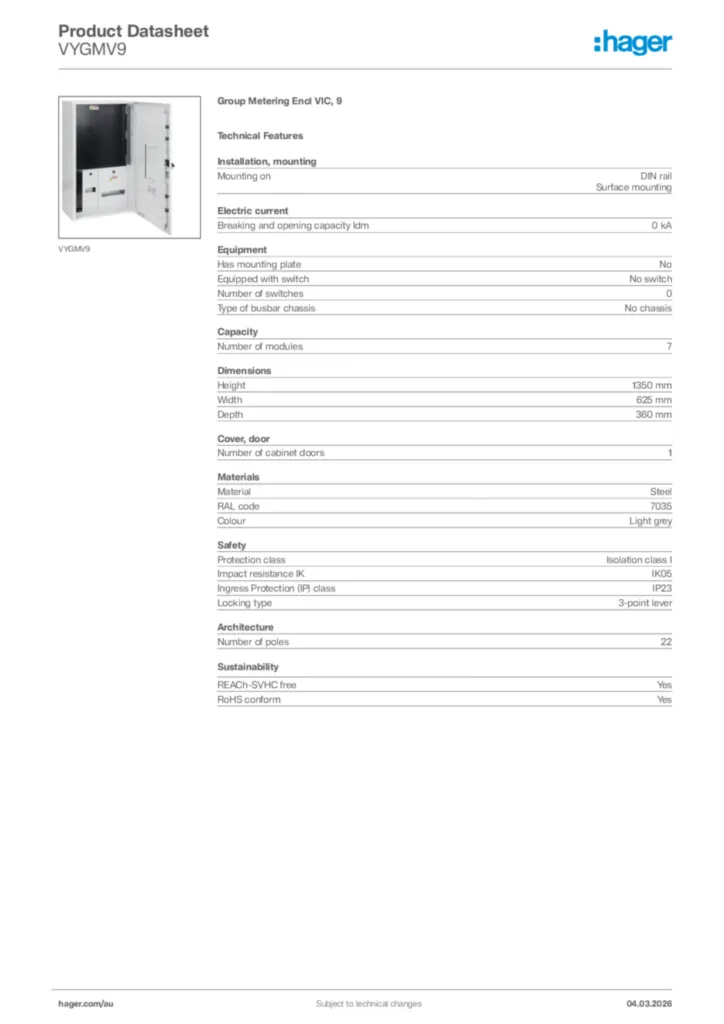

Hager Product data sheet VYGMV9
Group Metering Encl VIC, 9
PDF -
Product attachment
Product attachment en-GB 2025-10-21
PDF237,50 kB
