Hager The Hager Group Metering Enclosure SA, 4, Wired delivers consolidated tenant metering and robust protection. Pre-wired with 1 MCCB (Idm 25 kA), it secures the incomer. Two DIN-rail rows house 14 modules/14 poles. Surface-mount steel cabinet (RAL7035) with IP23, IK05 and Class I insulation, locked by a 3-point lever. Dimensions 1050×440×360 mm. Ideal for multi-dwelling and light commercial installations.
EAN
3250611005483
Packaging
1 Piece
Group Metering Enclosure 2-row 14M MCCB 25kA IP23 IK05 Surface Mount VYGMS4W
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mounting plate for distribution board 1 products available
Technical properties
Installation, mounting
-
Mounting onDIN rail, Surface mounting
Electric current
-
Breaking and opening capacity Idm25 kA
Equipment
-
Number of rows2
-
Has mounting plateNo
-
Equipped with switchMCCB
-
Number of switches1
-
Type of busbar chassisNo chassis
Capacity
-
Number of modules14
Dimensions
-
Height1050 mm
-
Width440 mm
-
Depth360 mm
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP23
-
Locking type3-point lever
Architecture
-
Number of poles14
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

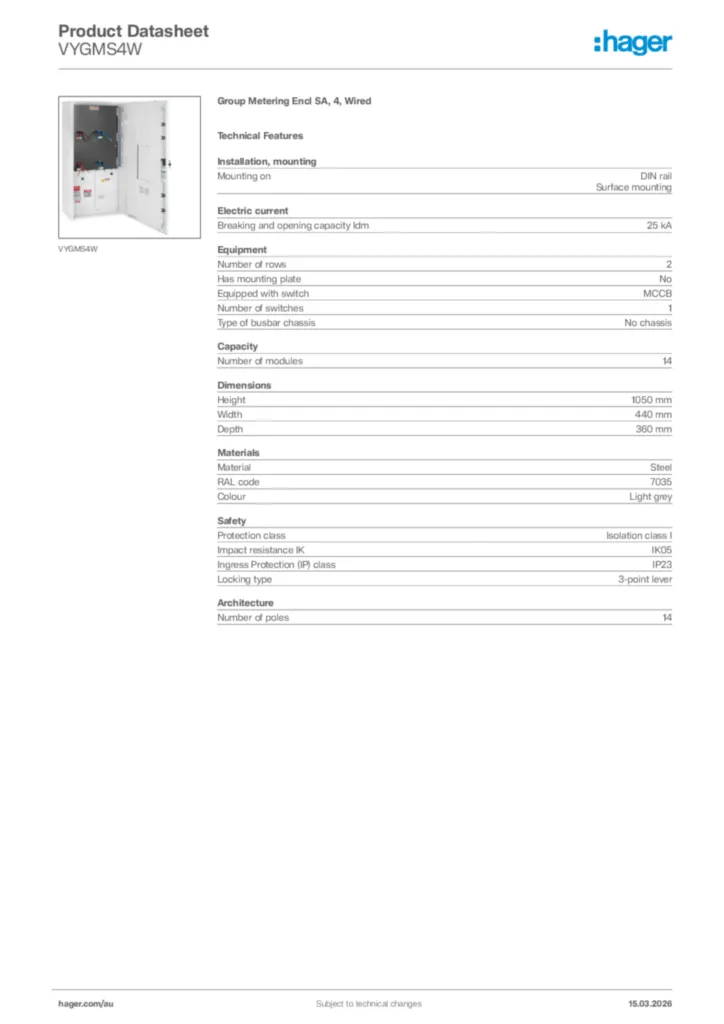

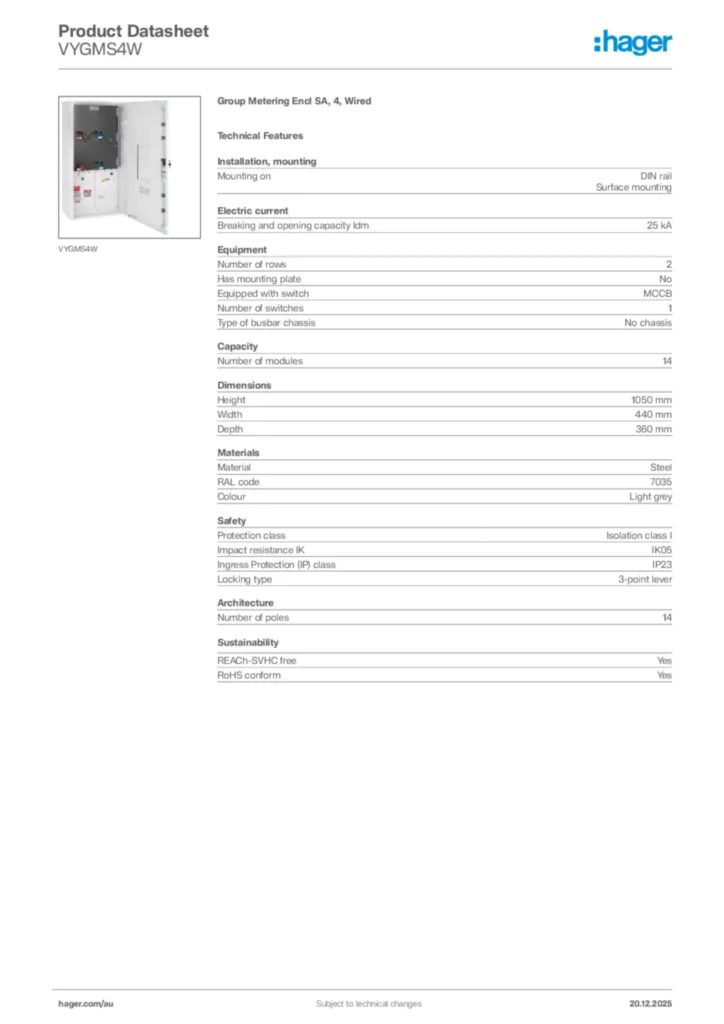

Product datasheet
Hager Product data sheet VYGMS4W
