The Hager 3-pole 100A Modular Switch with red toggle provides reliable isolation and manual switching of three-phase circuits up to 400 V AC. Rated AC21/AC22 100 A with 6 kV impulse withstand, 1.69 kA making and 1.2 kA short-time withstand, it suits motor and mixed loads. Compact 3-module design, IP20, screw terminals (6-50 mm²), and 40,000 mechanical ops ensure safe, durable use in distribution boards. Suitable for DIN rail mounting in residential and commercial switchboards.
EAN
3250611005506
Packaging
1 Piece
Hager Group Metering Enclosure 2-row 20M MCCB 25kA IP23 IK05 Surface mount VYGMS6W
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mounting plate for distribution board 1 products available
Technical properties
Installation, mounting
-
Mounting onDIN rail, Surface mounting
Electric current
-
Breaking and opening capacity Idm25 kA
Equipment
-
Number of rows2
-
Has mounting plateNo
-
Equipped with switchMCCB
-
Number of switches1
-
Type of busbar chassisNo chassis
Capacity
-
Number of modules20
Dimensions
-
Height1050 mm
-
Width625 mm
-
Depth360 mm
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP23
-
Locking type3-point lever
Architecture
-
Number of poles20
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

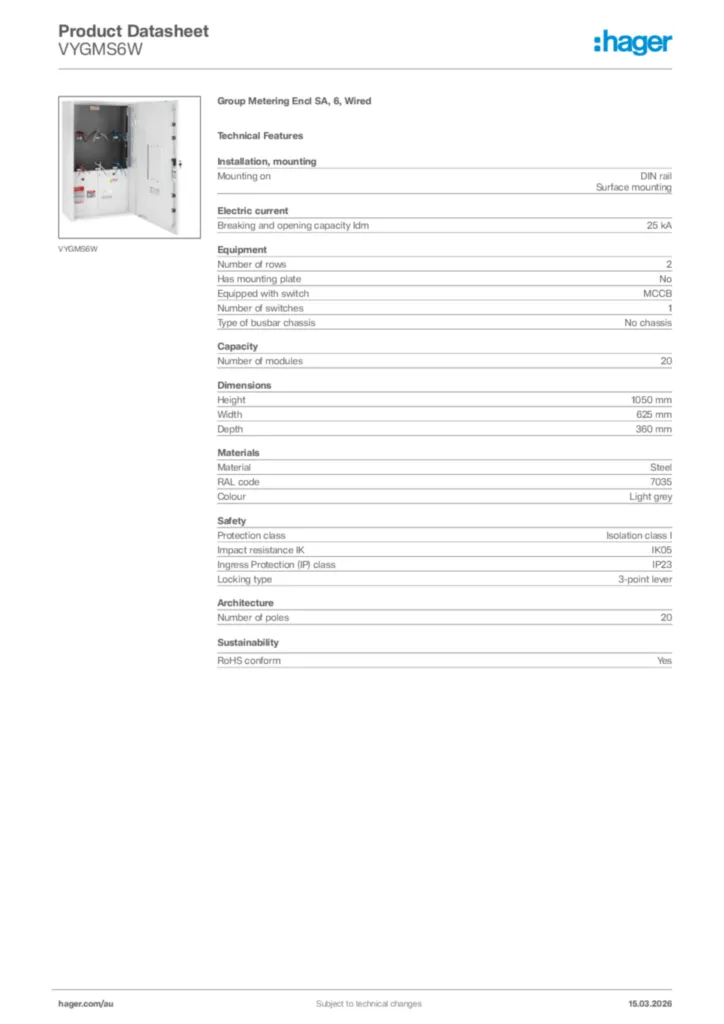

Product datasheet
Hager Product data sheet VYGMS6W
Group Metering Encl SA, 6, Wired
PDF -
Product attachment
Product attachment en-GB 2025-10-21
PDF237,50 kB
