Group Metering Encl NSW, 9

VYGMN9

  • Enclosures

Group Metering Encl NSW, 9 VYGMN9

EAN
3250611005605
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Lock system 2 products available

Complete your system

  • Lock system
  • VZGM008

    Undrilled Panel for GMN6
    EUR 0.00  / *
    Add to a list
    Add to a list
  • VZGM009

    Undrilled Panel for GMN9
    EUR 0.00  / *
    Add to a list
    Add to a list

Technical properties

Installation, mounting
  • Mounting on
    DIN rail, Surface mounting
Equipment
  • Has mounting plate
    No
Capacity
  • Number of modules
    32
Dimensions
  • Height
    1350 mm
  • Width
    625 mm
Cover, door
  • Number of cabinet doors
    1
Materials
  • Material
    Steel
  • RAL code
    7035
Safety
  • Protection class
    Isolation class I
  • Impact resistance IK
    IK05
  • Ingress Protection (IP) class
    IP23
  • Locking type
    3-point lever

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes
REACH conform Yes

Downloads

  • Product image

    Image VYGMN9 | Hager Australia

    Product Image VYGMN9

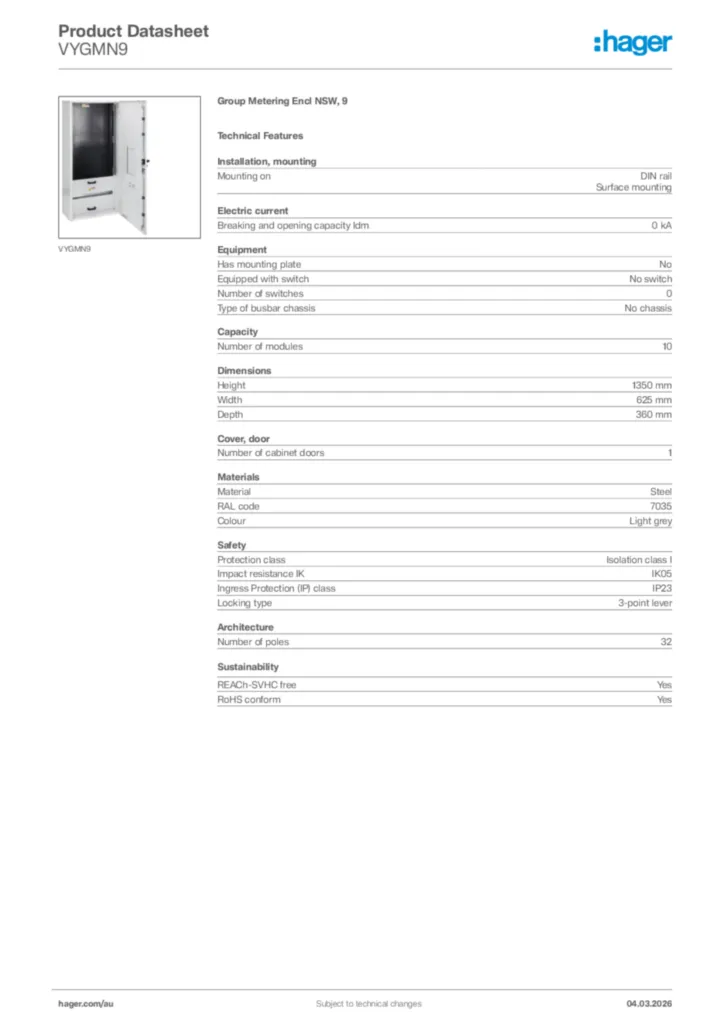

  • Product data sheet

    Image Group Metering Enclosure Product Data and Specification | Hager Australia

    Group Metering Enclosure Product Data and Specification

    Product data sheet en-GB 2020-06-03

    PDF
    153,78 kB
