Hager Group Metering Enclosure VIC, 8, Wired centralises metering and switching for multi-dwelling or light commercial boards. Supplied wired with 8 automatic transfer switches (6 kA), 22 poles and 7 modules on DIN rail for supply changeover and protection. Surface-mount steel IP23 IK05 cabinet (1350x625x360) RAL7035, Class I insulation, 3-point lever lock. Designed for residential/commercial switchboards; DIN rail mounting and compliant electrical distribution.
EAN
3250611005582
Packaging
1 Piece

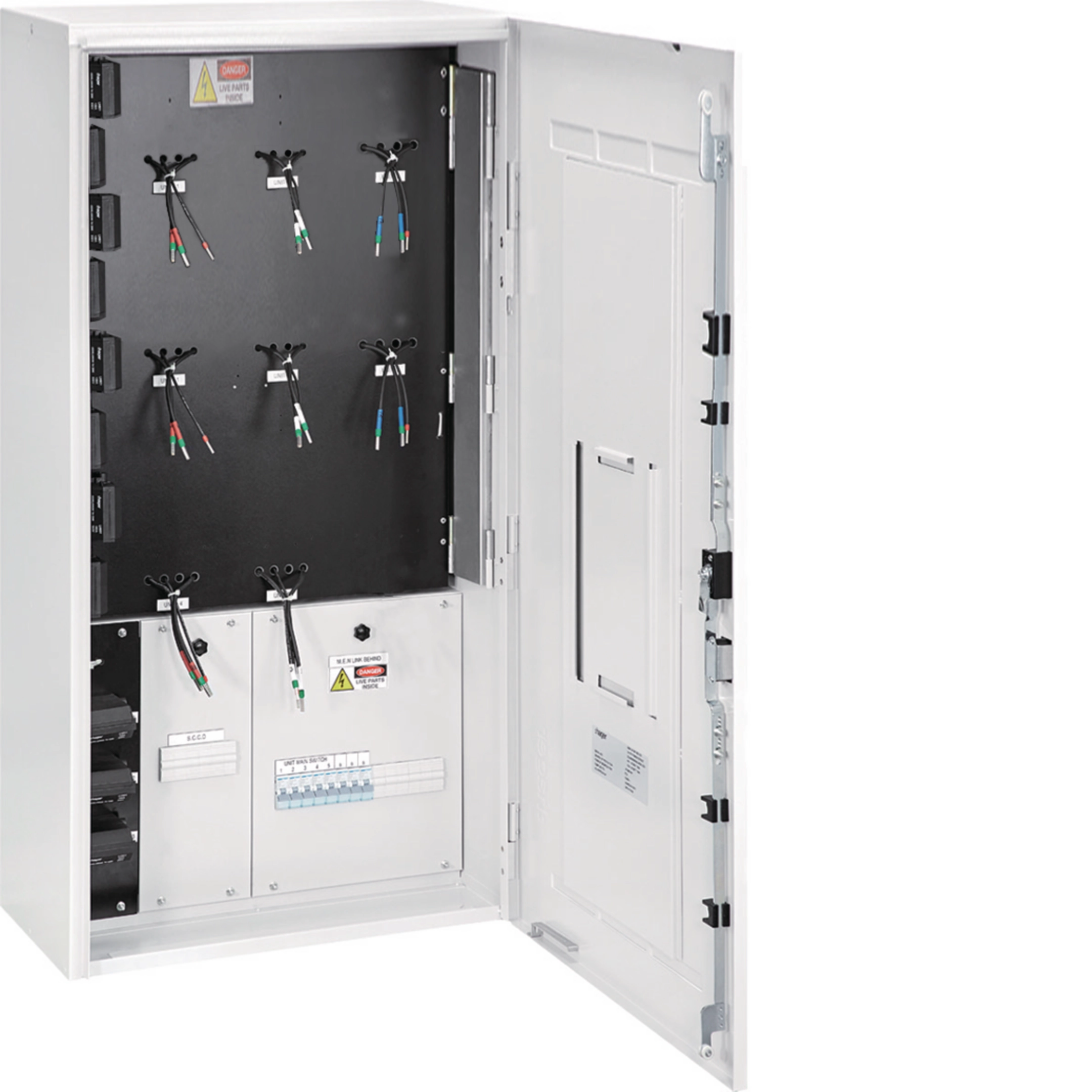

Hager Group Metering Enclosure VIC 8 Wired ATS 6kA IP23 IK05 Steel 22-pole VYGMV8W
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-

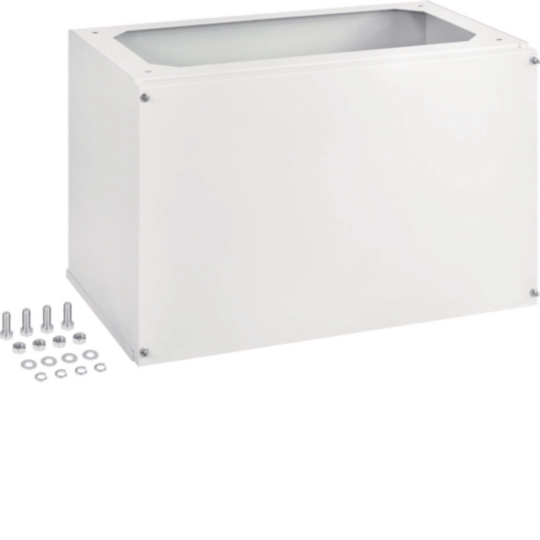

Base/base element 1 products available -
Mounting plate for distribution board 1 products available
Technical properties
Installation, mounting
-
Mounting onDIN rail, Surface mounting
Electric current
-
Breaking and opening capacity Idm6 kA
Equipment
-
Has mounting plateNo
-
Equipped with switchAutomatic transfer switch
-
Number of switches8
-
Type of busbar chassisNo chassis
Capacity
-
Number of modules7
Dimensions
-
Height1350 mm
-
Width625 mm
-
Depth360 mm
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP23
-
Locking type3-point lever
Architecture
-
Number of poles22
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

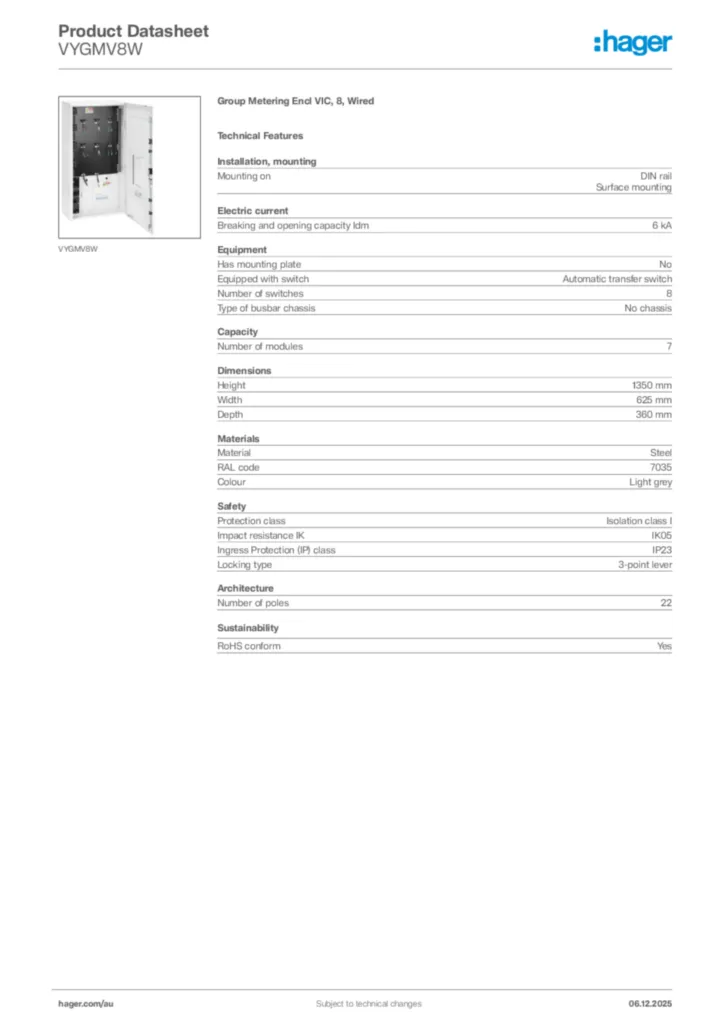

Product datasheet
Hager Product data sheet VYGMV8W
Group Metering Encl VIC, 8, Wired
PDF -
Product attachment
Product attachment en-GB 2025-10-21
PDF237,50 kB
More documentation
