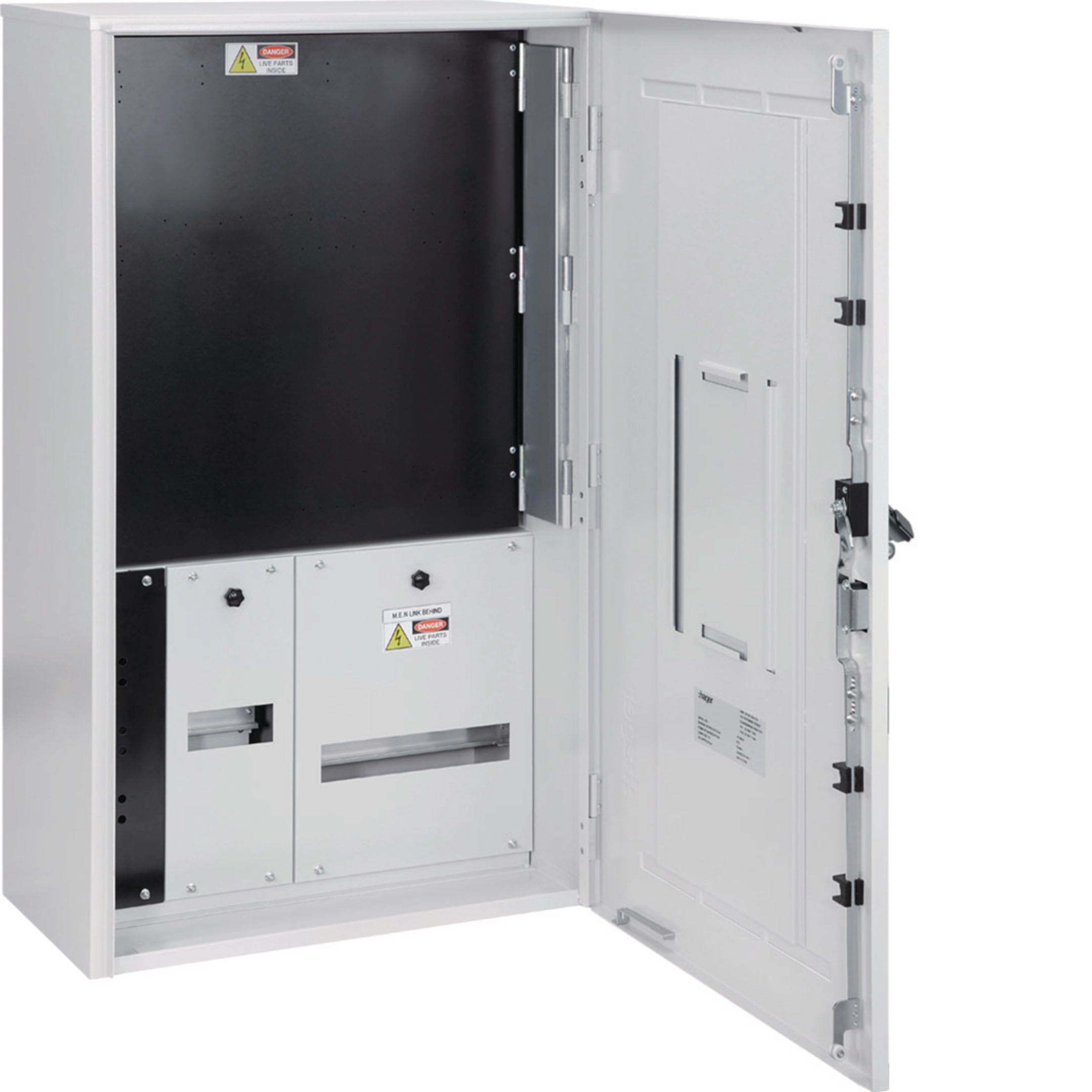

The Hager Group Metering Enclosure VIC, 6 is a robust solution for group metering in Victorian installations. Steel (RAL7035) with IP23 and IK05 for durable, sheltered-area protection. Surface/DIN-rail mounted, 1 door with 3-point lever lock. 6-module capacity and up to 20 poles enable organized meter and device mounting. Dimensions 1050×625×360 mm. Class I insulation for safe operation. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.
EAN
3250611005551
Packaging
1 Piece
Group metering enclosure VIC 6 modules DIN rail IP23 IK05 steel 3-point lock VYGMV6
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Base/base element 1 products available -
Mounting plate for distribution board 1 products available
Technical properties
Installation, mounting
-
Mounting onDIN rail, Surface mounting
Electric current
-
Breaking and opening capacity Idm0
Equipment
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisNo chassis
Capacity
-
Number of modules6
Dimensions
-
Height1050 mm
-
Width625 mm
-
Depth360 mm
Cover, door
-
Number of cabinet doors1
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP23
-
Locking type3-point lever
Architecture
-
Number of poles20
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

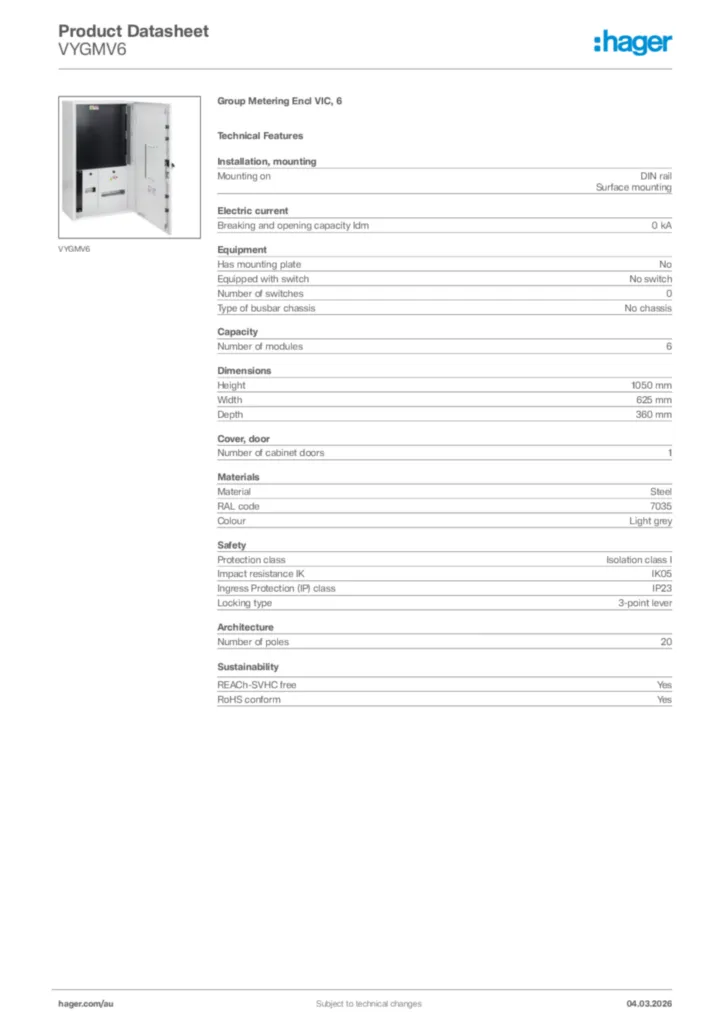

Hager Product data sheet VYGMV6
