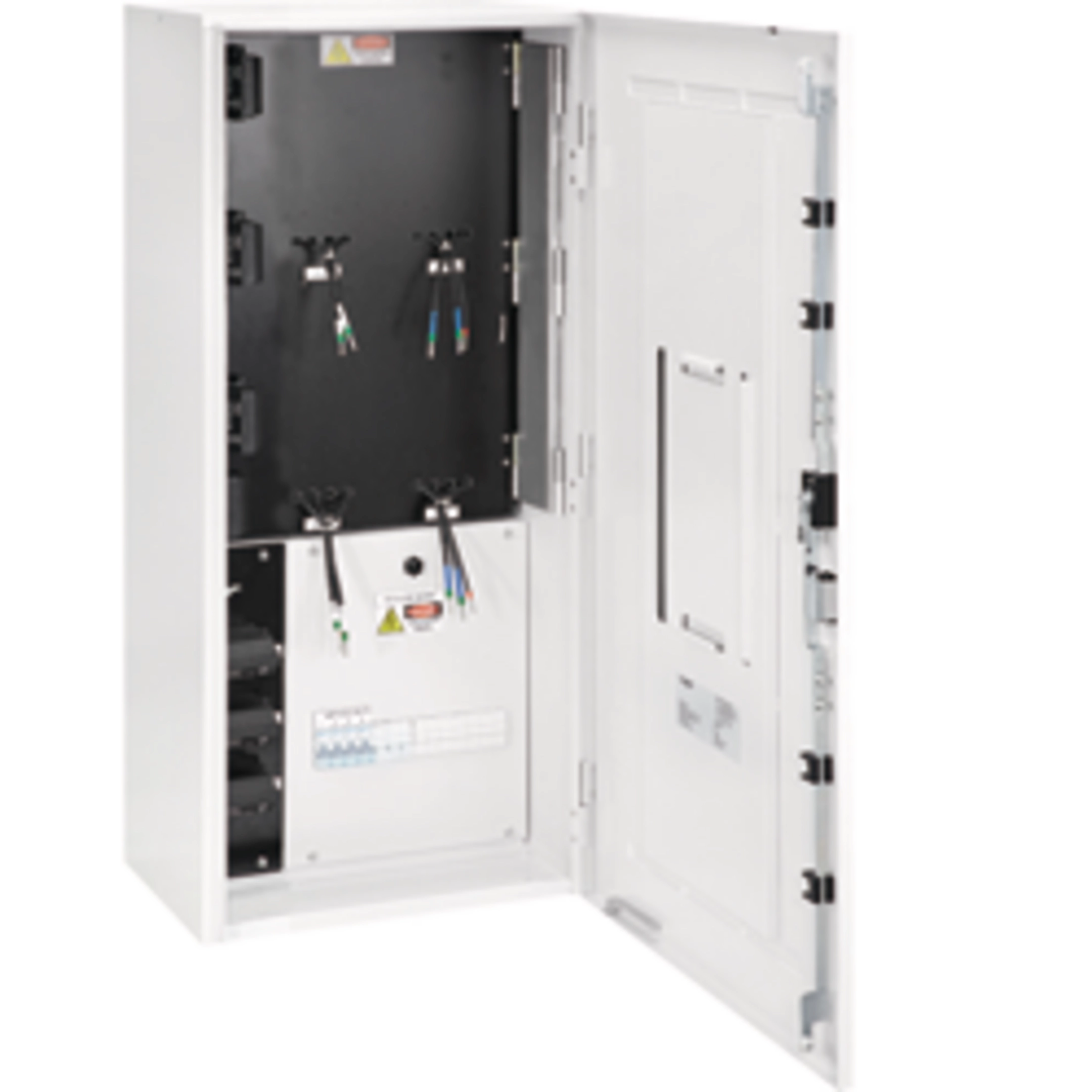

Hager The Hager Group Metering Enclosure VIC, 4, Wired streamlines multi-tenant metering with four automatic transfer switches across 14 poles. DIN-rail, surface-mount steel body (RAL7035) offers IK05 impact and IP23 ingress protection with Class I insulation and a secure 3-point lever lock. 6 kA capacity supports reliable operation. Ideal for Victorian group metering upgrades and new builds. Dimensions: 1050×440×360 mm.
EAN
3250611005544
Packaging
1 Piece
Group Metering Enclosure VIC 4-way Automatic Transfer Switch IP23 IK05 VYGMV4W
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Base/base element 1 products available -
Mounting plate for distribution board 1 products available
Technical properties
Installation, mounting
-
Mounting onDIN rail, Surface mounting
Electric current
-
Breaking and opening capacity Idm6 kA
Equipment
-
Has mounting plateNo
-
Equipped with switchAutomatic transfer switch
-
Number of switches4
-
Type of busbar chassisNo chassis
Capacity
-
Number of modules4
Dimensions
-
Height1050 mm
-
Width440 mm
-
Depth360 mm
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP23
-
Locking type3-point lever
Architecture
-
Number of poles14
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

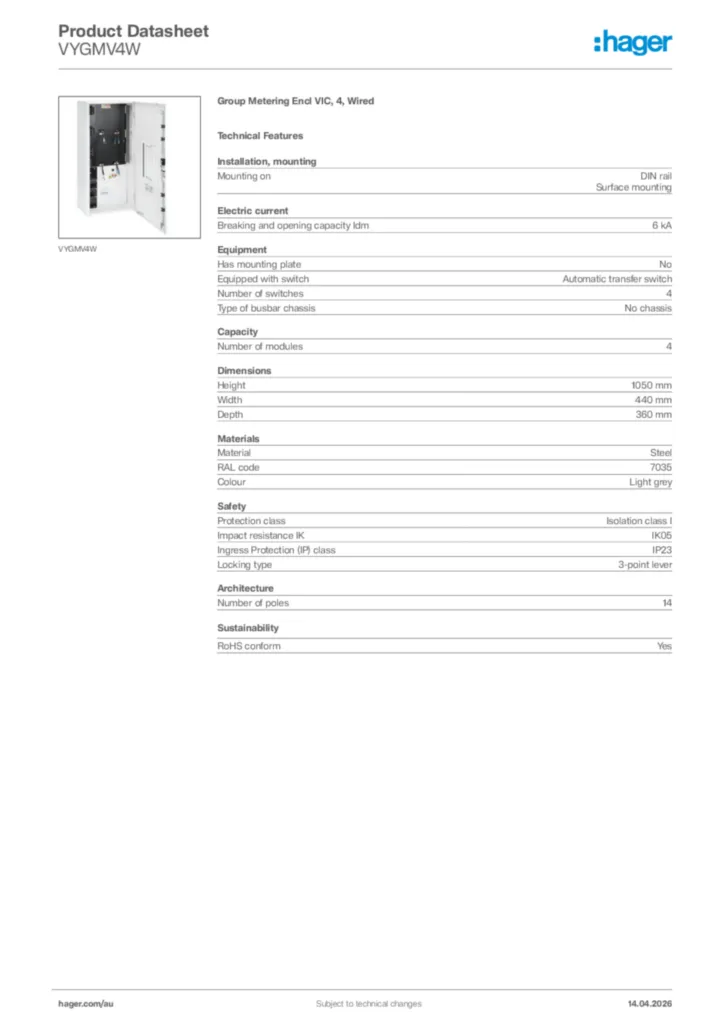

Product datasheet
Hager Product data sheet VYGMV4W
Group Metering Encl VIC, 4, Wired
PDF -
Product attachment
Product attachment en-GB 2025-10-21
PDF237,50 kB
More documentation
