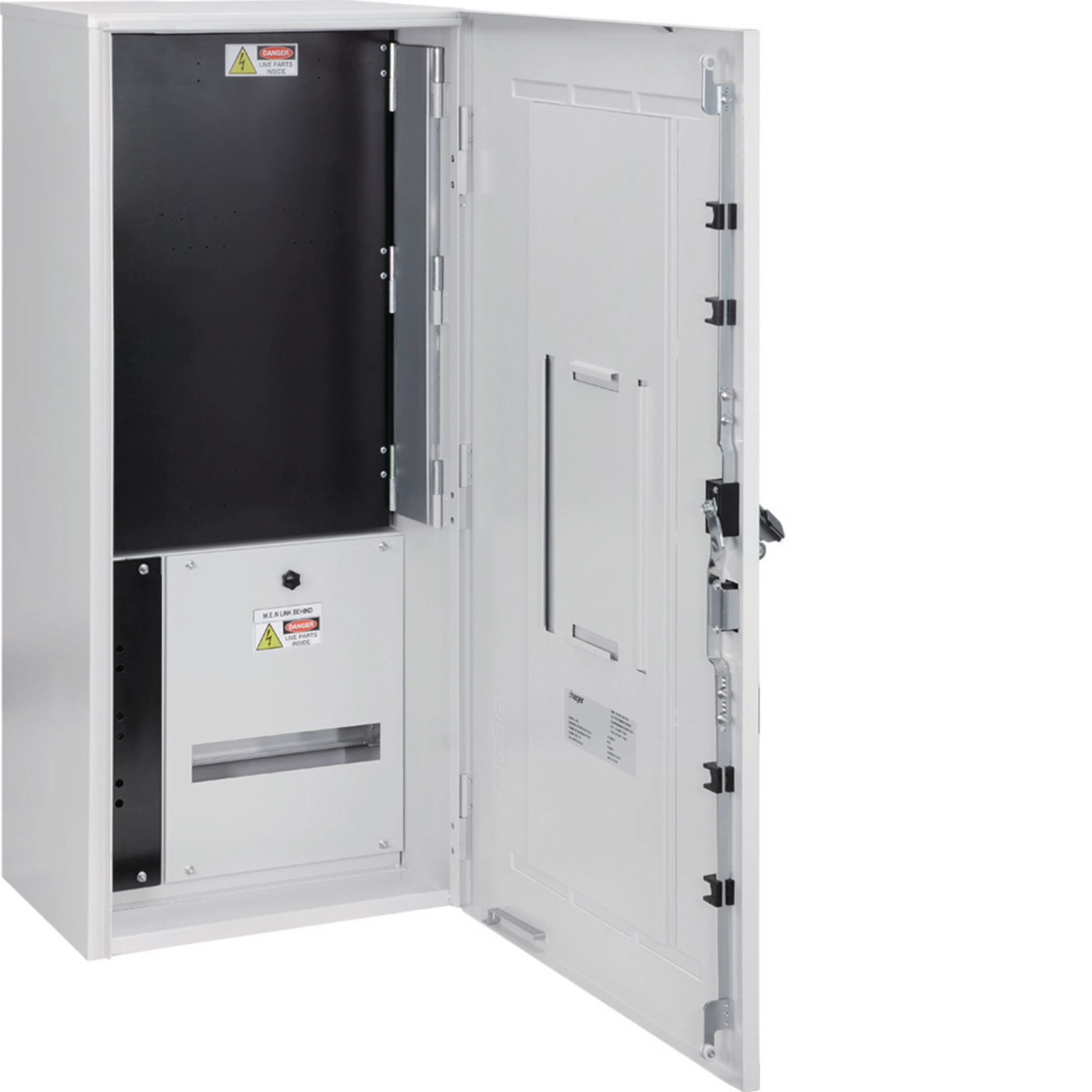

Hager Group Metering Enclosure VIC Surface 14-pole IP23 IK05 1 Door Key Lock VYGMV4
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Breaking and opening capacity Idm0
Equipment
-
Has mounting plateNo
-
Equipped with switchNo switch
-
Number of switches0
-
Type of busbar chassisNo chassis
Capacity
-
Number of modules3
Dimensions
-
Height1050 mm
-
Width440 mm
-
Depth360 mm
Cover, door
-
Number of cabinet doors1
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP23
-
Locking type3-point lever, Key lock
Architecture
-
Number of poles14
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

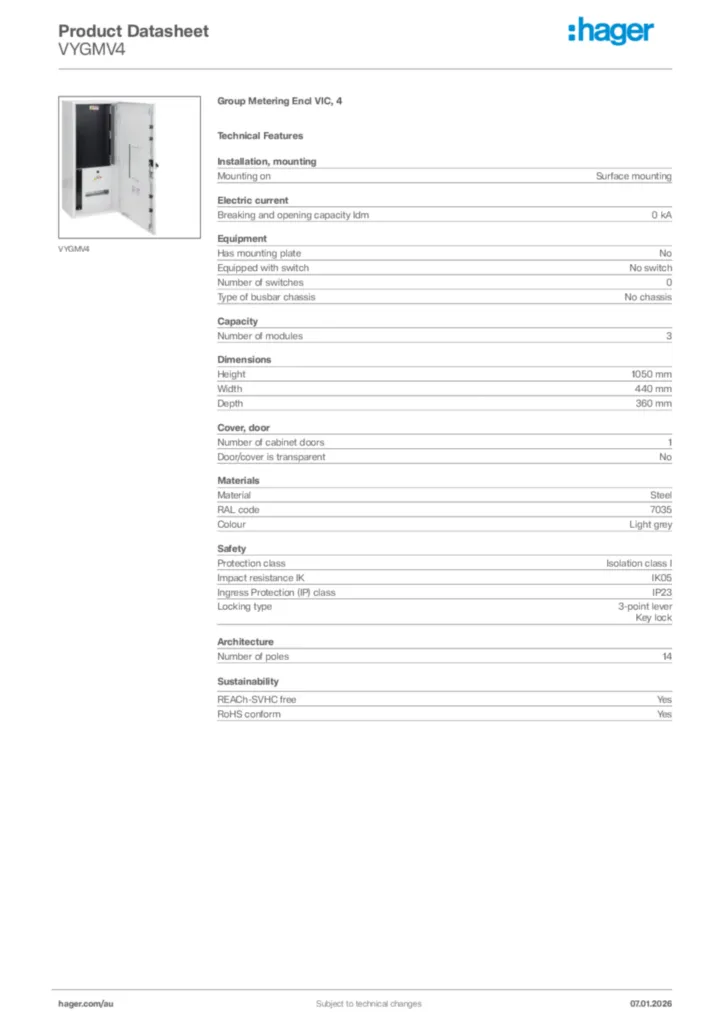

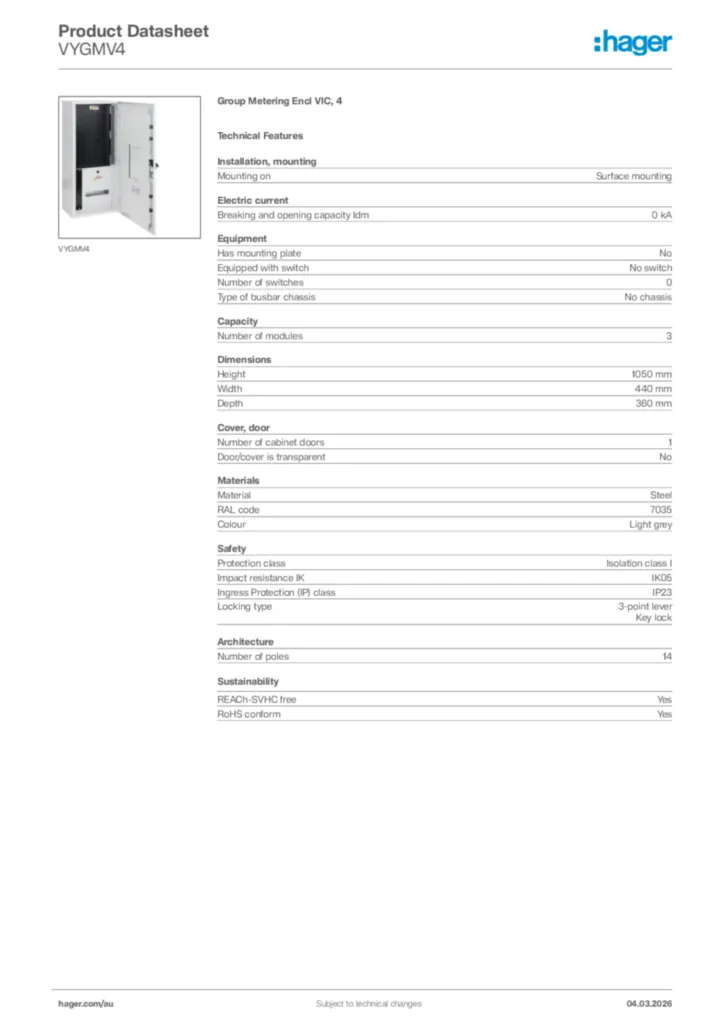

Product datasheet
