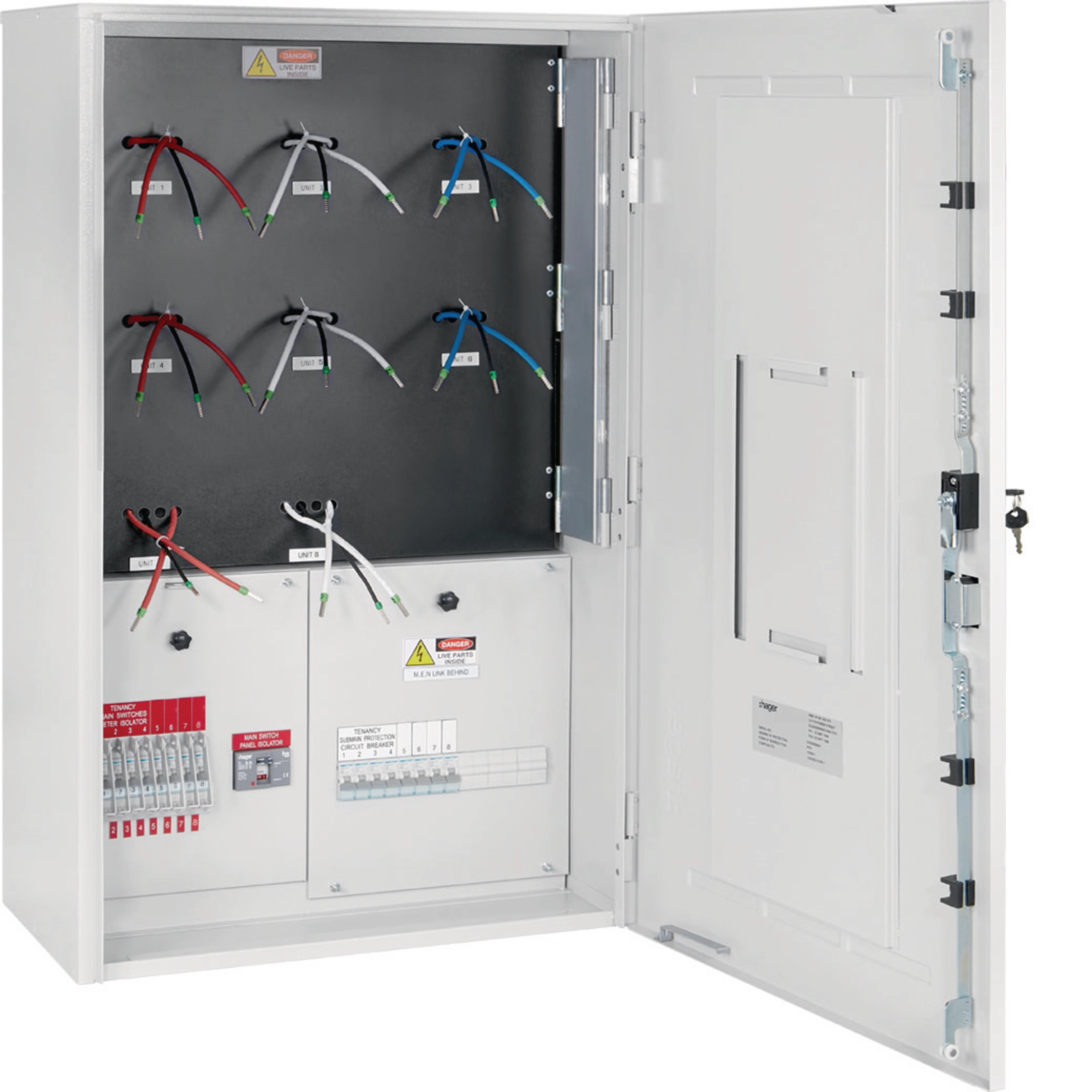

Hager The Hager Group Metering Enclosure SA 8 Wired is a robust steel cabinet for multi‑meter installations, offering surface/DIN‑rail mounting with a 100 A, 25 kA MCCB main switch. Its 22‑module capacity optimizes panel space, while IP23, IK05, and Class I insulation enhance safety. Finished in RAL7035 light grey with a secure 3‑point lever lock, it’s ideal for residential and commercial group metering.
EAN
3250611005520
Packaging
1 Piece
Group Metering Enclosure 100A 25kA with MCCB IP23 Steel 22 Modules VYGMS8W
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Installation, mounting
-
Mounting onDIN rail, Surface mounting
Electric current
-
Rated current100 A
-
Breaking and opening capacity Idm25 kA
Equipment
-
Has mounting plateNo
-
Equipped with switchMCCB
-
Number of switches1
-
Type of busbar chassisNo chassis
Capacity
-
Number of modules22
Dimensions
-
Height1350 mm
-
Width625 mm
-
Depth360 mm
Cover, door
-
Door/cover is transparentNo
Materials
-
MaterialSteel
-
RAL code7035
-
ColourLight grey
Safety
-
Protection classIsolation class I
-
Impact resistance IKIK05
-
Ingress Protection (IP) classIP23
-
Locking type3-point lever
Architecture
-
Number of poles22
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

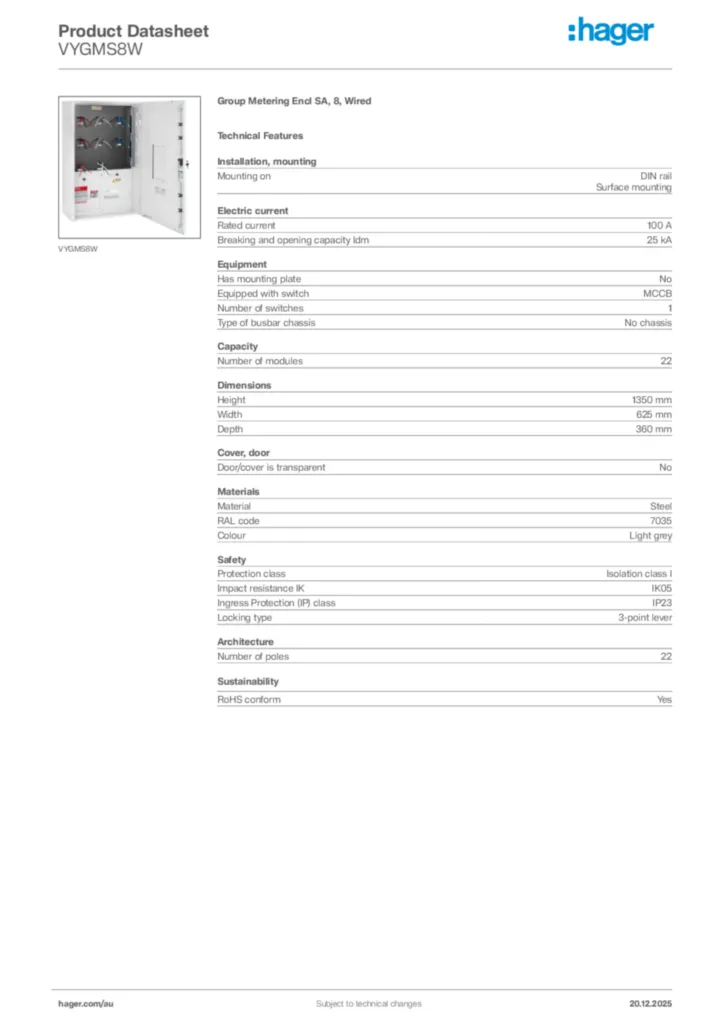

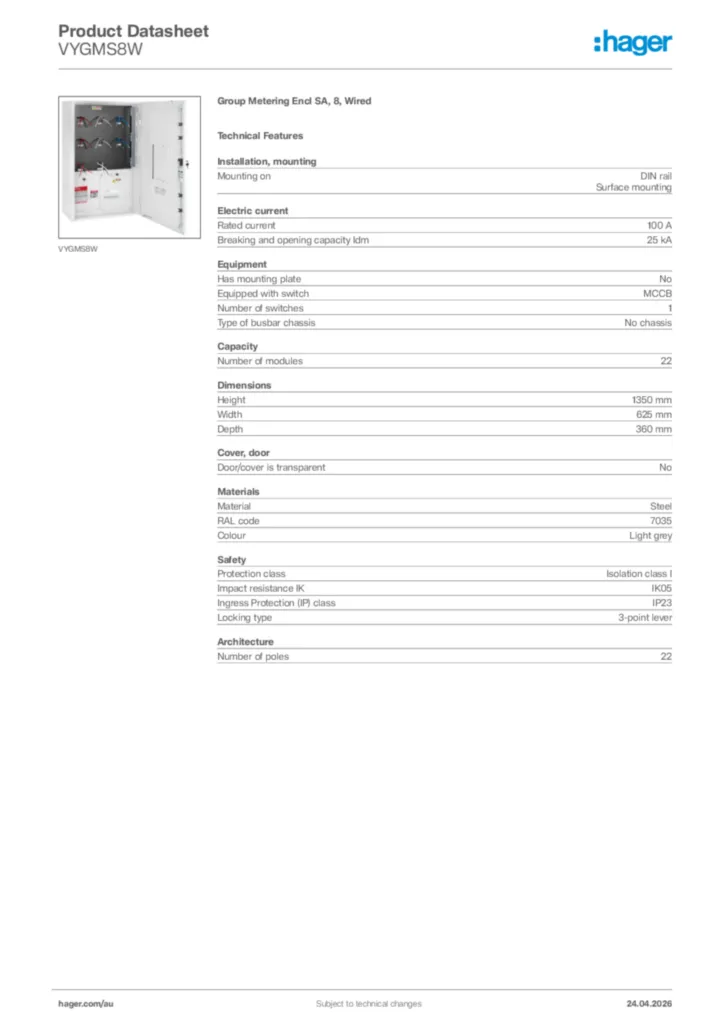

Product datasheet
Hager Product data sheet VYGMS8W
Group Metering Encl SA, 8, Wired
PDF -
Product attachment
Product attachment en-GB 2025-10-21
PDF237,50 kB
