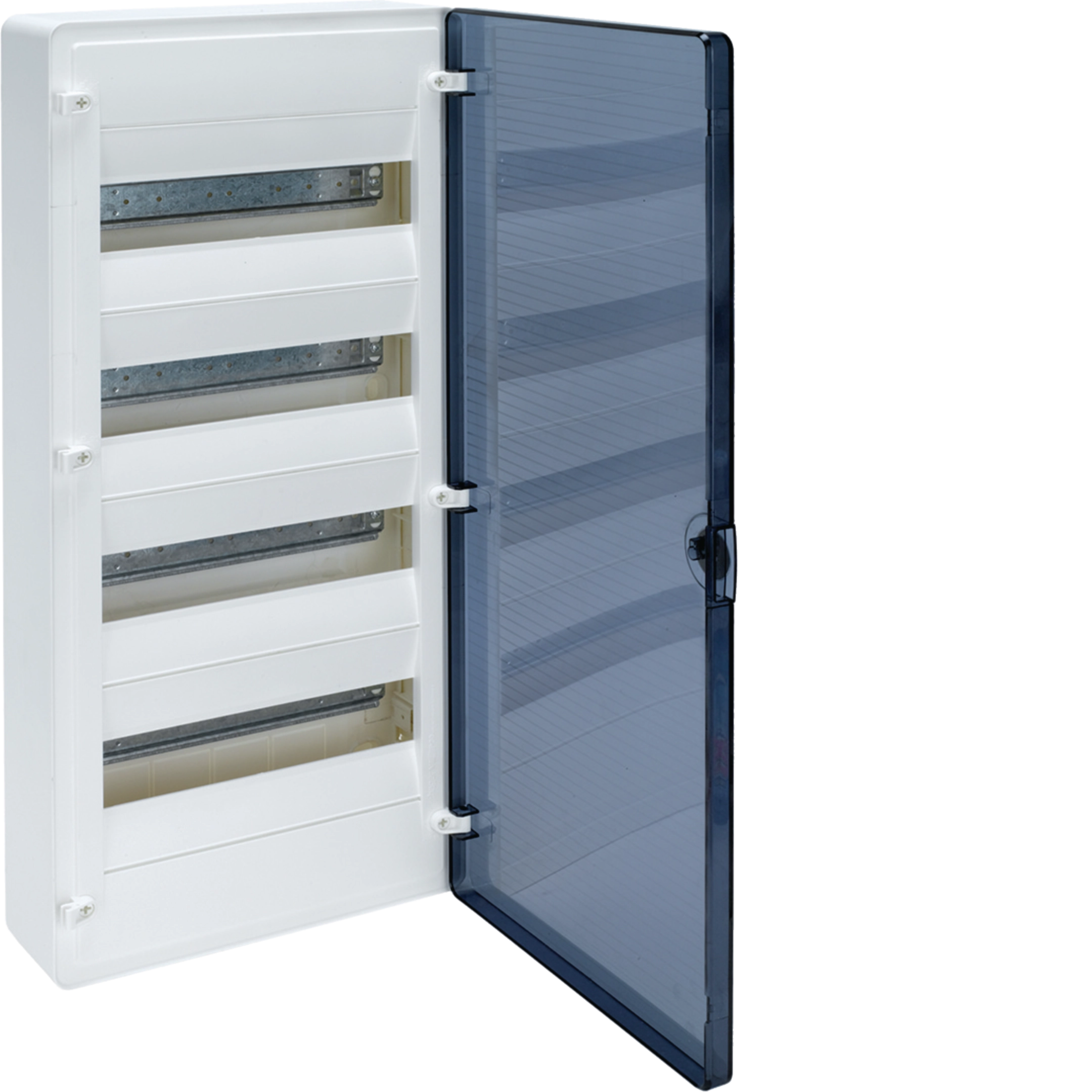

Small distributor,golf,surface,4row,IP40,48M,QC-terminal,N+PE,transparent door VS412TTQ
EAN
3250616466609
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Cover/infill panel/identification strip 1 products available -
Vertical busbar system 2 products available -
Door/operating panel 2 products available -
Cover strip 1 products available -
Coax connector 1 products available -
Quick-release fastener for housing covers 1 products available
Complete your system
Technical properties
Installation, mounting
-
Mounting onSurface mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails2
-
Number of rows4
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules24
Dimensions
-
Height647 mm
-
Width282 mm
-
Depth99 mm
-
Number of width units12
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentYes
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Ingress Protection (IP) classIP40
-
Locking typeSnap on lock, Without lock
-
Glow wire test650 °C
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

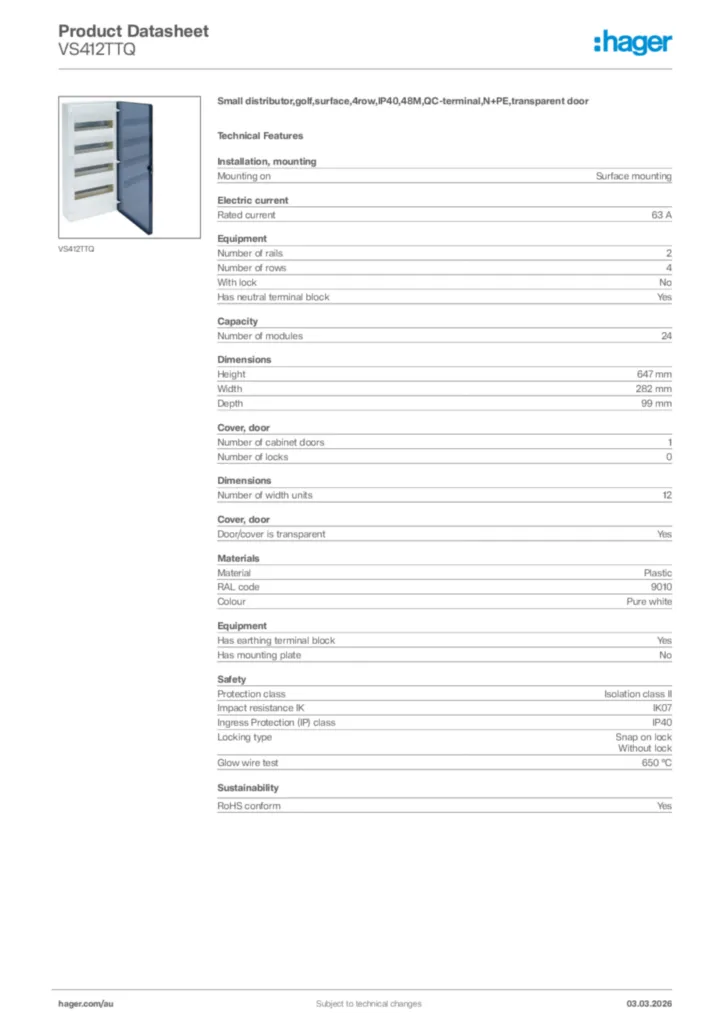

Product datasheet
