    • VS118PT
    The Hager Golf small surface distributor, 1 row/18 modules (IP40, IK07), manages indoor circuits up to 80 A at 400 V. Supplied with MS terminals and N+PE bars, it streamlines safe, tidy wiring. Class II insulated plastic enclosure with opaque white door, snap-on closure and conduit entries. Compact (252×390×99 mm), ideal for ANZ residential and light commercial distribution. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.
    EAN
    3250616594449
    Packaging
    1 Piece
    • golf enclos­ures

    Hager Small distributor golf Surface 1 row IP40 18M N+PE White door 80A VS118PT

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Hager Small distributor golf Surface 1 row IP40 18M N+PE White door 80A

    VS118PT

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Cover strip 2 products available
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip 1 products available
    • Door/­op­er­ating panel 1 products available
    • Coax connector 1 products available
    • Quick­-re­lease fastener for housing covers 1 products available

    Complete your system

    • Cover strip
    • Cover­/in­fill panel/iden­ti­fic­a­tion strip
    • Door/­op­er­ating panel
    • Coax connector
    • Quick­-re­lease fastener for housing covers
    • JP015

      Cover strip, universal, 18M, RAL9010
      EUR 0.00  / *
    • JP011

      Cover strip, universal, RAL 9010
      EUR 0.00  / *
    • VZ788N

      Labeling strips, golf, adhesive, 396mm, surface, flush m. distributor, accessory, 10pcs
      EUR 0.00  / *
    • VZ607N

      Door, golf, white, accessory, for VF/VS118
      EUR 0.00  / *
    • TN010S

      F type module complete
      EUR 0.00  / *
    • VZ862N

      Kit with 4 screws, Golf, for surface mount covers 04 to 72 M
      EUR 0.00  / *

    Technical properties

    Voltage
    • Nominal voltage
      400 - 400 V
    Install­a­tion, mounting
    • Suit­able for outdoor usage
      No
    • Mounting on
      Surface mounting
    Elec­tric current
    • Rated current
      80 A
    Equip­ment
    • Number of rails
      1
    • Number of rows
      1
    • Number of section in width
      1
    • With lock
      No
    • Has neutral terminal block
      Yes
    • Has earthing terminal block
      Yes
    • Has mounting plate
      No
    Capa­city
    • Number of modules
      18
    Func­tions
    • With conduit inlets
      Yes
    Dimen­sions
    • Height
      252 mm
    • Width
      390 mm
    • Depth
      99 mm
    • Number of width units
      18
    Cover, door
    • Number of cabinet doors
      1
    • Number of locks
      0
    • Door/­cover is trans­parent
      No
    • Cabinet door type
      Single door
    Mater­ials
    • Material
      Plastic
    • RAL code
      9010
    • Colour
      Pure white
    • Ultra­vi­olet-res­istant
      No
    Safety
    • Protec­tion class
      Isol­a­tion class II
    • Impact resist­ance IK
      IK07
    • Ingress Protec­tion (IP) class
      IP40
    • Locking type
      Snap on lock, Without lock
    • Glow wire test
      650 °C
    • Protec­tion class with door
      IP40

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    PEP - ENCLOSURE SURFACE GAMMA 26 M (english)
    PDF
    25,39 MB
    REACH declaration VS118PT
    PDF
    RoHS report VS118PT
    PDF

    Downloads

    • Product image

      Image VS118PT | Hager Australia

      Product Image VS118PT

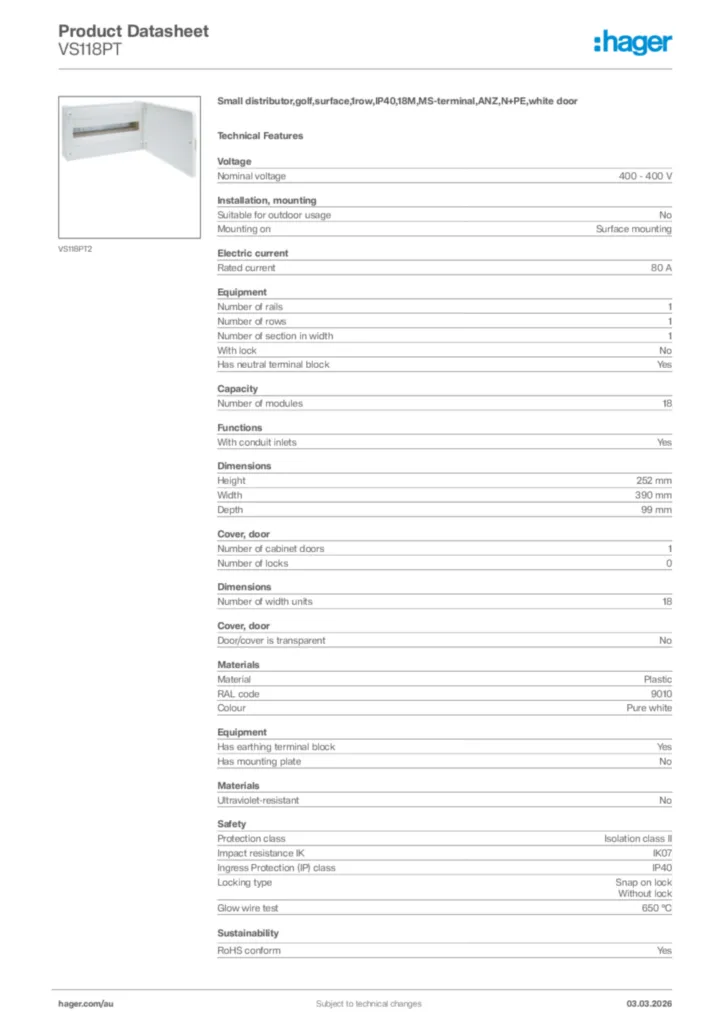

    • Product datasheet

      Image Hager Product data sheet VS118PT | Hager Australia

      Hager Product data sheet VS118PT

      Small distributor,golf,surface,1row,IP40,18M,MS-terminal,ANZ,N+PE,white door

      PDF

    • Installation manual

      Image Installation manual en-GB 2021-05-17 | Hager Australia

      Installation manual en-GB 2021-05-17

      PDF
      5,13 MB
