Small distributor,golf,flush,1row,8M,IP40,MS-terminal,ANZ,N+PE,white door VF108PT
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Common Accessories 1 products available -
Cover/infill panel/identification strip 1 products available -
Mounting accessories 2 products available -
Lock system 1 products available -
Busbar system for distribution boards 1 products available
Complete your system
Technical properties
Voltage
-
Nominal voltage400 - 400 V
Installation, mounting
-
Suitable for outdoor usageNo
-
Mounting onFlush mounting
Electric current
-
Rated current80 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules8
Functions
-
With conduit inletsYes
Dimensions
-
Height225 mm
-
Width275 mm
-
Depth97,50 mm
-
Built-in height189 mm
-
Built-in width242 mm
-
Built-in depth72 mm
-
Number of width units8
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentNo
Materials
-
MaterialPlastic
-
RAL code9010
-
ColourPure white
-
Ultraviolet-resistantNo
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK07
-
Locking typeSnap on lock, Without lock
-
Glow wire test850 °C
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

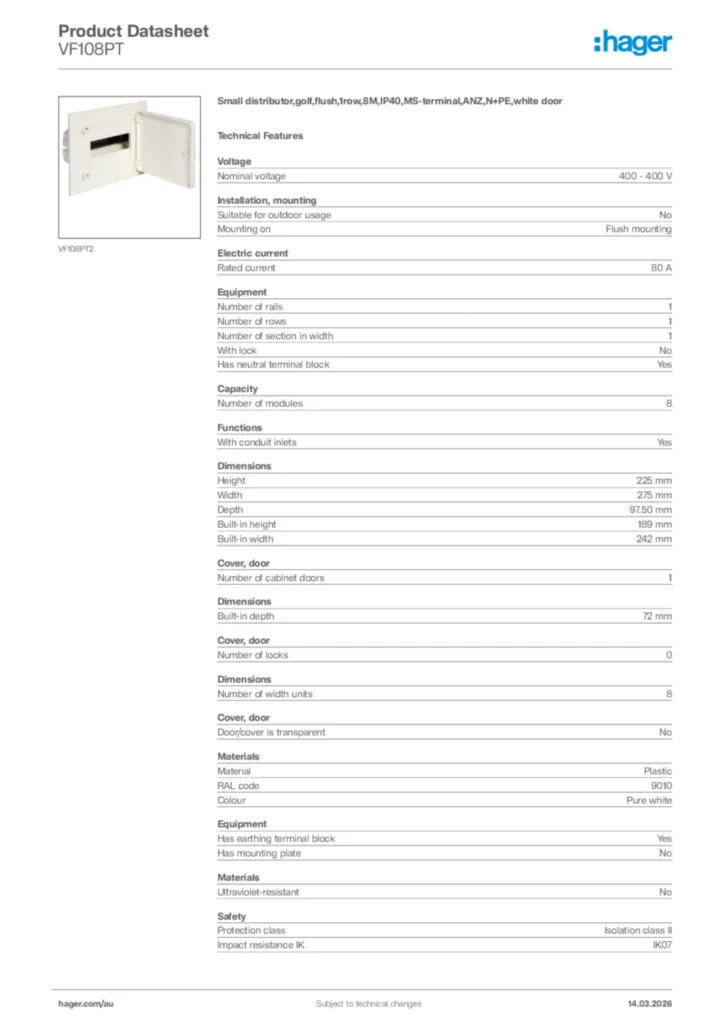

Hager Product data sheet VF108PT
Small distributor,golf,flush,1row,8M,IP40,MS-terminal,ANZ,N+PE,white door
PDF -
Installation manual
Installation manual en-GB 2020-01-01
PDF2,01 MB
Installation manual en-GB 2021-05-17
PDF5,37 MB
