The Hager Vector IP65 12M UV‑stabilised surface‑mount enclosure provides reliable DC/AC distribution outdoors. With 1 row/12 modules and 1 rail, it handles up to 63A at 400V AC or 1000V DC. IK08, Class II insulation and 850°C glow‑wire rating enhance safety. Transparent door, light grey RAL7035. Supplied with N/PE terminal blocks and 12 knockouts for fast wiring. Ideal for PV and outdoor circuits. Designed for installation in residential & commercial switchboards,suitable for DIN rail mounting.
EAN
3250616454088
Packaging
1 Piece
Hager Vector surface enclosure IP65 12M UV-resistant DC/AC 1000V with knockouts VE112H
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Lock system 1 products available -
Common Accessories 1 products available -
Cover strip 1 products available -
Busbar system for distribution boards 1 products available
Technical properties
Connection
-
Number of conduit inlets12
Voltage
-
Nominal voltage400 - 400 V
-
Rated operational voltage in DC1000 - 1000 V
Installation, mounting
-
Suitable for outdoor usageYes
-
Mounting onSurface mounting
Electric current
-
Rated current63 A
Equipment
-
Number of rails1
-
Number of rows1
-
Number of section in width1
-
With lockNo
-
Has neutral terminal blockYes
-
Has earthing terminal blockYes
-
Has mounting plateNo
Capacity
-
Number of modules12
Functions
-
With conduit inletsYes
Dimensions
-
Height302 mm
-
Width310 mm
-
Depth151 mm
-
Number of width units12
Cover, door
-
Number of cabinet doors1
-
Number of locks0
-
Door/cover is transparentYes
-
Cabinet door typeSingle door
Materials
-
MaterialPlastic
-
RAL code7035
-
ColourLight grey
-
Ultraviolet-resistantYes
Safety
-
Protection classIsolation class II
-
Impact resistance IKIK08
-
Ingress Protection (IP) classIP65
-
Locking typeSnap on lock, Without lock
-
Glow wire test850 °C
-
Protection class with doorIP65
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

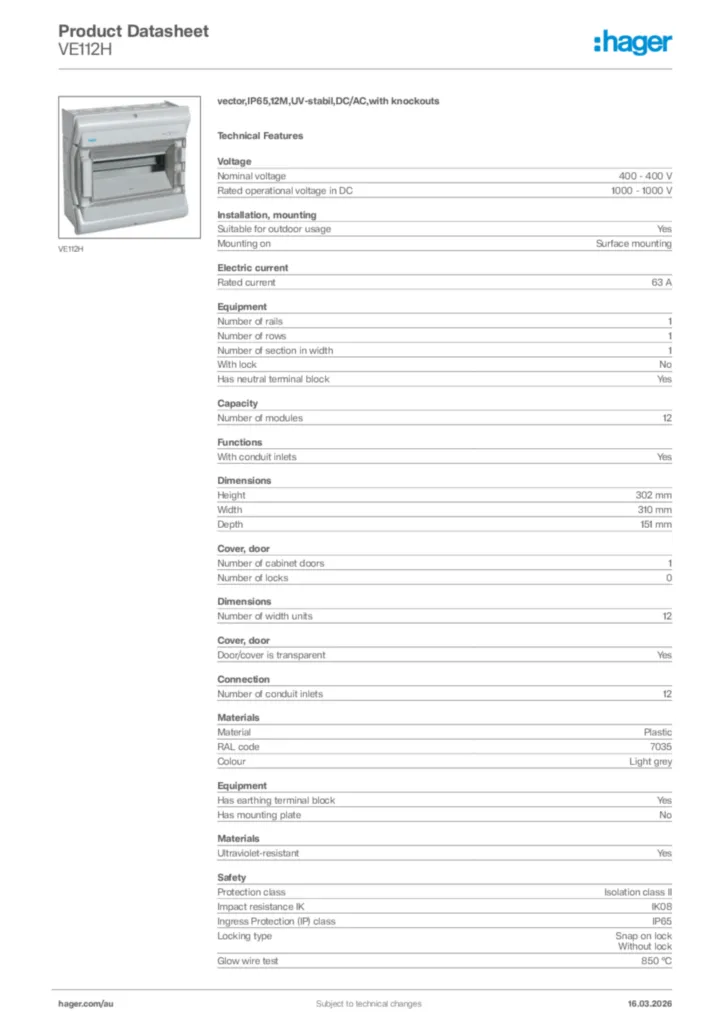

Hager Product data sheet VE112H
