  • VE118H

vector,IP65,18M,UV-stabil,DC/AC,with knockouts

VE118H

  • vector IP65 Enclosures with Transparent Door

vector,IP65,18M,UV-stabil,DC/AC,with knockouts VE118H

EAN
3250616458086
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Technical properties
  • Documentations
  • More products
Download the data sheet

Technical properties

Functions
  • With a pipe-in lead
    Yes
Configuration
  • Number of modules
    18
Main electrical features
  • Nominal voltage
    400 V
Voltage
  • Rated operational voltage in DC
    1000 V DC
Electric current
  • Rated current
    63 A
Dimensions
  • Depth of installed product
    151 mm
  • Internal depth
    151 mm
  • Height of installed product
    302 mm
  • Width of installed product
    418 mm
  • Width in division units
    18
  • Thickness of sidewall material
    2.5 mm
Cover, door
  • Identification od protection index
    65
  • Interlockable
    No
  • Number of keylock of the door
    0
  • Cover type
    Closed (plain)
  • Door locking
    without
  • Door leave
    single
  • Cover type
    Door
  • Transparent cover or door
    Yes
Materials
  • Colour
    light grey
  • RAL colour
    RAL 7035 - Light grey
  • Material
    plastic
  • Type of surface treatment
    untreated
Installation, mounting
  • Suitable for outdoor use
    Yes
Connection
  • Number of conduit inlets
    15
Settings
  • Enclosure type
    Distributor empty cabinet
Equipment
  • Number of rows
    1
  • Quantity of section in width
    1
  • Quantity of rails
    1
  • Can be accessorized
    Yes
  • Extension possible
    No
  • Earthing terminal block
    Yes
  • Neutral terminal block
    Yes
Standards
  • European directive WEEE
    concerned
Safety
  • IK protection code against mecanical impacts
    08
  • Glow wire test
    according EN 60695-2-11: 850°C
Use conditions
  • Operating temperature
    -25…40 °C

Downloads

  • Product image

    Image VE118H | Hager Australia

    Product Image VE118H

  • User brochure

    Image Weatherproof range brochure | Hager Australia

    Weatherproof range brochure

    PDF
    1004 KB

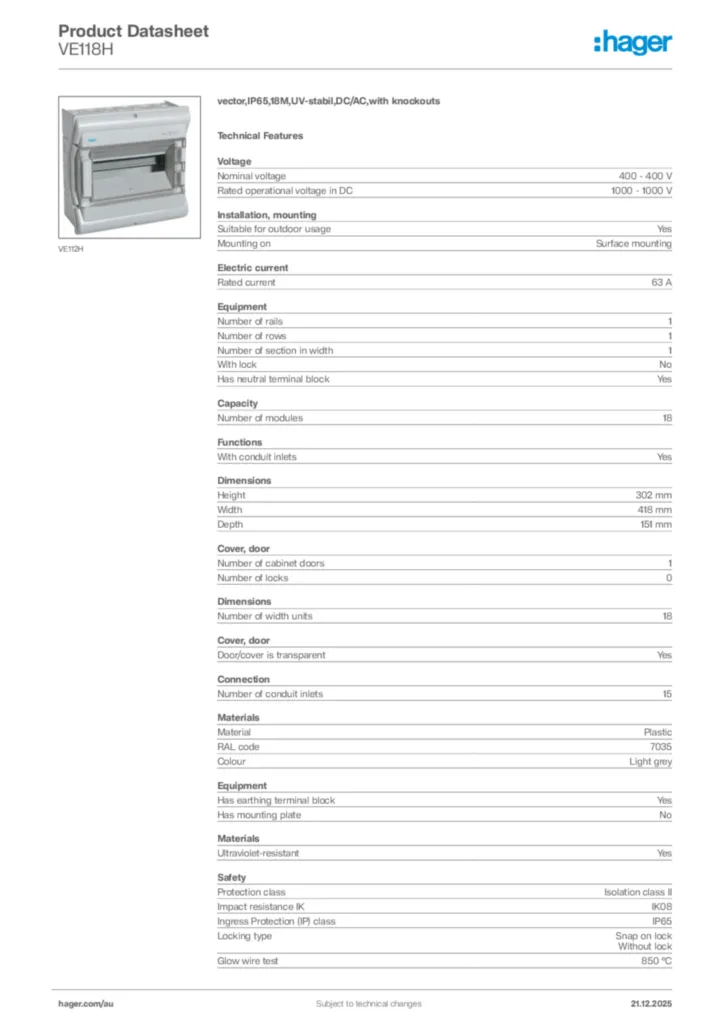

  • Product data sheet

    Image Product data sheets for VE118H | Hager Australia

    Product data sheets for VE118H

    PDF
    257 KB

  • Declaration of conformity

    Image Declaration | Hager Australia

    Declaration

    PDF
    258 KB
    Image Declaration | Hager Australia

    Declaration

    PDF
    257 KB

  • PEP document

    Image Product environmental profile for VE118H | Hager Australia

    Product environmental profile for VE118H

    PDF
    423 KB
    Image Product environmental profile for VE118H | Hager Australia

    Product environmental profile for VE118H

    PDF
    343 KB
