Surge Protection Device 3P T2 TNC Uc 320V In 40kA Imax 100kA remote contact SPB300R
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Surge protection device for power supply systems 2 products available
Technical properties
Capacity
-
Number of modules3
Voltage
-
Rated operational voltage Ue240 - 415 V
-
Continuous operating voltage Uc according to IEC 61643-1320 V
-
Voltage protection level Up according to IEC 61643-12 kV
-
Voltage protection level Up L-PE/N-PE according to IEC 61643-111,70 kV
-
Voltage level Up L-N/PEN IEC 61643-112000 V
Electric current
-
Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 6164340 kA
-
Max. overcurrent protection device, parallel connection (fuse)250 A
-
Max. discharge (Imax) L-N(PEN)/ N-PE150 kA
Dimensions
-
Height98,7 mm
-
Width53,40 mm
-
Depth70 mm
Use conditions
-
Operating temperature-40 - 80 °C
Network configuration
-
Network typeTN-C
Equipment
-
With remote signalling contactYes
Connection
-
Cross-section of input and output with screws, for flexible conductors1,5 - 25,0 mm²
-
Cross-section of input and output with screws, for massive conductors1,5 - 35,0 mm²
-
Cross-section signal contact0,14 - 1,5 mm²
Standards
-
Requirement class IEC 61643T2
Frequency
-
Frequency50 - 60 Hz
Installation, mounting
-
Nominal tightening torque3 - 3 Nm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

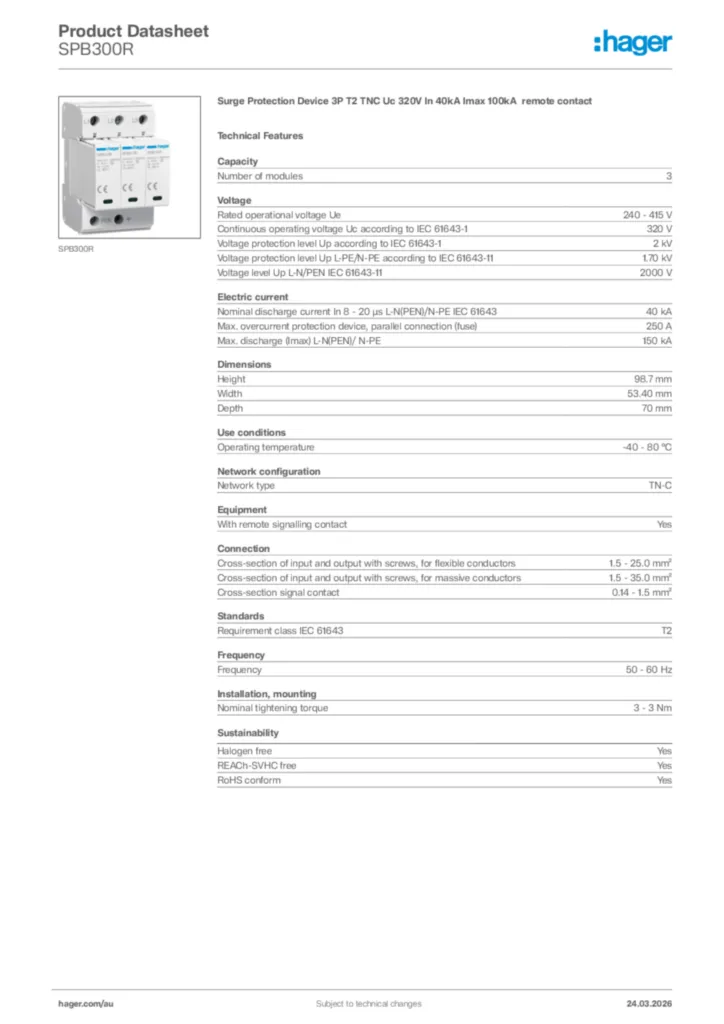

Hager Product data sheet SPB300R
Surge Protection Device 3P T2 TNC Uc 320V In 40kA Imax 100kA remote contact
PDF -
Installation manual
Installation manual en-GB, es-ES, fr-FR, de-DE, it-IT, pt-PT 2021-05-18
PDF828,29 kB -
Brochure
Hager AU & NZ Surge Brochure
PDF14,27 MB -
Declaration of conformity
Declaration of conformity for Lightning rod 8-15-40-65-100kA
Declaration of conformity International 2021-08-25
PDF305,83 kB
