EAN

3250615515322

Packaging

1 Piece

Surge Protection Devices (SPDs)

Cartridge L-N Uc 320V In 40kA Imax 100kA Up 2kV SPB010R

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Suitable with 4 products available

Technical properties

Number of modules

1

Rated operational voltage Ue

240 - 415 V
Continuous operating voltage Uc according to IEC 61643-1

320 V
Voltage protection level Up according to IEC 61643-1

2 kV

Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643

40 kA
Max. overcurrent protection device, parallel connection (fuse)

250 A

Height

47,3 mm
Width

17,5 mm
Depth

67,3 mm

Operating temperature

-40 - 80 °C

Network type

TN-C, TT

Cross-section of input and output with screws, for flexible conductors

1,5 - 25,0 mm²
Cross-section of input and output with screws, for massive conductors

1,5 - 35,0 mm²

Requirement class IEC 61643

T2

Frequency

50 - 60 Hz

Nominal tightening torque

3 - 3 Nm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

REACh-SVHC free Yes

Halogen free Yes

Certifications and documents

Hager REACH declaration SPB010R

PDF

Hager RoHS report SPB010R

PDF

Downloads

Product image

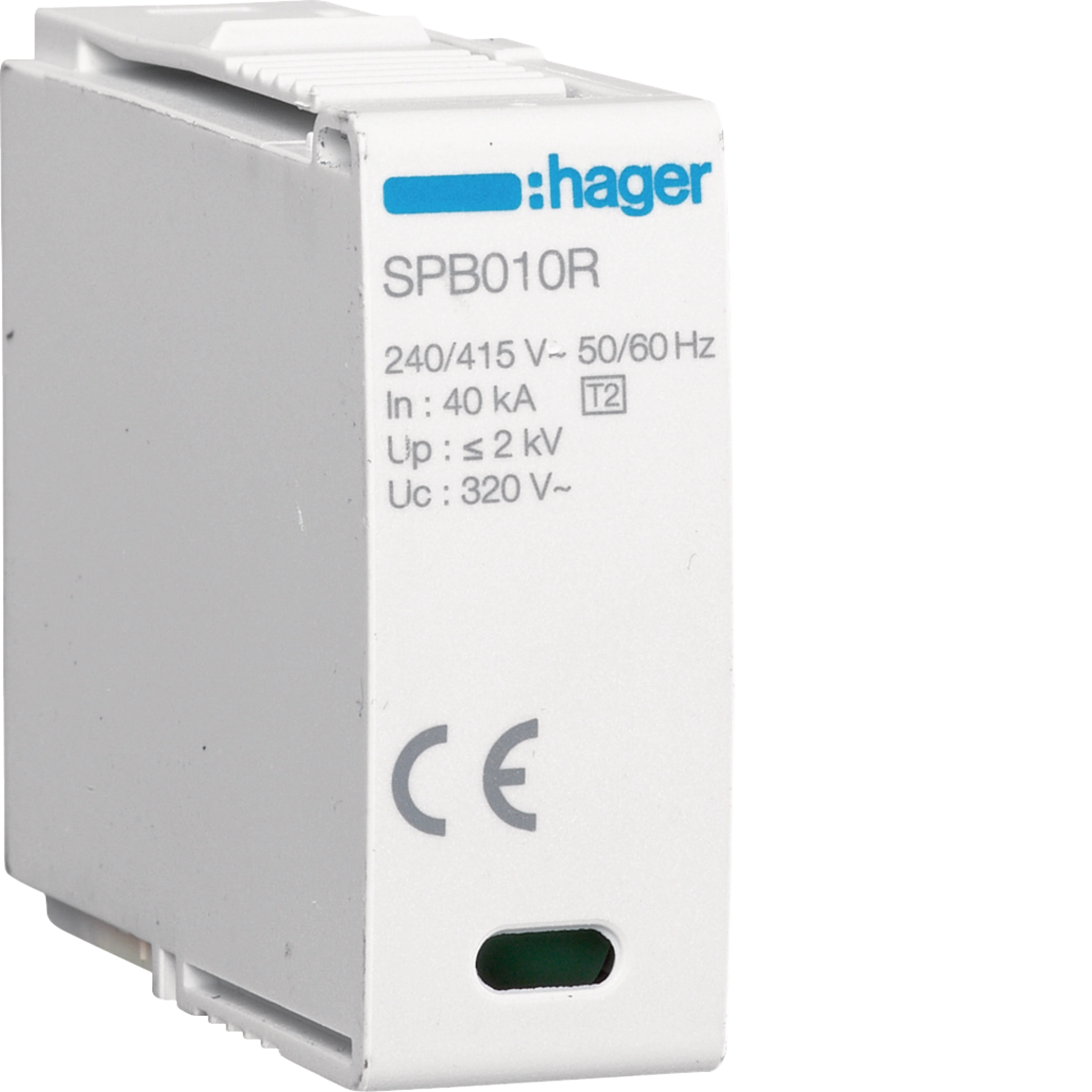

Product Image SPB010R
Product datasheet

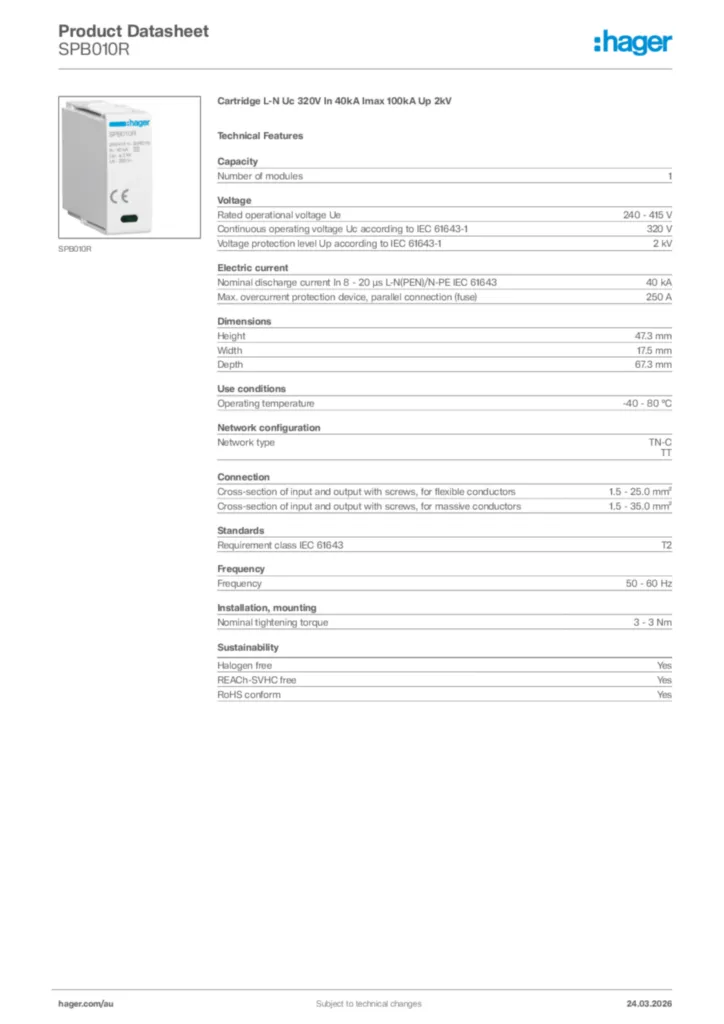

Hager Product data sheet SPB010R
