    Type 2 surge arrester cartridge L-N 275V In20kA Imax40kA Up1.35kV 1 module SPB040D

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Type 2 surge arrester cartridge L-N 275V In20kA Imax40kA Up1.35kV 1 module

    SPB040D

    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Technical properties

    Voltage
    • Rated oper­a­tional voltage Ue
      240 - 415 V
    • Refer­ence test voltage Utest AC
      255 V
    • Over­voltage category according to IEC 60947-1
      3
    • Type voltage supply
      AC
    • Continuous oper­ating voltage Uc according to IEC 61643-1
      275 V
    • Mode of protec­tion design
      Voltage-lim­iting type
    Equip­ment
    • With remote signalling contact
      No
    Use condi­tions
    • Oper­ating temper­ature
      -40 - 80 °C
    • Max. alti­tude
      2000 m
    • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
      2
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    Stand­ards
    • Require­ment class IEC 61643
      T2
    Frequency
    • Frequency
      50 - 60 Hz
    Dimen­sions
    • Height
      52,4 mm
    • Width
      17,5 mm
    • Depth
      55,3 mm
    Connec­tion
    • Number of connec­tions
      1
    Connectivity
    • Type of connec­tion
      Plug-in connec­tion
    • Mounting type
      On base element
    Elec­tric current
    • Short-­cir­cuit current rating (Isccr)
      25 kA
    • Max. discharge current (Imax)
      40 kA
    • Max. over­cur­rent protec­tion device, parallel connec­tion (fuse)
      125 A
    • Nominal discharge current In
      20 kA
    Func­tions
    • Discon­nector indic­a­tion
      Optical
    Install­a­tion, mounting
    • Suit­able for indoor usage
      Yes
    Mater­ials
    • Material
      Poly­amide (PA)
    • Colour
      Light grey
    • RAL code
      7035
    Network config­ur­a­tion
    • Network type
      TN, TT
    Safety
    • Ingress Protec­tion (IP) class
      IP20
    Use
    • Is barrier free
      Yes

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    REACH declaration SPB040D
    PDF
    Hager RoHS report SPB040D
    PDF

    Downloads

    • Product image

      Image SPB040D | Hager Australia

      Product Image SPB040D

    • Product datasheet

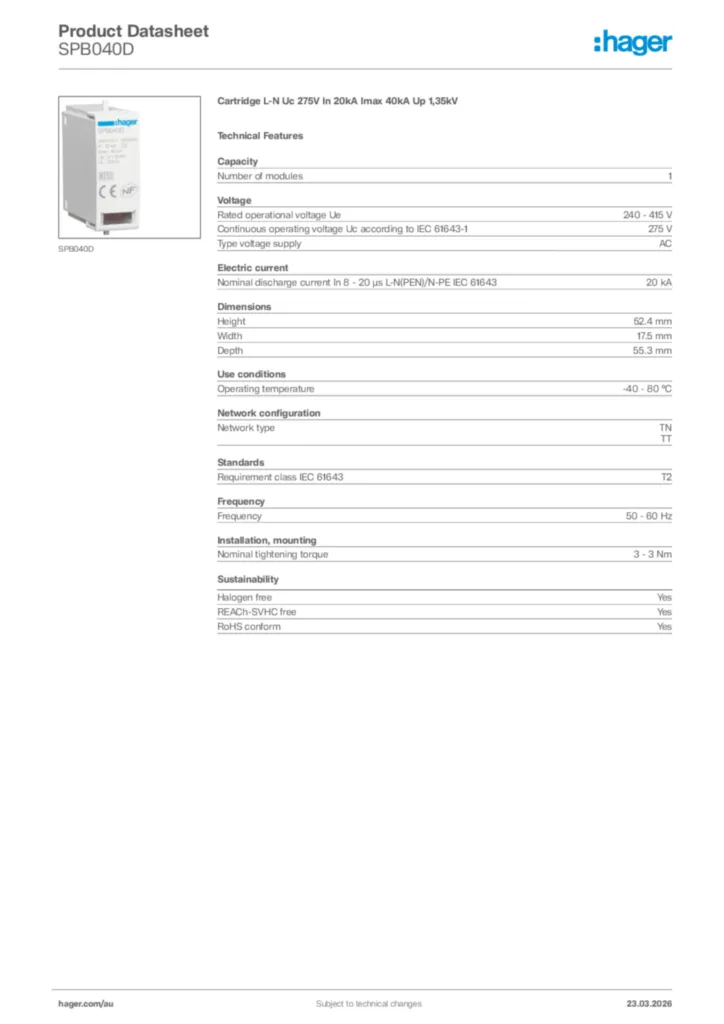

      Image Hager Product data sheet SPB040D | Hager Australia

      Hager Product data sheet SPB040D

      Cartridge L-N Uc 275V In 20kA Imax 40kA Up 1,35kV

      PDF

    • Brochure

      Image Surge Brochure for Australia | Hager Australia

      Surge Brochure for Australia

      Keeping people and property safe. Learn more about our NEW range of surge devices.

      PDF
      934,14 kB

    • Declaration of conformity

      Image Declaration of conformity en-US 2026-07-15 | Hager Australia

      Declaration of conformity en-US 2026-07-15

      PDF
      269,03 kB
