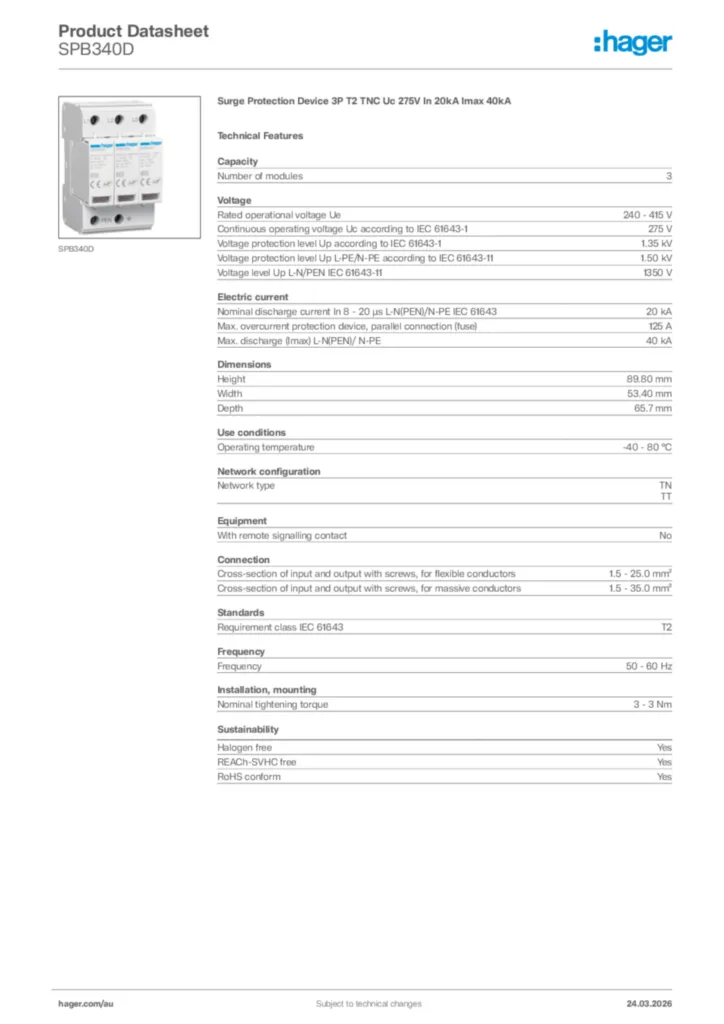

Surge Protection Device 3P T2 TNC Uc 275V In 20kA Imax 40kA SPB340D
EAN
3250615515513
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Configuration
-
Number of modules3
Controls and indicators
-
Indicator lampOptic
Main electrical features
-
Rated operational voltage Ue240 / 415 V
-
Frequency50/60 Hz
-
Nominal discharge current (In) 8/20µs, IEC 61643)L-N(PEN)/ N-PE20 kA
Voltage
-
Maximum continuous operating voltage Uc275 V
-
Voltage protection level Up according to IEC61643-11.35 kV
-
Voltage protection level Up L-PE/N-PE according to IEC61643-111.5 kV
-
Voltage level Up L-N/PEN IEC61643-111.35 kV
Electric current
-
Calibration of the protection upstream125 A
-
Max discharge (Imax) L-N(PEN)/ N-PE40 kA
Dimensions
-
Depth of installed product58.2 mm
-
Height of installed product89.8 mm
-
Width of installed product53.4 mm
Electrical specifications
-
Short-circuit breaking capacity (Isccr)25 kA
Network configuration
-
Network typeTN-C
Installation, mounting
-
Tightening torque3
Connection
-
Connection cross-section of input and output with screws, for massive conductors1.5 / 35 mm²
-
Connection cross section of access and exit with screws, for flexible conductor1.5 / 25 mm²
Standards
-
ApprovalsKEMA
-
Test class IEC61643-11 / VDE0675-6-11T2
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeYes
Use conditions
-
Operating temperature-40…80 °C
