The Hager 1P Type 2 surge protection device safeguards single-phase circuits in TN/TT (TNC) systems against transient overvoltages. Uc 275 V, In 20 kA and Imax 40 kA deliver robust protection with a low Up of 1.35 kV (1.5 kV L‑PE). Rated 240-415 V, 50-60 Hz, it occupies just 1 module to save panel space. Ideal for residential and commercial boards; max backup fuse 125 A. Designed for reliable installation in residential and commercial switchboards,suitable for DIN rail mounting.

EAN

3250615515391

Packaging

1 Piece

Surge Protection Devices (SPDs)

Hager Surge protector 1P Type 2 275V Uc, In 20kA, Imax 40kA, Up 1.35kV, 1 module SPB140D

Accessories
Technical properties
Environmental value
Documentations
More products

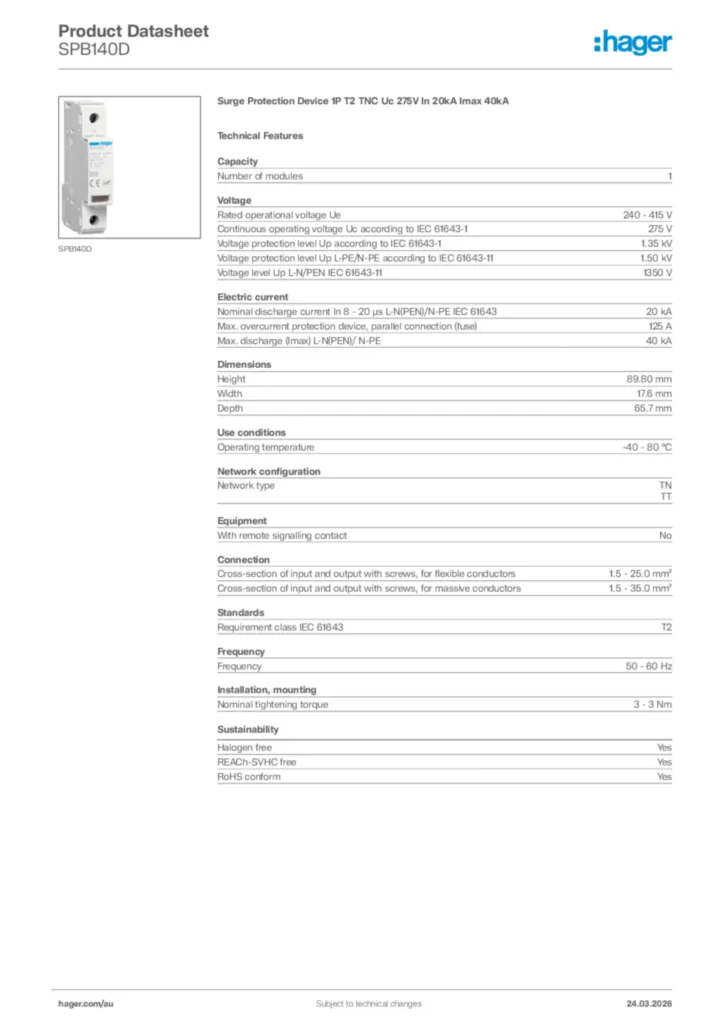

Download the data sheet

Complete your system

Surge protection device for power supply systems 2 products available

Technical properties

Number of modules

1

Rated operational voltage Ue

240 - 415 V
Continuous operating voltage Uc according to IEC 61643-1

275 V
Voltage protection level Up according to IEC 61643-1

1,35 kV
Voltage protection level Up L-PE/N-PE according to IEC 61643-11

1,50 kV
Voltage level Up L-N/PEN IEC 61643-11

1350 V

Nominal discharge current In 8 - 20 µs L-N(PEN)/N-PE IEC 61643

20 kA
Max. overcurrent protection device, parallel connection (fuse)

125 A
Max. discharge (Imax) L-N(PEN)/ N-PE

40 kA

Height

89,80 mm
Width

17,6 mm
Depth

65,7 mm

Operating temperature

-40 - 80 °C

Network type

TN, TT

With remote signalling contact

No

Cross-section of input and output with screws, for flexible conductors

1,5 - 25,0 mm²
Cross-section of input and output with screws, for massive conductors

1,5 - 35,0 mm²
