MCB 4P 10kA/15kA D-10A 4M NDN410A
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliaries contact block 2 products available
-
Shunt release 2 products available
-
Under voltage coil 1 products available
-
Phase separation functions 1 products available
-
Locking interlocking functions 1 products available
-
See more 1 other products available
Complete your system
Technical properties
-
Rated current10 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-215 kA
-
Rated current -25°C12,73 A
-
Rated current at -20°C12,51 A
-
Rated current -15°C12,28 A
-
Rated current -10°C12,05 A
-
Rated current -5°C11,81 A
-
Rated current at 0°C11,57 A
-
Rated current 5°C11,32 A
-
Rated current 10°C11,07 A
-
Rated current 15°C10,81 A
-
Rated current at 20°C10,55 A
-
Rated current 25°C10,28 A
-
Rated current 30°C10 A
-
Rated current 35°C9,61 A
-
Rated current at 40°C9,21 A
-
Rated current at 45°C8,78 A
-
Rated current at 50°C8,33 A
-
Rated current 55°C7,86 A
-
Rated current 60°C7,36 A
-
Rated current 65°C6,82 A
-
Rated current 70°C6,24 A
-
Type of pole4P
-
CurveD
-
Number of modules4
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-110 kA
-
Nominal tightening torque top terminal2,80 - 2,80 Nm
-
Nominal tightening torque down terminal2,80 - 2,80 Nm
-
Rated operational voltage Ue400 - 400 V
-
Type voltage supplyAC
-
Rated insulation voltage Ui500 V
-
Rated impulse withstand voltage Uimp6000 V
-
Frequency50 - 60 Hz
-
Cross-section of input and output with screws, for massive conductors1 - 35 mm²
-
Cross-section of input and output with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for flexible conductors1 - 25 mm²
-
Cross-section of input with screws, for massive conductors1 - 35 mm²
-
Nominal tightening torque2,80 - 2,80 Nm
-
Type of bottom connection for modular devicesbiconnect
-
Type of top connection for modular devicesScrew terminal
-
Ingress Protection (IP) classIP20
-
Degree of pollution according to IEC 60664 / IEC 60947-22
-
Operating temperature-25 - 70 °C
-
Total power loss under IN8,29 W
-
Electric endurance in number of cycles4000
-
Number of mechanical operations20000
-
Top connection alignment for modular devicesAligned terminal
-
Down connection alignment for modular devicesAligned terminal
-
Height83 mm
-
Width70 mm
-
Depth70 mm
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

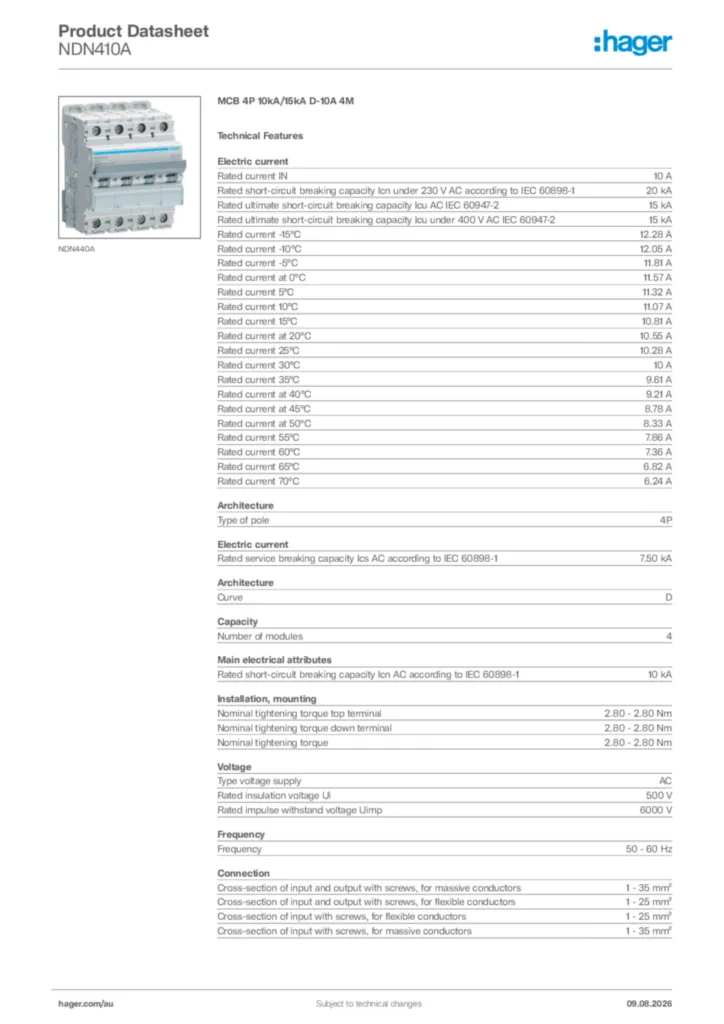

Product data sheet
