MCB 1P 6kA C-32A 1M MSN132R

EAN
3250614310621
Packaging
12

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in

MCB 1P 6kA C-32A 1M

MSN132R

  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products
Download the data sheet

Complete your system

Optional accessories

  • Locking inter­locking func­tions 1 products available
  • Mech­anic accessories for low-­voltage compon­ents 1 products available
  • Under voltage coil 1 products available
  • Shunt release 2 products available
  • Auxil­i­aries contact block 2 products available

Complete your system

  • Locking inter­locking func­tions
  • Mech­anic accessories for low-­voltage compon­ents
  • Under voltage coil
  • Shunt release
  • Auxil­i­aries contact block
  • MZN175

    Padlockable locking kit for MCB, RCCB and RCBO
    EUR 0.00  / *
  • LZ060

    Heat dissipation insert
    EUR 0.00  / *
  • MZ206

    Under voltage release 230V AC
    EUR 0.00  / *
  • MZ204

    Shunt trip 24-48V AC 12-48V DC
    EUR 0.00  / *
  • MZ203

    Shunt trip 230-415V AC 110-130V DC
    EUR 0.00  / *
  • MZ202

    Alarm contact 1C+1O 6A 240V AC
    EUR 0.00  / *
  • MZ201

    Auxiliary contact 1C+1O 6A 240V AC
    EUR 0.00  / *

Technical properties

Elec­tric current
  • Rated current
    32 A
  • Rated short-­cir­cuit breaking capa­city Icn under 230 V AC according to IEC 60898-1
    6 kA
  • Rated current -15°C
    40,2 A
  • Rated current -10°C
    39,6 A
  • Rated current -5°C
    38,5 A
  • Rated current at 0°C
    37,7 A
  • Rated current 5°C
    36,9 A
  • Rated current 10°C
    36,1 A
  • Rated current 15°C
    35,2 A
  • Rated current at 20°C
    34,4 A
  • Rated current 25°C
    33,6 A
  • Rated current 30°C
    32 A
  • Rated current 35°C
    32 A
  • Rated current at 40°C
    31,1 A
  • Rated current at 45°C
    30,3 A
  • Rated current at 50°C
    30 A
  • Rated current 55°C
    28,7 A
  • Rated current 60°C
    27,8 A
  • Rated current 65°C
    27 A
  • Rated current 70°C
    26,2 A
Archi­tec­ture
  • Type of pole
    1P
  • Curve
    C
Capa­city
  • Number of modules
    1
Install­a­tion, mounting
  • Nominal tight­ening torque top terminal
    2,80 - 2,80 Nm
  • Nominal tight­ening torque down terminal
    2,80 - 2,80 Nm
  • Nominal tight­ening torque
    2,80 - 2,80 Nm
  • Type of bottom connec­tion for modular devices
    bicon­nect
  • Type of top connec­tion for modular devices
    Screw terminal
  • 360° mounting posi­tion possible
    Yes
Main elec­trical attrib­utes
  • Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1
    6 kA
Voltage
  • Rated oper­a­tional voltage Ue
    240 - 415 V
  • Type voltage supply
    AC
  • Rated insu­la­tion voltage Ui
    500 V
  • Rated impulse with­stand voltage Uimp
    4000 V
Frequency
  • Frequency
    50 - 60 Hz
Connec­tion
  • Cross-sec­tion of input and output with screws, for massive conductors
    1 - 35 mm²
  • Cross-sec­tion of input and output with screws, for flex­ible conductors
    1 - 25 mm²
  • Cross-sec­tion of input with screws, for flex­ible conductors
    1 - 25 mm²
  • Cross-sec­tion of input with screws, for massive conductors
    1 - 35 mm²
  • Cross-sec­tion flex­ible conductor
    1 - 25 mm²
  • Cross-sec­tion rigid conductor
    1 - 35 mm²
Safety
  • Ingress Protec­tion (IP) class
    IP20
Use condi­tions
  • Degree of pollu­tion according to IEC 60664 / IEC 60947-2
    2
  • Class of energy limit­a­tion I²t
    3
  • Air humidity protec­tion
    For all climates
  • Oper­ating temper­ature
    -25 - 70 °C
Power
  • Total power loss under IN
    4,35 W
Connectivity
  • Type of connec­tion
    Screw terminal
  • Top connec­tion align­ment for modular devices
    Aligned terminal
  • Down connec­tion align­ment for modular devices
    Aligned terminal
Dimen­sions
  • Height
    83 mm
  • Width
    17,50 mm
  • Depth
    70 mm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

Hager REACH declaration MSN132R
PDF
Hager RoHS report MSN132R
PDF

Downloads

  • Product image

    Image MSN132R | Hager Australia

    Product Image MSN132R

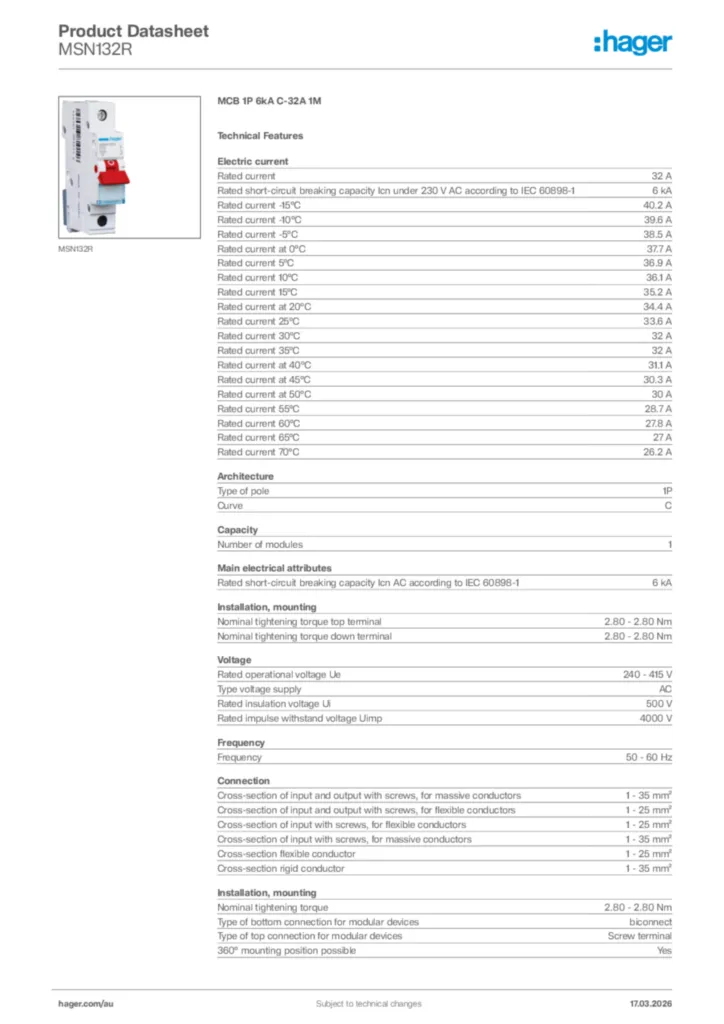

  • Product datasheet

    Image Hager Product data sheet MSN132R | Hager Australia

    Hager Product data sheet MSN132R

    MCB 1P 6kA C-32A 1M

    PDF
More documentation
