MCB 3P 6kA D-50A 3M MDN350P

EAN

3250614353680

Packaging

4

Phase out product: please contact your electrical wholesaler for availability

Follow-up products :

NDN350A

Accessories
Technical properties
Environmental value
Documentations

Download the data sheet

Complete your system

Locking interlocking functions 1 products available
Phase separation functions 1 products available
Terminal cover 1 products available
Mechanic accessories for low-voltage components 1 products available
Under voltage coil 1 products available
Shunt release 2 products available

Technical properties

Rated current

50 A
Rated current -15°C

60,86 A
Rated current -10°C

59,75 A
Rated current -5°C

58,62 A
Rated current at 0°C

57,47 A
Rated current 5°C

56,29 A
Rated current 10°C

55,09 A
Rated current 15°C

53,86 A
Rated current at 20°C

52,61 A
Rated current 25°C

51,32 A
Rated current 30°C

50 A
Rated current 35°C

48,48 A
Rated current at 40°C

46,91 A
Rated current at 45°C

45,29 A
Rated current at 50°C

43,60 A
Rated current 55°C

41,85 A
Rated current 60°C

40,02 A
Rated current 65°C

38,11 A
Rated current 70°C

36,09 A

Type of pole

3P
Curve

D

Number of modules

3

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Nominal tightening torque top terminal

2,80-2,80 Nm
Nominal tightening torque down terminal

2,80-2,80 Nm
Nominal tightening torque

2,80 - 2,80 Nm
Type of bottom connection for modular devices

biconnect
Type of top connection for modular devices

Screw terminal
360° mounting position possible

Yes

Rated operational voltage Ue

415-415 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

6000 V

Frequency

50 - 60 Hz

Cross-section of input and output with screws, for massive conductors

1-35 mm²
Cross-section of input and output with screws, for flexible conductors

1-25 mm²
Cross-section of input with screws, for flexible conductors

1-25 mm²
Cross-section of input with screws, for massive conductors

1-35 mm²

Ingress Protection (IP) class

IP20
Grid distance

60 mm

Degree of pollution according to IEC 60664 / IEC 60947-2

2
Air humidity protection

95%/55°C
Operating temperature

-25 - 70 °C

Total power loss under IN

15,40 W

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

84,60 mm
Width

52,50 mm
Depth

70 mm

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

MCB 1P 6kA B-16A, 1 module

PDF

67,85 MB

Hager REACH declaration MDN350P

PDF

Hager RoHS report MDN350P

PDF

Downloads

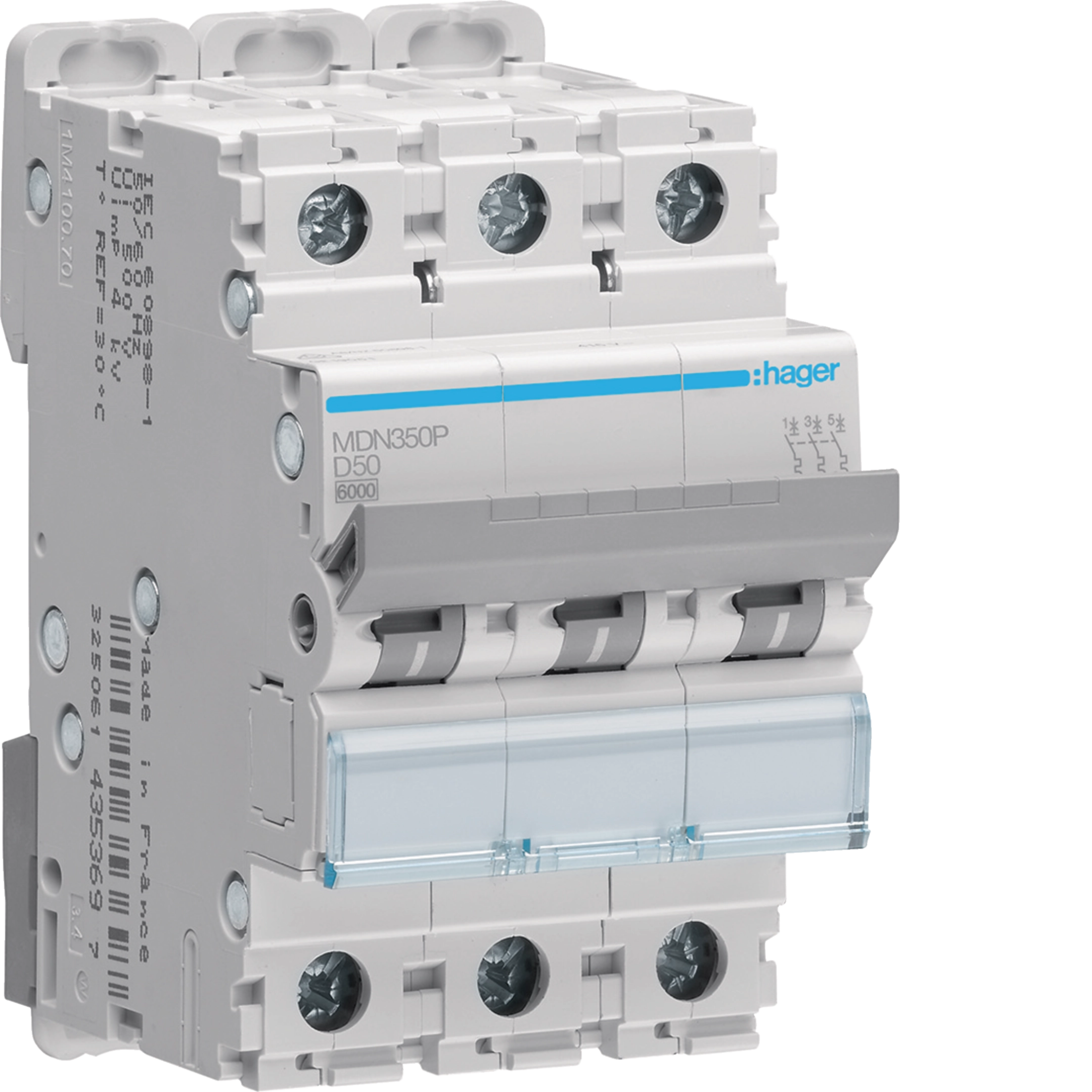

Product image

Product Image MDN350P

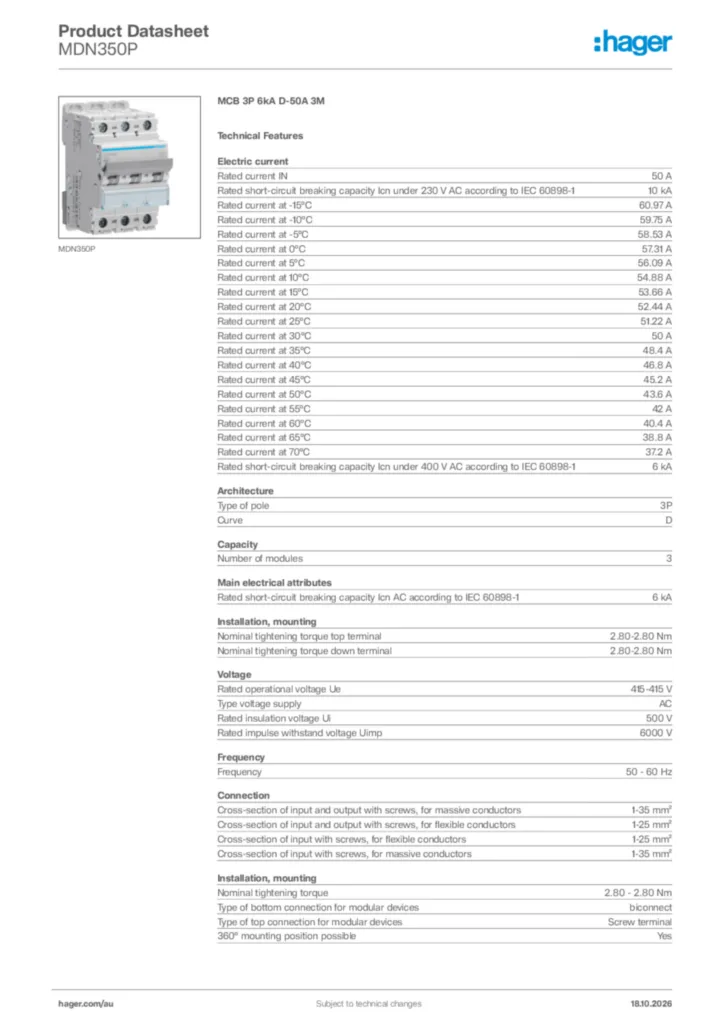

Product datasheet
